aliva shotcrete machinesmall shotcrete machine/shotcrete machine for sale :
1. Working by hose pump, pipeline broad.
2. Measurable transportation, no refluence, transportation or spraying steady
3. Suction forceful.
4. cleaning convenient.
5. Maintain convenient, low consume for working
6. Externality small
Automatic Shotcrete Machine :
Model | PZ-3 | PZ-5 | PZ-7 |
Capacity (m3/h) | 3.5 | 5 | 7 |
Max. Conveying Distance (Horizontal,Vertical m) | 200,20 | 200,20 | 200,20 |
Use material ratio(Cement/Sand) | 2001-3-5 | 2001-3-5 | 2001-3-5 |
Use material water-cement ratio | ≤0.4 | ≤0.4 | ≤0.4 |
Max. Aggregate Diameters (mm) | 20 | 20 | 20 |
Feeding pipe inner diameters(mm) | 38 | 51 | 64 |
Rotor Diameter(mm) | 350 | 438 | 480 |
Working pressure (MPa) | 0.4-0.6 | 0.4-0.6 | 0.4-0.6 |
Air consumption (m3/min) | 3-4 | 7-8 | 8-10 |
Motor Model | Y112M-6-3KW | Y132-6-5.5KW | Y132-6-7.5KW |
Voltage(V) (according to customer"s special requirement) | 380,660,etc | 380,660,etc | 380,660,etc |
Overall size (mm) | 1040*550*940 | 1280*700*1280 | 1500*700*1280 |
Overall weight (kg) | 260 | 600 | 700 |

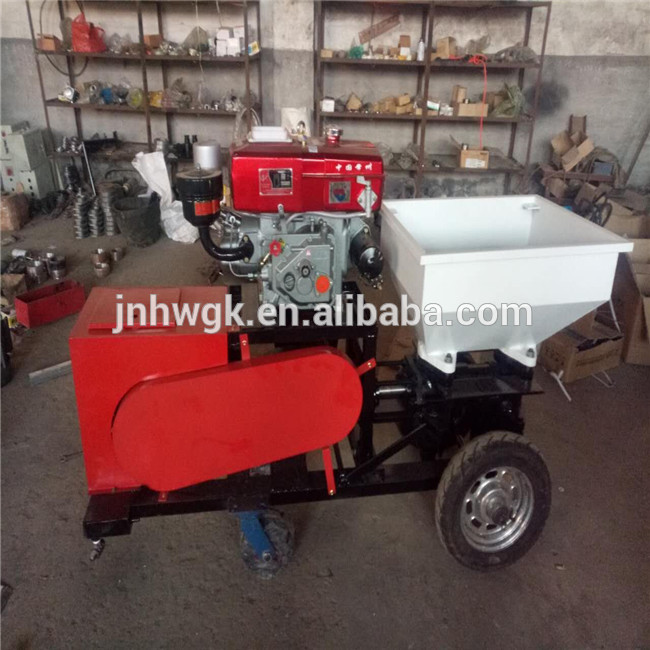

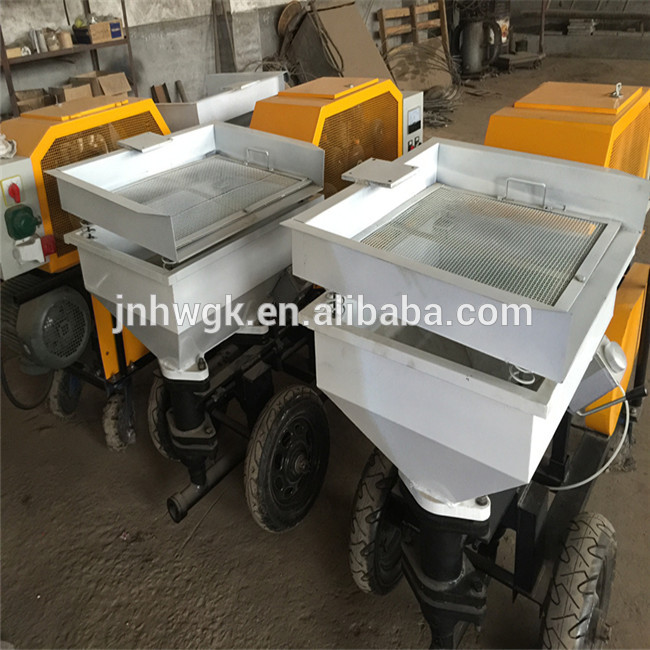

Sample pic:
The construction site :
clients inspection factory:
history order:
certificates:
