mining underground tunnel fiberglass rock bolt :
Product Introduction :
Feature
Rod density 1.6 - 2.1g / m³
high specific strength , tensile strength higher than 20% of the steel bars of the same specifications
light weight , convenient work surface artificial transportation
corrosion
flame retardant , antistatic
easy to cut and will not produce sparks
bond strength and anchorage strong reinforcement
Advantages:
1.Light weight,it is only 1/4 the weight of steel with the same size
2.Tensile strength (ability to resist stretching),it surpasses ordinary steel
3.Anti-erosion,it can strongly adapt to the environment,and no emmiting the electromagnetic wave
4.Can meet the requiement of the permanent supporting
5.High strenth:it is screw thread and anchored force strength
6.For the supporting requirements,it can be adjusted the length
7.Strong affinity for the concrete and capsule resin
Technology Parameters :
| Diameter | Length | Plate size | Tensile strenth | Ultimate load | Working Load |
| (mm) | (mm) | (mm) | (MPa) | (KN) | (KN) |
| 16 | 1000~1800 | 120×120×6 | ≥500 | 80 | ≥49 |
| 18 | 1200~2000 | 120×120×10 | ≥500 | 100 | ≥58.8 |
| 20 | 1400~2000 | 150×150×8 | ≥500 | 120 | ≥78.6 |
| 22 | 1600~2100 | 150×150×10 | ≥500 | 140 | ≥80 |
| 24 | 1800~2200 | 150×150×10 | ≥500 | 160 | ≥88.2 |

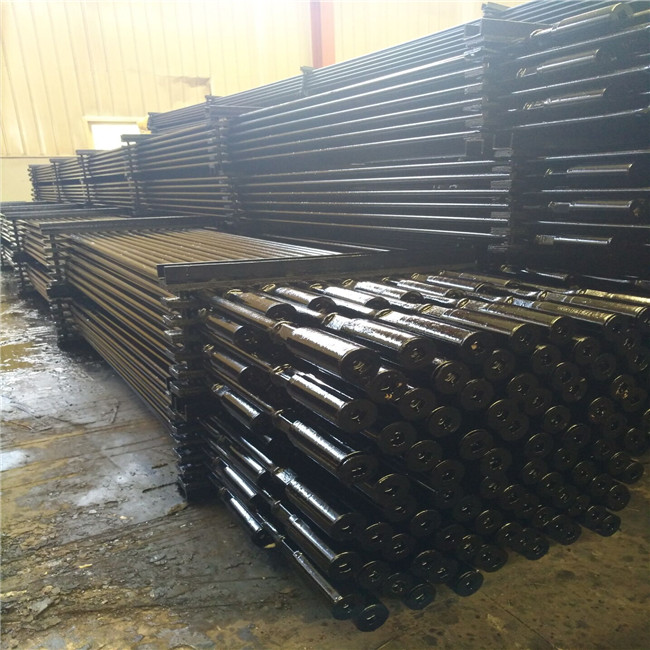

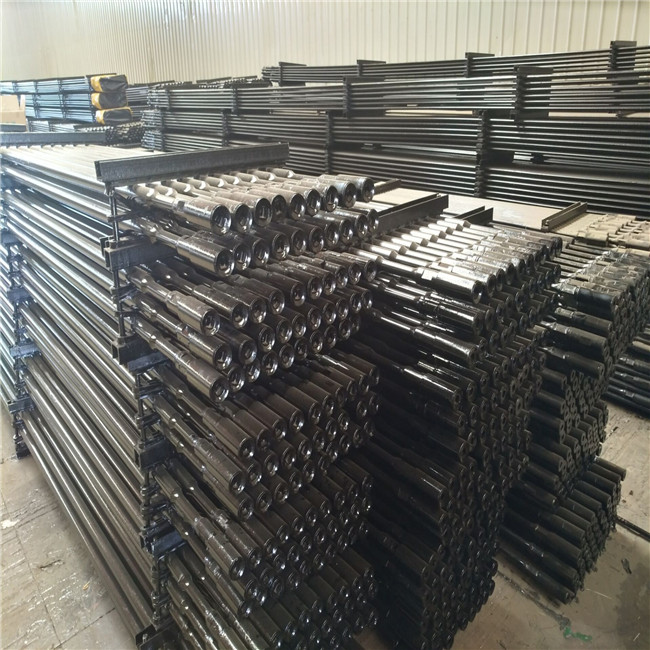

Picture :
Good cooperation
Transaction history
Quality certificate
