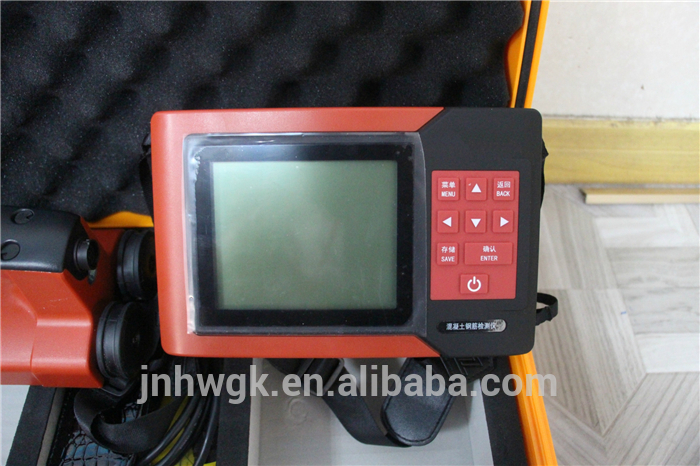

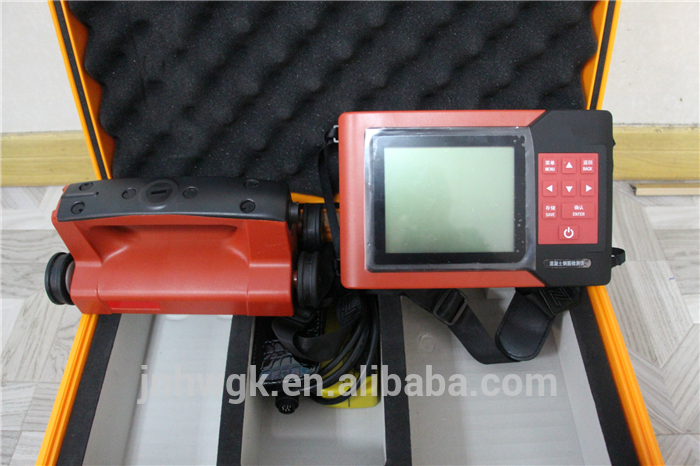

concrete rebar 3D scanner
Number | Item | SPEC | |
1 | Bar diameter application range(mm) | Φ6 – Φ50 | |
2 | maximum value permissible error of Bar diameter | ≤±1 | |
3 | Protective layer thickness measuring range |
| |
The first measuring range (mm) | 6 - 90 | ||
The second measuring range (mm) | 7-180 | ||
4 | The maximum error of reinforced protective layer thickness test value |
| |
The first measuring range (mm) | The second measuring range (mm) |
| |
6 - 59 | 7 - 79 | ≤±1 | |
60 - 69 | 80 - 119 | ≤±2 | |
70 -90 | 120 - 180 | ≤±4 | |
5 | Work environment condition |
| |
Work temperature ℃ | -10 - +40 | ||
relative humidity RH | < 90% | ||
6 | power supply mode | Alkaline cell X 6 | |
