Home > Products > YT24, YT27, YT28 Manufacturer Portable Pneumatic Rock Drill with air legs

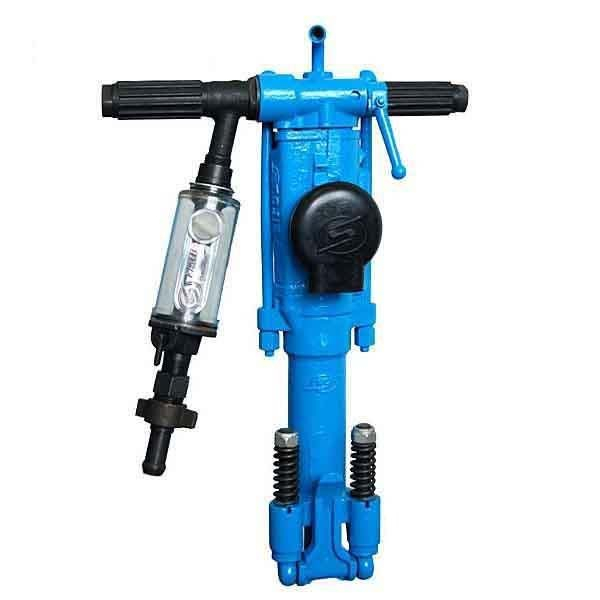

YT24, YT27, YT28 Manufacturer Portable Pneumatic Rock Drill with air legs

Click on the image to view the original image

Product：	views：2YT24, YT27, YT28 Manufacturer Portable Pneumatic Rock Drill with air legs
Branch：	HW
Type：	Core Drilling Rig
Unit Price：	Negotiated
Min.Order：
Supply：
Delivery：	Shipment within days since the date of payment
Valid until：	Long Term
Updated on：	2019-10-16 20:35

Product Details

Overview

Quick Details

Condition:: New

Type:: Core Drilling Rig

Power Type:: pneumatic

Place of Origin:: Shandong, China

Brand Name:: HW

Model Number:: YT

Usage:: rock drilling

Dimension(L*W*H):: 746*315*229mm

Weight:: 27KG

Certification:: ISO9001

Dimension(L*W*H)::: 678*228*184

Drilling depth::: 0.5m

Type::: Pneumatic Rock Drill

Bore dia::: 34-42mm

No-Load Speed::: 250r/min

Inner diameter of air pipe::: 25mm

Operating air pressure::: 0.4-0.63MPa

Diameter of cylinder::: 82mm

Inner diameter of water pipe::: 13mm

After-sales Service Provided:: No overseas service provided

Warranty:: 1 Year

Supply Ability

Supply Ability:: 1000 Piece/Pieces per Week

Packaging & Delivery

Packaging Details: Standards export packing

Port: QINGDAO SHANGHAI TIANJIN

Lead Time:: Within 3 days receiving payment

Pneumatic Rock Drill

Type	7655	7665	YT24	YT27	YT28	YT29
Weight	24kg	25.5 kg	24 kg	27 kg	28 kg	26.5kg
Total length	628mm	550 mm	678 mm	668 mm	661 mm	659mm
Using air pressure	0.63Mpa	0.63 Mpa	0.63 Mpa	0.63 Mpa	0.63 Mpa	0.63Mpa
Cylinder bore	76mm	76 mm	70 mm	80 mm	80 mm	82mm
Tracheal diameter	25mm	25 mm	25 mm	25 mm	25 mm	25mm
Pipe diameter	13mm	13 mm	13 mm	13 mm	13 mm	13mm
The hole diameter	34-42mm	34-42 mm	34-42 mm	34-42 mm	34-42 mm	34-45 mm
Drill hole depth	5m	5 m	5 m	5 m	5 m	5m
Shank specifications	22*108	22*108	22*108	22*108	22*108	22*108
