Home > Products > XY-1 Core Drilling Machine Mining,Core Drilling Rig 100m,Mini Portable Diamond Core Drill Rig
XY-1 Core Drilling Machine Mining,Core Drilling Rig 100m,Mini Portable Diamond Core Drill Rig
Click on the image to view the original image
Product： views：3XY-1 Core Drilling Machine Mining,Core Drilling Rig 100m,Mini Portable Diamond Core Drill Rig
Branch： HWGK
Type： Core Drilling Rig, ,Core Drilling Rig 100m,Mini Portable Diamond Core Drill Rig
Unit Price： Negotiated
Min.Order：
Supply：
Delivery： Shipment within days since the date of payment
Valid until： Long Term
Updated on： 2019-10-16 20:35
  Negotiated
Product Details
Overview
Quick Details
Condition:
New
Type:
Core Drilling Rig, ,Core Drilling Rig 100m,Mini Portable Diamond Core Drill Rig
Power Type:
Electric
Place of Origin:
Shandong, China
Brand Name:
HWGK
Model Number:
XY-1
Usage:
Coal
Voltage:
380v
Power(W):
59KW
Dimension(L*W*H):
2500*900*1200mm
Weight:
1600KG
Certification:
ISO CE
Drill rod caliber::
50mm
driling depth::
100m
Drilling angle::
90-65
Maximum open hole caliber::
300mm
End hole caliber::
75mm
Usage::
Water Well
Power Type::
electric / diesel
After-sales Service Provided:
Overseas service center available
Warranty:
1year
Supply Ability
Supply Ability:
100 Piece/Pieces per Month ,Core Drilling Rig 100m,Mini Portable Diamond Core Drill Rig
Packaging & Delivery
Packaging Details
nonpacking
Port
shanghaiqingdao dalian shenzhen ningbo
Lead Time:
Within 3 days receiving payment

XY-1  Core Drilling Machine Mining,Core Drilling Rig 100m,Mini Portable Diamond Core Drill Rig



Product Description



     Model

Diamond Core Drilling Rig(XUL-100)

Drilling depth( m)

100

Drilling rod diameter.(mm)

Φ42

 Head angle range

360

Movable cylinder stroke (mm)

300

Spindle speed( r/min)

 144 264 590 1083

Spindle hole diameter( mm)

Φ54

Spindle output torque max(N.M)

800

Spindle stroke(mm)

370

Lifting power max( KN)

30

Driving force max(KN)

23

Lifting speed( m/s)

0.36 0.7 1.49 2.9

Lifting capacity(single) max(KN)

10

Steel wire rope diameter (mm)

11

Mode of chuck

Hand lever chuck

 Weight(power unit excepted)(Kg)

550

Overall dimensions(mm)

1200*650*1300

Diesel engine model

Zs1100 ( 12.1KW)

 Electromotor model

Y160M-4 ( 11KW)

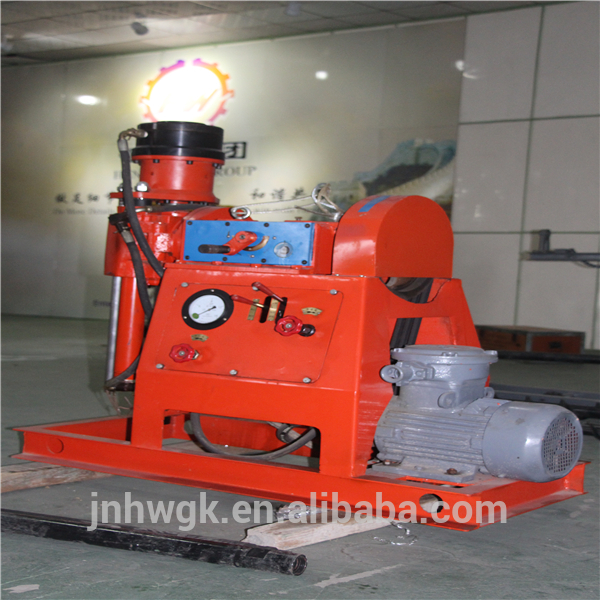

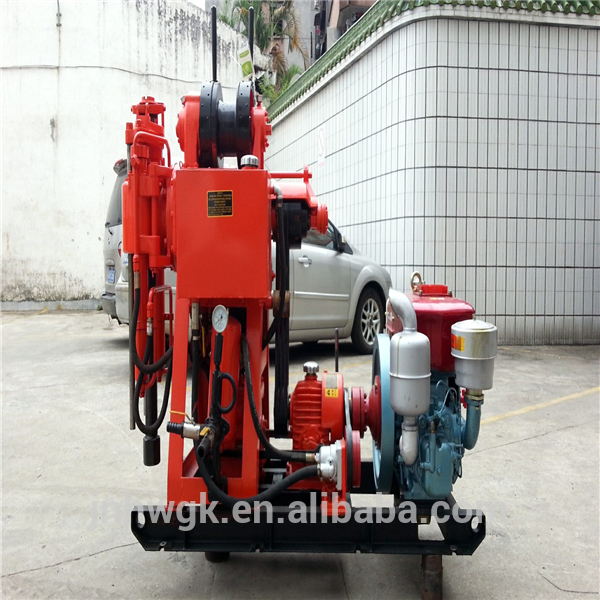

XY-1 mining core drilling machine picture
