Home > Products > Downhole drill/Hydraulic hole drill/Hydraulic downhole drilling rig/drillmaster
Downhole drill/Hydraulic hole drill/Hydraulic downhole drilling rig/drillmaster
Click on the image to view the original image
Product： views：3Downhole drill/Hydraulic hole drill/Hydraulic downhole drilling rig/drillmaster
Branch： HWGK
Type： Downhole drill/Hydraulic hole drill/Hydraulic downhole drilling rig/dr
Unit Price： Negotiated
Min.Order：
Supply：
Delivery： Shipment within days since the date of payment
Valid until： Long Term
Updated on： 2019-10-16 20:35
  Negotiated
Product Details
Overview
Quick Details
Condition:
New
Type:
Downhole drill/Hydraulic hole drill/Hydraulic downhole drilling rig/dr
Power Type:
Electric/pneumatic
Place of Origin:
Shandong, China
Brand Name:
HWGK
Model Number:
HQZ150
Usage:
Water Well
Voltage:
Diesel Engine Driven
Power(W):
15KW
Dimension(L*W*H):
2.75*0.95*1.6m
Weight:
500kg
Certification:
ISO
drilling depth::
200m
cylinder stroke::
360mm
Name:
Downhole drill
Spindle output torque max::
2140nN.M
Voltage::
220V
Weight::
750KG
drilling rod dia.::
50mm
Spindle stroke::
500mm
Power(W)::
15KW
Spindle hole diameter::
65mm
After-sales Service Provided:
No overseas service provided
Warranty:
1 Year
Supply Ability
Supply Ability:
100 Set/Sets per Week
Packaging & Delivery
Packaging Details
wooden box
Port
QINGDAO SHANGHAI TIANJING
Lead Time:
Within 3 days receiving payment
Video Description

Downhole drill



Product Description



Drilling depth( m)

200

Drilling rod diameter.(mm)

  Φ50

 Head angle range

360

Movable cylinder stroke (mm)

360

Spindle speed( r/min)

  Positive rotation rate:60 150 240 340 550 830

Reverse rotation rate: 35 85 135 195 330 480

Spindle hole diameter( mm)

Φ65

Spindle output torque max(N.M)

2140

Spindle stroke(mm)

500

Lifting power max( KN)

50

Driving force max(KN)

37

Lifting speed( m/s)

0.6 2.3 3.4

Lifting capacity(single) max(KN)

20

Steel wire rope diameter (mm)

11

Mode of chuck

Full-hydraulic chuck or ball-type chuck

 Weight(power unit excepted)(Kg)

 750

Overall dimensions(mm)

1860*800*1400

Diesel engine model

Zs1110 ( 14.7KW)

 Electromotor model

Y160L-4 ( 15KW)

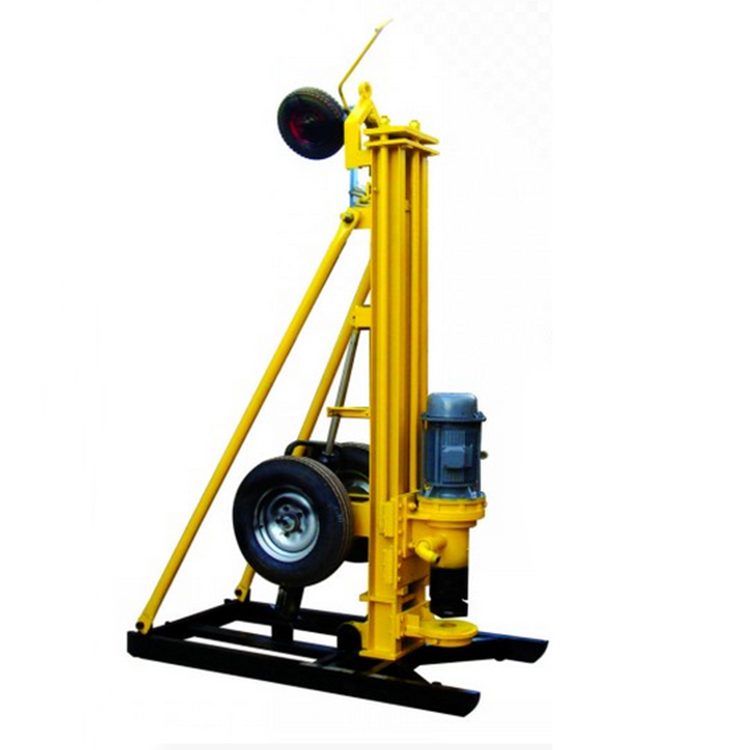

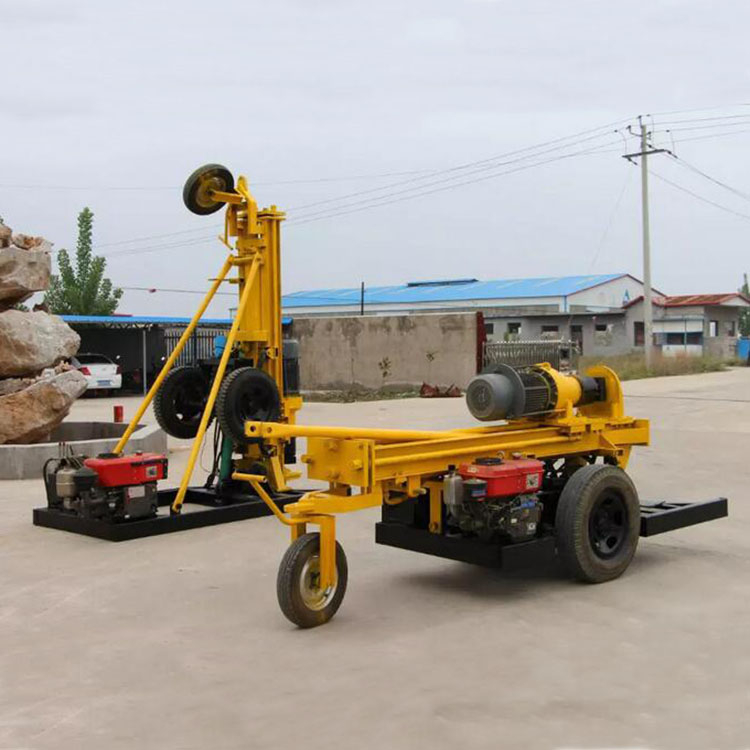

Downhole drill   picture
