Product Description

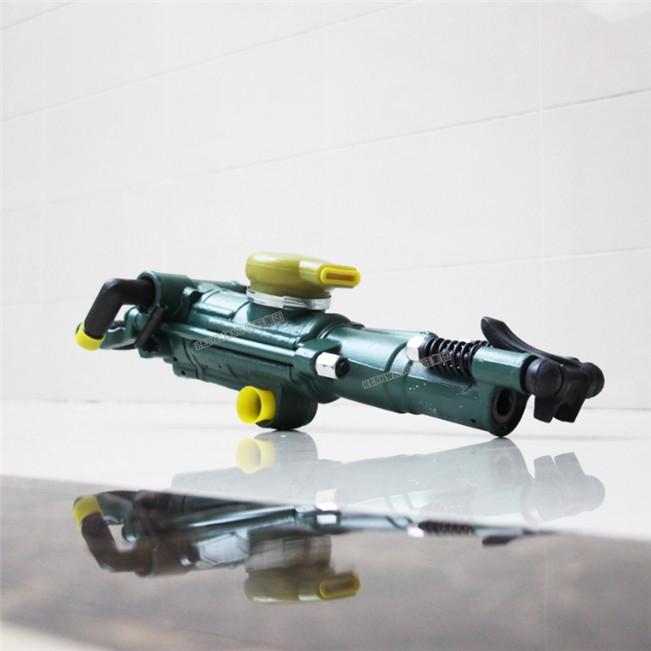

Air compressor hammer hydraulic crawler rock drill
Type | Y8 | Y18 | Y19 | Y26 |
weight | 8 Kg | 18 Kg | 19 Kg | 26Kg |
length | 400 mm | 550 mm | 600 mm | 650mm |
Diameter of Cylinder | 32 mm | 58 mm | 65 mm | 65 mm |
travel of piston
| 27 mm | 45 mm | 54 mm | 70 mm |
operation pressure | 0.4-0.63Mpa | 0.4-0.63Mpa | 0.4-0.63Mpa | 0.4-0.63Mpa |
internal diameter of air pipe | 19mm | 19mm | 19mm | 19mm |
internal diameter of water pipe | 13mm | 13mm | 13mm | 13mm |
Size of shank | 22*108mm | 22*108mm | 22*108mm | 22*108mm |
gas powered atlas copco air leg rock drill
