Features of XY-8 used rotary drilling rig
a. XY-3 diamond core drilling rig adopts CG140 model auto transmission, has 10 rotation speeds and easonable speed range, with eight forward roation gears and two reverse rotation gears, high speed, strong stroke and wide scope of application.
b. Large engine power and two reverse rotation gears, can easily solve the drilling work accident.
c. The operation handles are fixed together in reasonable layout to make it more convenient for workers to operate the machine.
d. Equipped with normally closed hydraulic chuck, operation is flexible and reliable
e. Spindle and hoist can be operated separately.
f. Spindle has big inner diameter, able to use big hexagonal drilling rod.
Parameters of XY-8 used rotary drilling rig
Drill Rod Varieties | Drill Rod Type | Drill Depth | |
Drill Rod Made In China | Φ50X4.75 | 2200m | |
Φ50X5 | 2000m | ||
Φ60X6 | 1450m | ||
Φ71X5 | 1650m | ||
Φ73X7 | 1000m | ||
Φ89X5 | 1300m | ||
Φ89X10 | 600m | ||
DCDMA (Diamond Core Drill Association) DrillRod | Thickened Inner Drill Rod | BW Drill Rod | 2200m |
NWD rill Rod | 1700m | ||
HWD rill Rod | 1150m | ||
WireLine Coring DrillRod | BQ Drill Rod | 2200m | |
NQ Drill Rod | 1700m | ||
HQ Drill Rod | 1150m | ||
PQ Drill Rod | 800m | ||
BCQ Drill Rod | 2500m | ||
NCQ Drill Rod | 2000m | ||
HCQ Drill Rod | 1550m | ||

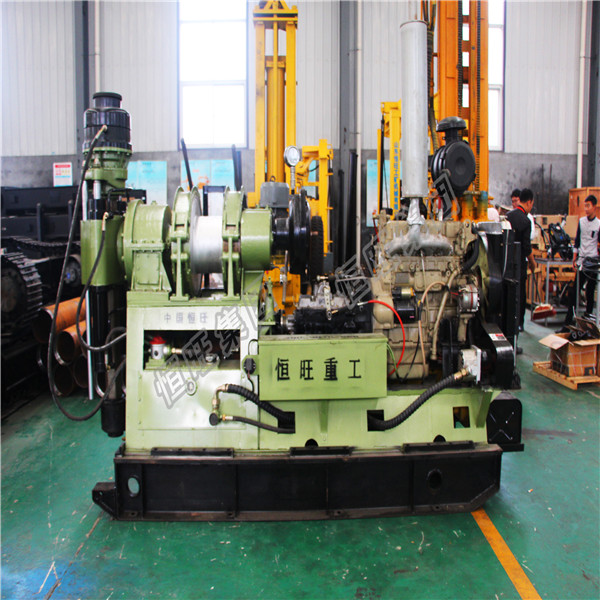

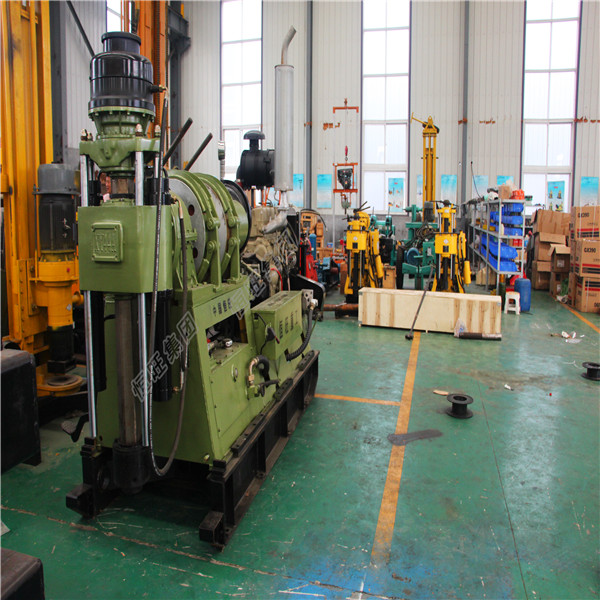

Pictures of XY-8 used rotary drilling rig
