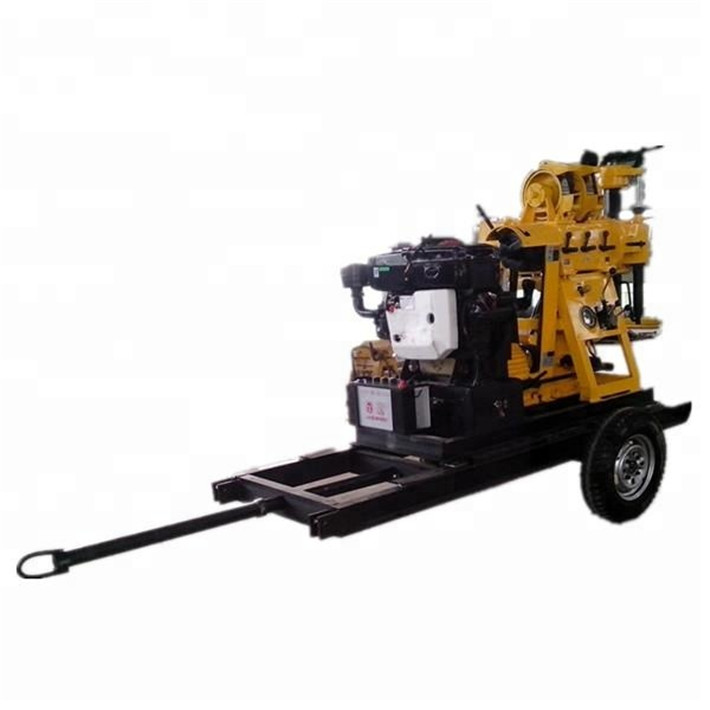

HW-130 water well drilling rig easy transport drilling rig
1. Features
a. Keeping bracket is installed on the hosit to form a double wheel support structure, able to withstand strong blow
b. Vertical box are fixed by four groups of bearings to ensure that the rotary machine has sufficient rigidity to overcome gravel layer and other complex geological conditions.
c. the machine is equipped with national patent technology---taper clutch, with charactristics of strong transmission troque, easy operation and free maintenance.
d. 53 x 59 drilling rod adopted, high rigidity and strong delivery torque.
Product Parameter:
| Unity machine parameter | |
| Drilling depth | 10-130m |
| Maximum open hole caliber | 260mm |
| End hole caliber | 75mm |
| Drill rod caliber | 50mm |
| Drilling angle | 90~75 |
| Drill weight (No include power) | 510 560kg |
| Unity machine dimensions | 2.5×1×1.3 2.5×0.9×1.3m |
| Spindle | |
| spindle speed | 142,285,570r/min |
| Spindle stroke | 450mm |
| Hoist | |
| Max.single line hoisting capacity | 960kg |
| Single line lifting speed | 0.41,0.82,1.64m/s |
| Tightrope caliber | 27m |
| Mud pump of HZ-130YY model drilling rig | |
| Type | Horizontal single urn twin-action |
| Displacement | 95/77L/min |
| Diesle engine | Model s1110 18HP |
| Electric motor | Y160M—4 11kw 1440r/min |
| Maximum pressure | 1.2Mpa |
| Work pressure | 0.7Mpa |
| Water inlet caliber | 30mm |
| Water to exit caliber | 25mm |
| Triangle conveyer belt | B1575mm |
Real product show
