Home > Products > MINER cap lamp led mining caplamp LED Wireless Mining Lamp
MINER cap lamp led mining caplamp LED Wireless Mining Lamp
Click on the image to view the original image
Product： views：3MINER cap lamp led mining caplamp LED Wireless Mining Lamp
Branch： HWGK
Type： Headlamps
Unit Price： Negotiated
Min.Order：
Supply：
Delivery： Shipment within days since the date of payment
Valid until： Long Term
Updated on： 2019-10-16 20:35
  Negotiated
Product Details
Overview
Quick Details
Place of Origin:
Shandong, China
Brand Name:
HWGK
Model Number:
kl5lm miner cap lamp mining lighting
Usage:
Mining, tunnel engineering, electric power communication at night
Power Source:
mining light is rechargeable battery
Lighting Period (h):
>12
Battery Type:
Lithium Ion
Certification:
C-tick, CCC, CE, CQC, GOST, GS
IP Rating:
IP65
Lamp Body Material:
PVC
Base Type:
G9
Light Source:
LED
voltage:
3.7V
current:
5AH
lighting time:
more than 20 hours
weight:
500g
certificate:
ISO CE SGS
color:
red or orange
service:
3 years
delivery time:
3 days
model:
KL5LM
source:
LED
Type:
Headlamps
Warranty(Year):
1
Lamp Power(W):
3.7
LED Light Source:
LED
Supply Ability
Supply Ability:
1000 Set/Sets per Week mining light
Packaging & Delivery
Packaging Details
carton box
Port
QINGDAO
Lead Time:
within 3 days

LED mining lamp,mining head light,miner head light

1. Features

1.Safety: with China national explosive-proof certificate Exs I and CE certificate,

can be used safely in various flammable and explosive places

2.Light Source: ultra-high-brightness dual LED, super efficacy and energy-saving

3.Rechargeable Battery:polymer lithium-ion battery,environmental-friendly

4.Intelligent protection:with overcharge& over-discharge resistant function and

short circuit protection device

5.Usage:can be directly installed in various lamp miner’s lamp charger brackets,

simple and handy for using

2. Applications

1. Mining light is portable, the lamp head and battery part are connected by cable"s upper

    cover to be a whole miner"s lamp. Lamp head could be fixed on cap lamp.

2. A LED main light source is installed in, KL4LM(A) or KL5LM(A)  several LED auxiliary light

    sources.Clockwise turn on switch, main source and auxiliary sources illuminate alternatively.

3. This battery case is designed with closed wear-ring, convenient for carrying.

4. This lamp head is designed with charging device, matching with charging set, convenient

    and reliable for charging.

5. PTC self-protection is set between battery group, and reusable short circuit protective

    device is set on cable"s battery end. Thus, this is very safe and reliable.

Product Parameter:



Item

Specification

Battery style

Ferric phosphate lithium

Rated capacity

1.2Ah

Rated voltage

3.2V

Lighting time

more than 12h

LED main light source

Working rated current

less than 0.1A

Length of Life

more than 30000h

Max Luminance
(1m apart from the lamp)

When lighting begins

more than 2000lx

After lighting for 11h

more than 1000 lx

Sub-lighting source rated power

0.4w

Length of life

more than 2years

Charging voltage

(5-8)V

Charging time

less than 10h

Explosion protection

Exs I

Protection grade

IP54

Dimensions of headpiece

Φ71*75 mm

Weight

0.18kg

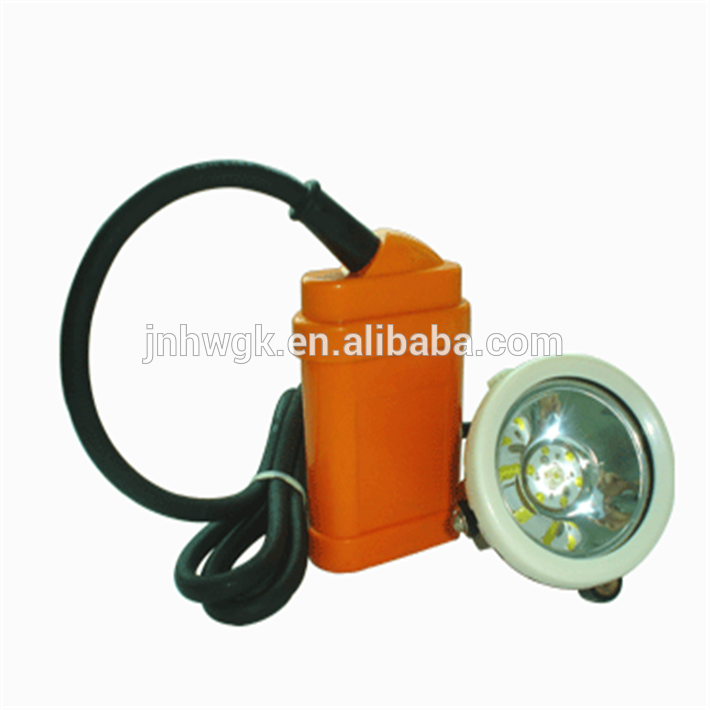

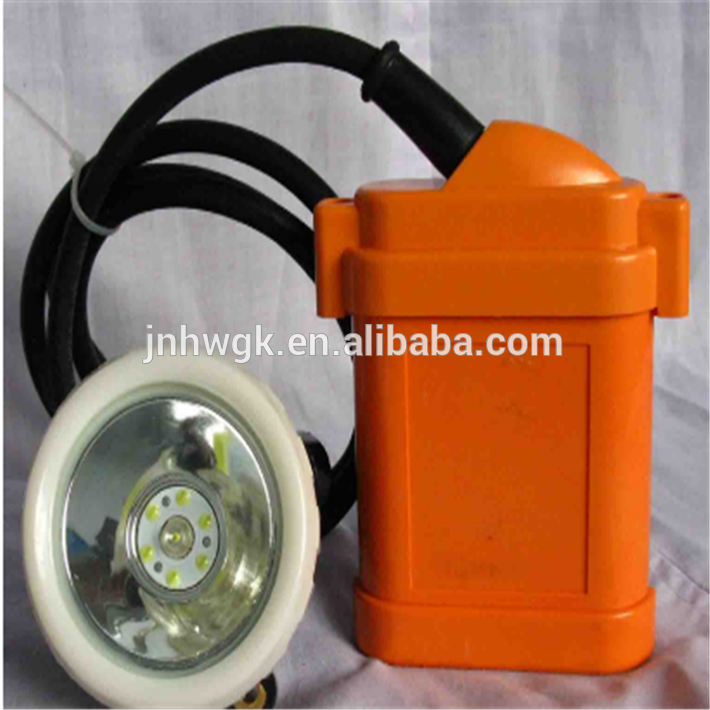

Real product  show
