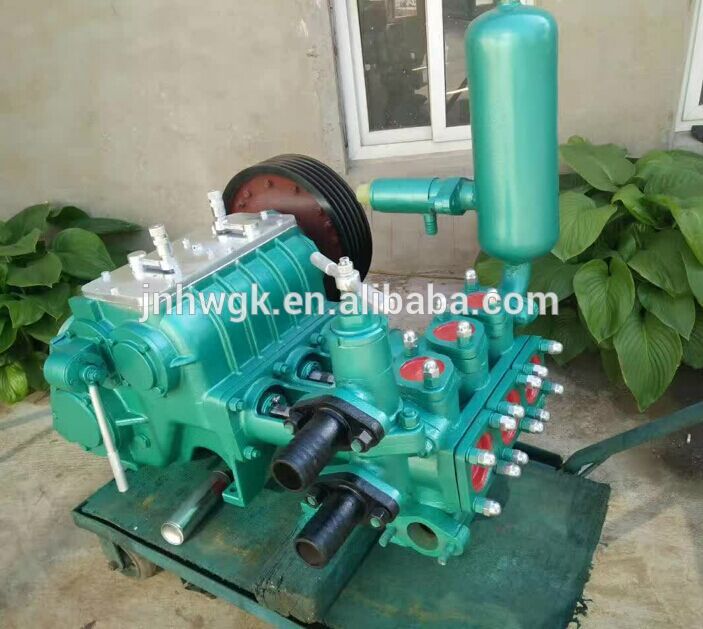

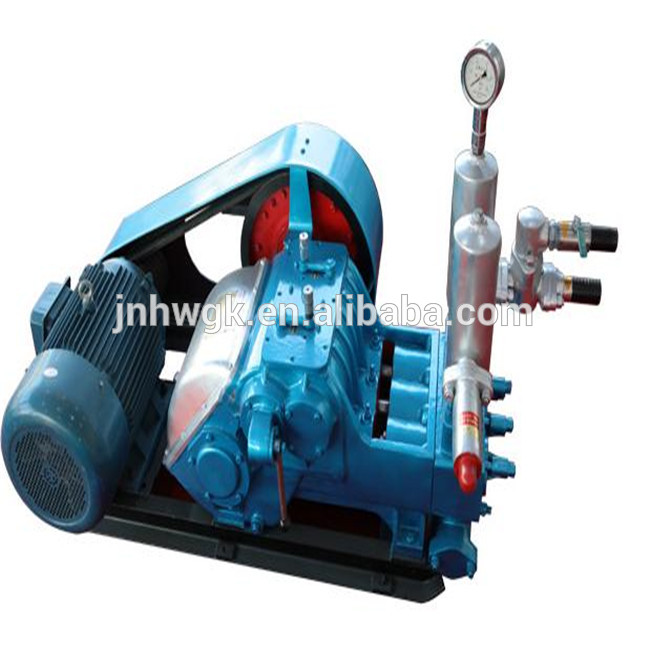

Concrete slurry mud pump
Productd Details:
1. A horizontal, triplex, single acting reciprocation piston pump. The pump can choose diesel motor
power, It has simple operation, convenient, can achieve close range or remote control.
2. This pump is a compact structure, smooth operation, high output pressure, longer life expectancy,
stable performance, good general and so on.
3. This pump adopts the car transmission,Can get six different discharge and pressure,Reasonable
configuration parameters selection,The construction technology can satisfy different requirements.
4. Mainly used drilling fluid in supply for 2000m about core drilling coal field geology,metallurgy
geology,hydrogeololgy,drilling fluid can use mud and water, the coal water etc.
Product Parameter:
MODEL | BW-160/10 |
TYPE | Horizontal, Triplex, Single Acting Reciprocating pump |
STROKE (mm) | 70 |
LINER DIA. (mm) | 70 |
STROKES (min-1) | 200 132 83 55 |
DISPLACEMENT (L/min) | 160 107 67 44 |
PRESSURE (Mpa) | 2.5 4 6.5 10 |
INPUT POWER (kW) | 11 |
SUCTION PIPE DIA. (mm) | 51 |
DISCHARGE PIPE DIA.(mm) | 25 |
DRILLING HOLE DEPTH | Diamond Core Drilling <1000m |
DIMENSION (mm) | 1400X850X950 |
WEIGHT | 380KG |
