Home > Products > 1000kgs 3m pallet stacker electric hydraulic forklift

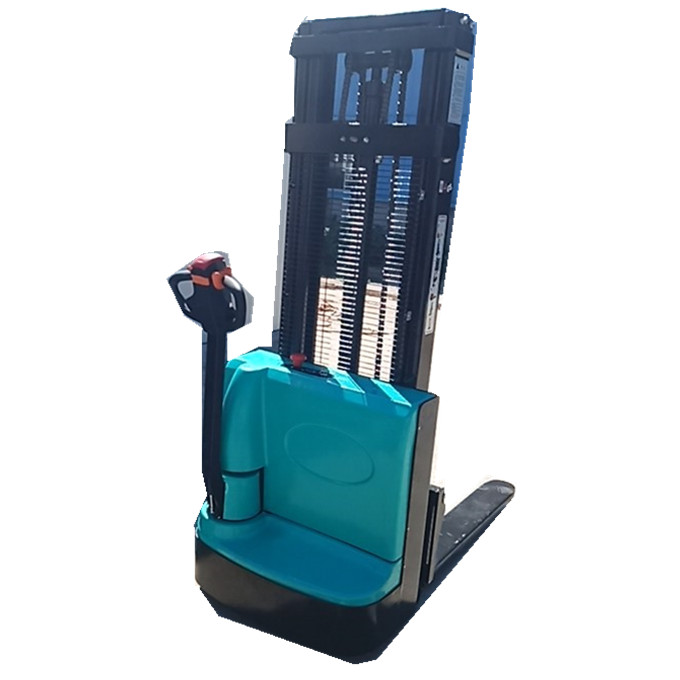

1000kgs 3m pallet stacker electric hydraulic forklift
Click on the image to view the original image
Product: views:21000kgs 3m pallet stacker electric hydraulic forklift
Type: Powered Pallet Truck
Unit Price: Negotiated
Min.Order:
Supply:
Delivery: Shipment within days since the date of payment
Valid until: Long Term
Updated on: 2019-10-16 20:35
  Negotiated
Product Details
Overview
Quick Details
Condition:
New
Place of Origin:
Shandong, China
Type:
Powered Pallet Truck
Power Souce:
DC Motor
Rated Loading Capacity:
1000kgs
Max. Lifting Height:
3000mm
Min. Lifting Height:
90mm
Fork Length:
1000mm
Fork Width:
680mm
Overall Dimensions:
1750mm*790mm*1900
Certification:
CCC ISO
Color:
blue
Loading Capacity:
1000kgs
Weight:
600kgs
Warranty:
12 months
After-sales Service Provided:
No overseas service provided
Supply Ability
Supply Ability:
3000 Unit/Units per Week
Packaging & Delivery
Packaging Details
Standard wrapping
Port
Qingdao
Lead Time:
Quantity(Units)1 - 12 - 56 - 10 >10
Est. Time(days)71215To be negotiated
Product Description

 1000kgs  3m  pallet stacker electric hydraulic forklift  This is the walking type full electric forklift/pallet stacker. It enjoys high cost performance.



Model12
Lifting height3000mm3500mm
Lifting capacity1ton1ton
FOB priceUSD29503890
whole machine length1750mm1900mm
Lifting height3000mm3500mm
Fork lowest height90mm90mm
Max.Fork adjustment range680mm680mm
Fork length1000mm1000mm
Min.Turning radius1390mm1800mm
Load center distance500-600mm500-600mm
Front wheel diameter80mm80mm
Rear auxiliary wheel diameter125mm125mm
Driving wheel diameter250mm250mm
Lifting motor power2KW2.2KW
Machine length +500mm(pedal)1800mm1900mm
Whole machine width790mm860mm
Fork out width680mm680mm











Packaging & Shipping

 Standard export wooden box
