Click on the image to view the original image
- Applicable Industries:
- Construction works
- Condition:
- New
- Type:
- Rotary Drilling Rig
- Power Type:
- Electric
- Place of Origin:
- Shandong, China
- Brand Name:
- HW
- Usage:
- Coal
- Voltage:
- 380
- Dimension(L*W*H):
- 2000 800160
- Weight:
- 1800
- Certification:
- ISO
- Warranty:
- 1 year
- After-sales Service Provided:
- Video technical support, Free spare parts, Online support, Overseas service center available
- Drilling depth(m):
- 350
- Opening straight (mm):
- 115
- Name:
- Tunnel Drilling Rig
- Final hole straight (mm):
- 75
- Drill pipe straight (mm):
- 50
- Drilling angle:
- 90
- Rated speed (rpm):
- 208
- Rated torque (N.m):
- 325
- Maximum feed force (KN):
- 50
Packaging & Delivery
- Selling Units:
- Single item
- Single package size:
- 230X150X120 cm
- Single gross weight:
- 1000.0 kg
- Package Type:
- Professional Hydraulic Underground Drilling Machine Core Mine Tunnel Drilling Rig

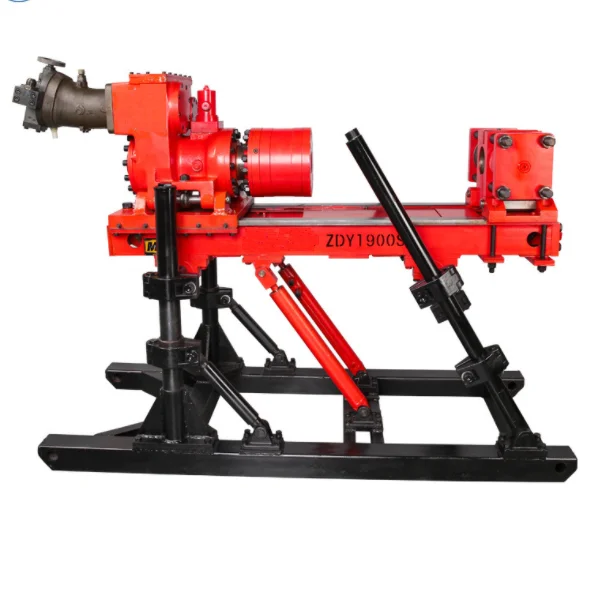

- Picture Example:
![package-img]()
- Lead Time:
Quantity(Set) 1 - 1 >1 Est. Time(days) 7 To be negotiated
Professional Hydraulic Underground Drilling Machine Core Mine Tunnel Drilling Rig Introduction
ZDY-2000S full hydraulic tunnel drilling rig
ZDY2000s tunnel drilling rig, ZDY2000 full hydraulic drilling rig, coal mine special hydraulic tunnel rig manufacturer
Environmental conditions for ZDY2000 full hydraulic drilling rig
The rig can work normally under the following conditions:
a) Ambient atmospheric pressure: 86kPa ~ 106kPa.
b) Ambient air temperature does not exceed 35 °C.
c) Ambient air relative humidity does not exceed 95% ± 3% (± 25 ° C).
d) Ambient air contains methane or explosive coal dust.
e) The structure and installation form of the motor are IMB3 and IMB5.
Professional Hydraulic Underground Drilling Machine Core Mine Tunnel Drilling Rig Parameter
ZDY2000 full hydraulic drilling rig specific parameters:
Model: ZDY2000S
Maximum drilling depth: 300m
Drilling angle: -90°~ +90°
Output speed: 76 r/min
Maximum torque: 2000N. m
Motor power: 37kw
Mainframe dimensions (length × width × height): 2180 × 800 × 1516mm
Machine weight (excluding drill pipe): 2000kg

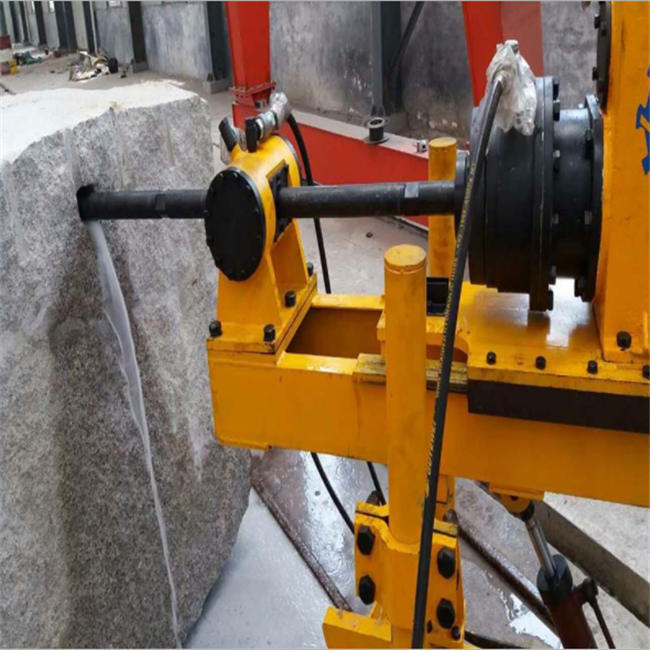

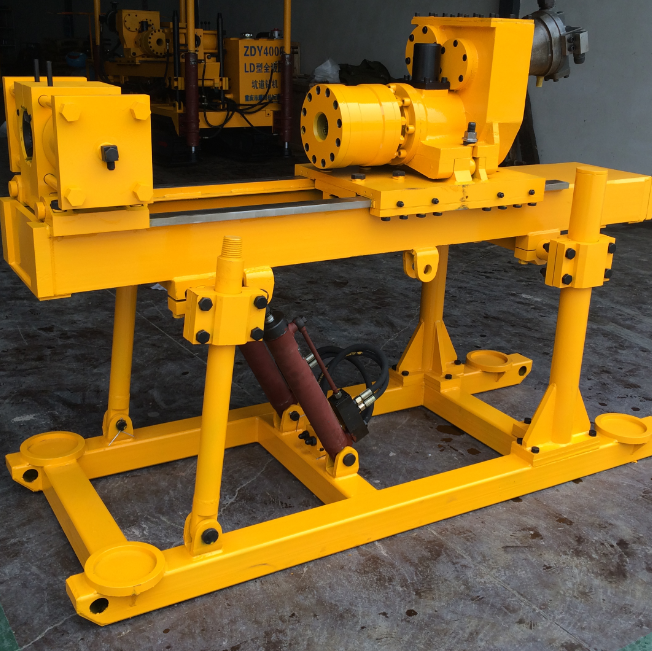

Professional Hydraulic Underground Drilling Machine Core Mine Tunnel Drilling Rig Photos
Professional Hydraulic Underground Drilling Machine Core Mine Tunnel Drilling Rig
Professional Hydraulic Underground Drilling Machine Core Mine Tunnel Drilling Rig
Professional Hydraulic Underground Drilling Machine Core Mine Tunnel Drilling Rig Professional Hydraulic Underground Drilling Machine Core Mine Tunnel Drilling Rig
Professional Hydraulic Underground Drilling Machine Core Mine Tunnel Drilling Rig
Professional Hydraulic Underground Drilling Machine Core Mine Tunnel Drilling Rig
Professional Hydraulic Underground Drilling Machine Core Mine Tunnel Drilling Rig
Professional Hydraulic Underground Drilling Machine Core Mine Tunnel Drilling Rig
Professional Hydraulic Underground Drilling Machine Core Mine Tunnel Drilling Rig
