- Condition:
- New
- Type:
- Core Drilling Rig
- Power Type:
- Electric
- Place of Origin:
- Shandong, China
- Brand Name:
- Hengwang
- Usage:
- Coal
- Voltage:
- 380V/660V/1140V
- Power(W):
- 3.2KW
- Dimension(L*W*H):
- 1550*460*540
- Weight:
- 57KG
- Certification:
- CCC ISO EX
- Warranty:
- 12months
- Name::
- Pneumatic roof bolter
- Application:
- Drill hole for anchor
- Feature:
- Supporting drilling
- Max.Height:
- 3705mm
- Min. Height:
- 1500mm
- Max. output power:
- 3.2KW
- Air consumption:
- 3.8m3/min
- After-sales Service Provided:
- No overseas service provided
Packaging & Delivery
- Selling Units:
- Single item
- Single package size:
- 170X30X45 cm
- Single gross weight:
- 70.0 kg
- Package Type:
- Standard export wooden boxes Ground anchor drilling mqt-130 pneumatic roof bolter
- Picture Example:
![package-img]()
- Lead Time:
Quantity(Set) 1 - 5 6 - 20 >20 Est. Time(days) 7 15 To be negotiated
Product Application

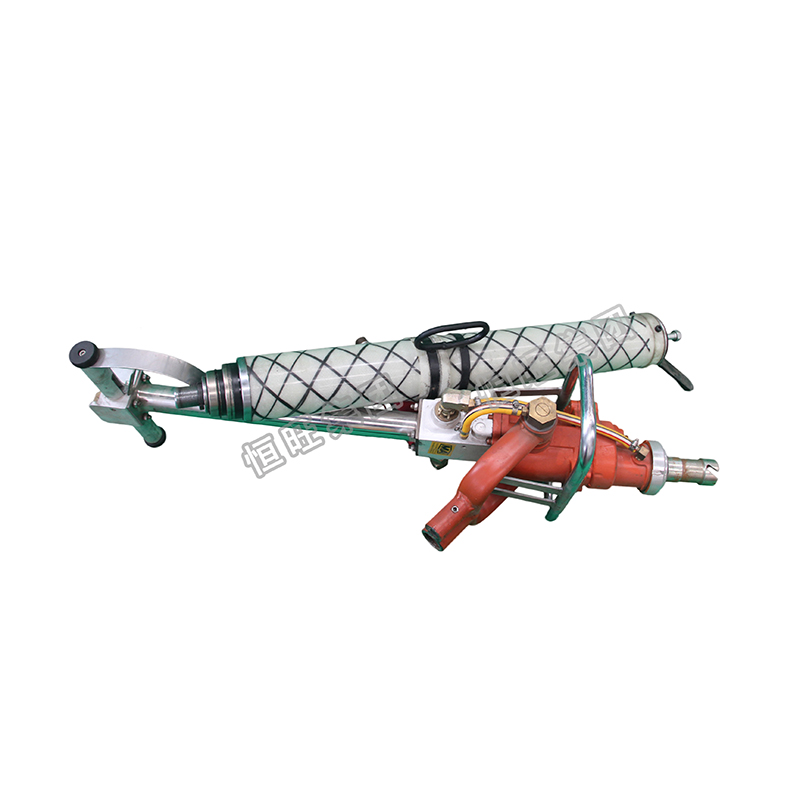

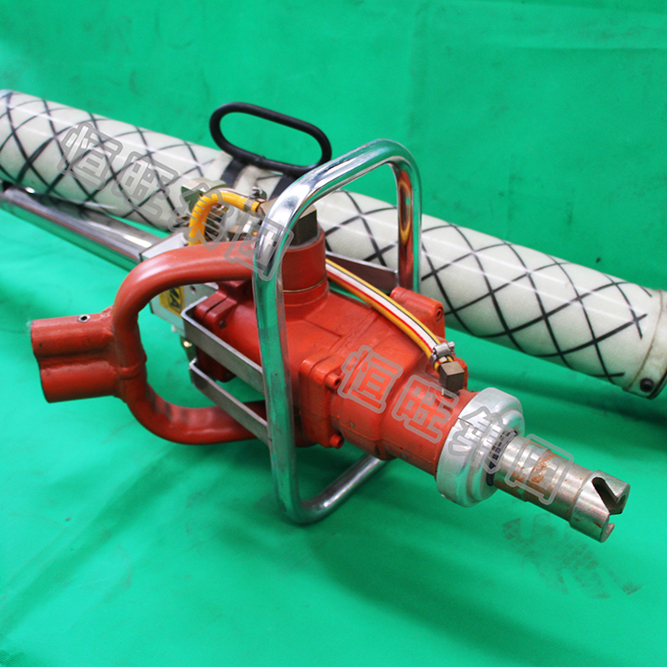

MQT130 pneumatic anchor drilling rig product details
MQT-130/3.2pneumatic anchor drilling rig is mainly used for coal mine roadway, rock road anchor bolt and anchor cable support drilling rock with hardness ≤f10, and can stir and install resin anchors and anchor cables for damping The anchor of the nut, MQT-130/3.2 pneumatic anchor drilling rig can directly tighten the nut during mixing, realize the bolt stirring and installation once, and meet the requirements of the initial anchor preload.
Features of MQT130 pneumatic anchor drill
1. the maximum use of engineering plastic materials, light weight and easy to operate.
2. MQT-130/2.0 pneumatic anchor rig adopts large-size motor for power, with larger power-to-weight ratio and longer service life. 3. The parameter matching is more reasonable. When the optimal drilling speed is near, the rig reaches the maximum output power.
4. The propulsion part adopts a new type of FRP cylinder, which is safe, explosion-proof, light and flexible.
5. the use of a new type of water valve, can adapt to the coal mine super high surface static pressure water.
Water jacket well sealed.
Enhanced seal and drain hole design to ensure water supply and double service life.
High strength three axis.
High quality stainless steel, higher strength, double life
Labyrinth muffler.
Maze design, anti - icing, more smooth exhaust, ensure reasonable torque output.
Handlebars are more comfortable.
It is easier to grasp the loading and stopping time of the rig
Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory. pneumatic roof bolter
After-Sales Service
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
