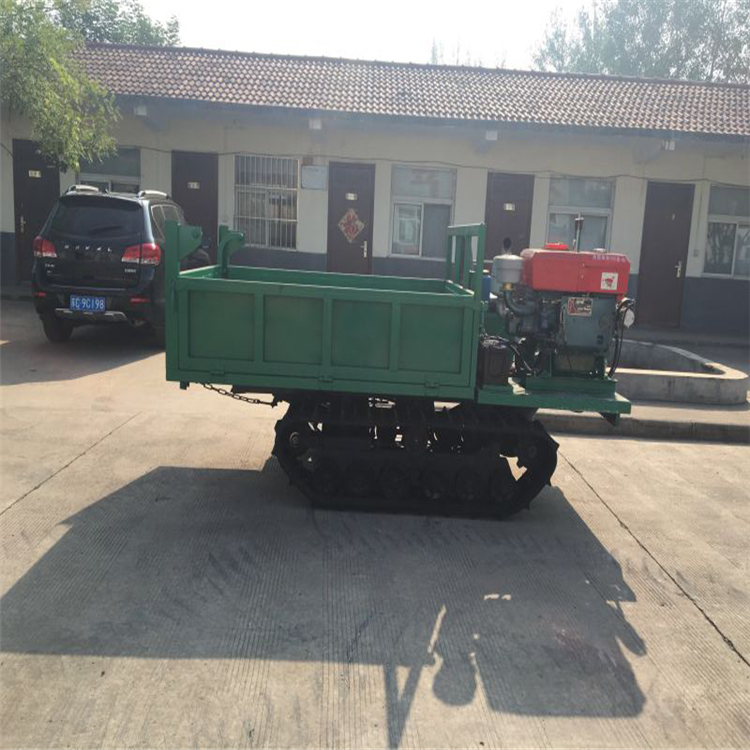

Steel Track Crawler Dumper,Carrier Crawler Transporter,Mine Dump Truck

Click on the image to view the original image

Product：	views：3Steel Track Crawler Dumper,Carrier Crawler Transporter,Mine Dump Truck
Branch：	HENGWANG
Size：	320X160X170 cm
Unit Price：	Negotiated
Min.Order：
Supply：
Delivery：	Shipment within days since the date of payment
Valid until：	Long Term
Updated on：	2019-10-16 20:36

Product Details

Overview

Quick Details

Drive Wheel:: 4x2

Capacity (Load):: 1 - 10t

Horsepower:: 28hp

Condition:: New

Transmission Type:: Automatic

Emission Standard:: Euro 1

Fuel Type:: Diesel

Engine Capacity:: < 4L

Gross Vehicle Weight:: 1.4

Place of Origin:: Shandong, China

Brand Name:: HENGWANG

Dimensions (L x W x H) (mm):: 3200*1600*1700mm

Product name:: Steel Track Crawler Dumper,Carrier Crawler Transporter,Mine Dump Truck

Color:: Customer's Request

Engine:: DIESEL

Certification:: ISO

Loading capacity:: 2ton

Engine model:: WL-28

Keywords:: Dump Truck Dumper Truck Tipper Truck

Name:: Steel Track Crawler Dumper,Carrier Crawler Transporter,Mine Dump Truck

Max. speed (km/h):: 1.5~15

Horse power:: 28

Packaging & Delivery

Selling Units:: Single item

Single package size:: 320X160X170 cm

Single gross weight:: 1400.0 kg

Lead Time:

Quantity(Set)	1 - 10	>10
Est. Time(days)	10	To be negotiated

Product Description

Main Features

1, the use of a wide range of simple structure, smooth transmission, operation effort, easy to achieve automatic control.

2, for swamps, floods, deserts, paddy fields, tropical rain forests, snow and ice and other complex road conditions.

3, single-cylinder power system, low fuel consumption.

4, traction, climbing performance is good, strong transport capacity.

5, turning radius is small, flexible, especially to adapt to narrow space, reducing the cost of building roads.

6, with electrical start, handle centralized, easy to operate.

7, with a hydraulic landing, dumping, reduce labor intensity, improve transport efficiency.

Specification

Machine weight: 1.4 tons

Maximum load: 2 tons

Truck crane maximum lifting: 1 ton

Boom lifting height: 3 meters

Stalls and speed: +3 forward speed +3 reverse gear reverse the fastest 8 km slowest 0.6 km

Cabin size: 1.6 meters * 2.0 meters (can be customized)

Climbing ability: 28 degrees

Engine power: 28 hp

Overcrowding capacity: 30 cm

Vehicle length * width * height (cm): 340cm * 160cm * 120cm

Chassis length * width * height (cm): 195cm * 160cm * 45cm

Diesel Engine Model: WL-28

Diesel power (kw / r / min): 20.24Kw / 2200r / min

The lowest point of the car from the ground height (cm): 25cm

Cargo Length * Width * Height (cm): 180cm * 160cm * 40cm (can be customized)

Maximum flat road load (kg): 2000kg

Maximum slope load (kg): 1200kg

Driving speed: the slowest: 1.2km / h fastest: 6km / h

Obstacle obstacle: 20 degrees maximum slope, vertical height of 20cm obstacles

Wade depth: 40cm

Depth of mud: 20cm

Track ground length (cm): 130cm

Track Type: 400mm

Can be modified according to the requirements of the container, the installation of lifting luggage, dump, lorry and so on
