Mine Cart Producer,Rail Mine Car,Mining Flat Car Wheel

Click on the image to view the original image

Product：	views：3Mine Cart Producer,Rail Mine Car,Mining Flat Car Wheel
Branch：	HENG WANG
Unit Price：	Negotiated
Min.Order：
Supply：
Delivery：	Shipment within days since the date of payment
Valid until：	Long Term
Updated on：	2019-10-16 20:36

Product Details

Overview

Quick Details

Place of Origin:: Shandong, China

Brand Name:: HENG WANG

Condition:: New

After-sales Service Provided:: Engineers available to service machinery overseas

Product name:: Mine Cart Producer,Rail Mine Car,Mining Flat Car Wheel

Keywords:: Mine Cart Producer,Rail Mine Car,Mining Flat Car Wheel

Certificate:: ISO

Color:: Customer's Request

Warranty:: 2 Years

After-sales Service:: Service Machinery Overseas

Application:: Mine Cart Producer,Rail Mine Car,Mining Flat Car Wheel

Name:: Mine Cart Producer,Rail Mine Car,Mining Flat Car Wheel

Other name:: Mine Cart Producer,Rail Mine Car,Mining Flat Car Wheel

Model:: MPC

Packaging & Delivery

Selling Units:: Single item

Single volume:: 2 cm³

Single gross weight:: 910.0 kg

Lead Time:

Quantity(Set)	1 - 10	>10
Est. Time(days)	7	To be negotiated

Product Description

Introduction of MPC5-9 Flat Rail Wagon /Mining Rail Flat Car For Sale

MPC series flat rail wagon is suitable for the underground mining, mining, along the underground tunnel and surface industrial site transportation equipment or other items.
1.Load:2-18ton
2.Track gauge:600mm,900mm
3.Wheel base:550/600/750/1000/1100

Parameter of MPC5-9 Flat Rail Wagon /Mining Rail Flat Car For Sale

Model	loading (kg)	L(mm)	W(mm)	H(mm)	Rail gauge (mm)	Wheel Dia.(mm)	Pulling Height (mm)	Weight (kg)
MPC5-9	5000	3450	1320	480	900	350	320	910
MPC10-6	10000	3460	1300	304	600	250	230	910
MPC10-9	10000	3460	1300	304	900	250	230	1030
MPC13-6	13000	3350	1400	342	600	300	270	1015
MPC15-6	15000	3460	1300	357	600	300	320	1160
MPC15-9	15000	3460	1300	357	900	300	320	1240
MPC18-6	18000	3350	1400	346	600	300	270	1132

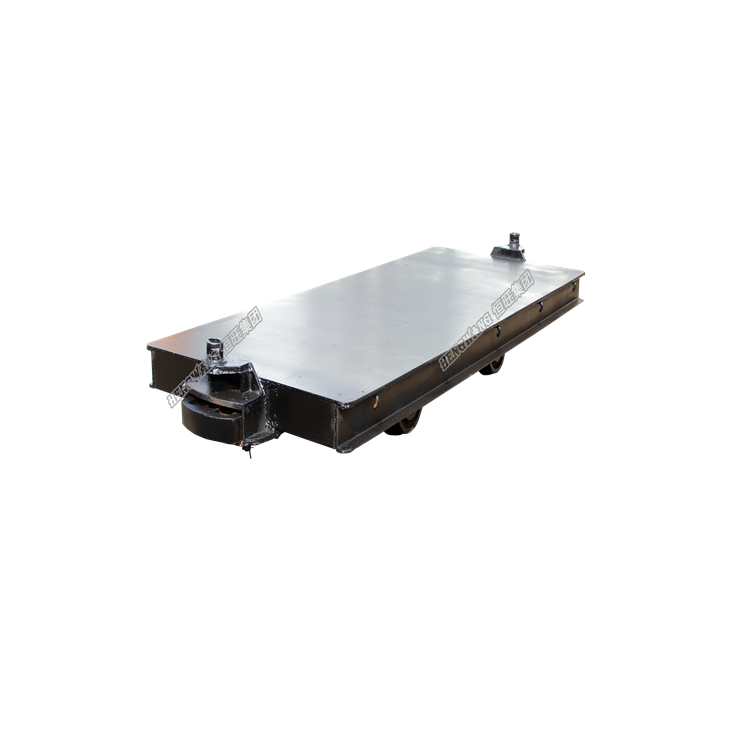

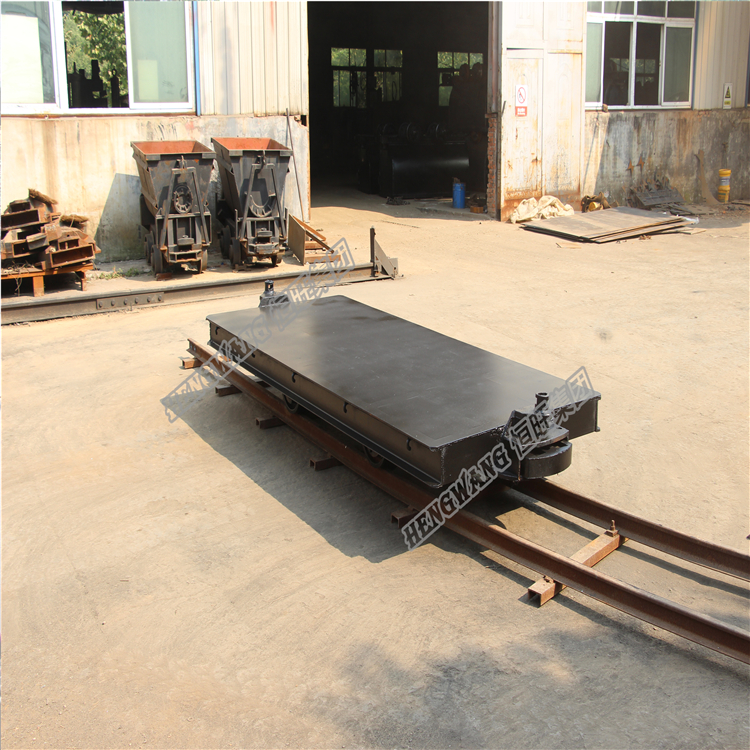

Photos of MPC5-9 Flat Rail Wagon /Mining Rail Flat Car For Sale
