small wheel loader for sale/cheap backhoe loader/backhoe loader with price

Click on the image to view the original image

Product：	views：3small wheel loader for sale/cheap backhoe loader/backhoe loader with price
Branch：	HW
Type：	Grinding Ore
Unit Price：	Negotiated
Min.Order：
Supply：
Delivery：	Shipment within days since the date of payment
Valid until：	Long Term
Updated on：	2019-10-16 20:37

Product Details

Overview

Quick Details

Place of Origin:: Shandong, China

Brand Name:: HW

Condition:: New

After-sales Service Provided:: Overseas service center available

Maximum loading:: 1200mm

Suitable height:: 1500mm

Product name:: backhoe loader with price

Maximum belt slope:: 22 degree

Total weight:: 4T

Power:: 15kw

Maximum digging capacity:: 11.1kn

Grounding pressure:: 0.056MPA

Motor power:: 37kw

Type:: Grinding Ore

Supply Ability

Supply Ability:: 15 Set/Sets per Month Crawler-type grilled or dredge Slag machine in mine slag machine

Packaging & Delivery

Packaging Details: small wheel loader for sale/cheap backhoe loader/backhoe loader with price

Port: Qingdao

Lead Time:

Quantity(Sets)	1 - 2	3 - 5	>5
Est. Time(days)	3	7	To be negotiated

Product Description

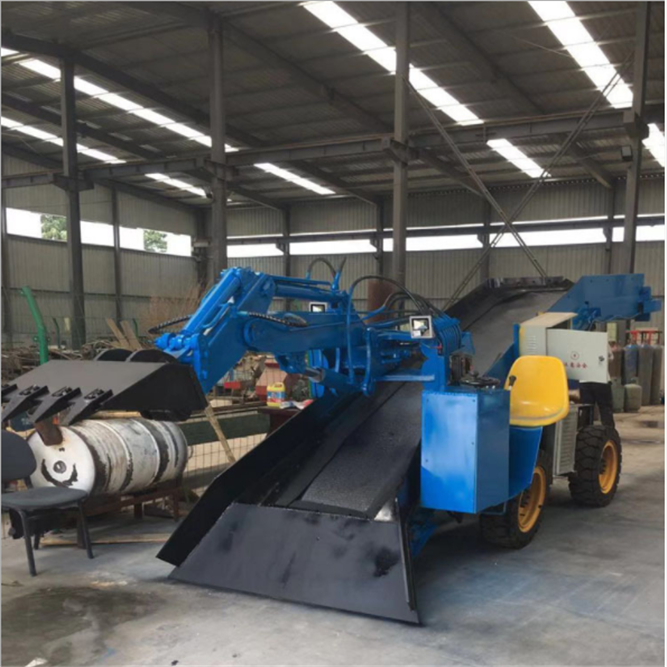

Mucking loader is also called excavating loader, integrates multiple functions including excavation, conveying, loading, running, Because of its high working efficiency, strong ability to adapt the space, less polluting to the air inside of the tunnel, it becomes a very important mechanical equipment in tunnel construction.
Wheeled slag machine wide range (from left to right range of up to 4.5 meters, up to 2.8 meters on the ground, the ground up to 0.8 meters) ,It can be full-face loading of gravel, leaving no dead ends, do not need to manually clean up Site, you can also digging on both sides of the roadway ditch.

small wheel loader for sale/cheap backhoe loader/backhoe loader with price

small wheel loader for sale/cheap backhoe loader/backhoe loader with price

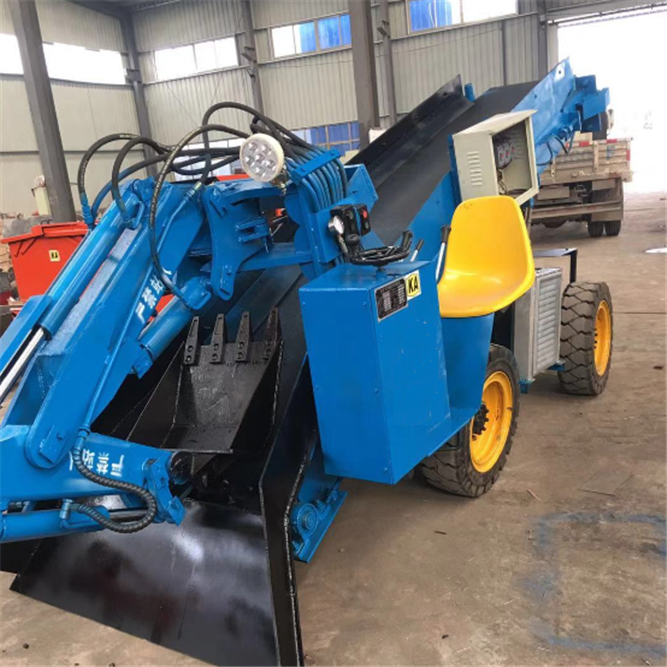

Detailed Images

small wheel loader for sale/cheap backhoe loader/backhoe loader with price

Main functions

Mucking loader using electric hydraulic control system, contain five functions are hydraulic walking, mining acquisition , transportation, loading and bottom clearing. Our mucking loader has dual drive device , electrical installation and diesel Installation. When it works in the mine , please use electric power,for the electric power is more environmental and safe. When it works out of the mine, Hydraulic oil tank can storage oil for a long continuous work.

Underground mine mucking rock loader Parameter

Contents	Unit	Parameter
Contents	Unit	HW-50	HW-60	HW-70	HW-80	HW-100
External dimension	mm	430015001500	430015001500	560017001700	600017001770	640017301650
Wheel base		1300	1500	1500	1700	1700
Max.material go though size		600*600	600*600	600*600	800*600	800*600
Min.distance from the ground		180	180	180	160	190
Wheel tread		1600	1600	1700	1750	1750
Total weight	T	4	4	4	5	5
Max. lifting height	mm	1350	1350	2100	2100	2100
Max. loading height		1200	1200	1500	1600	1500
Suitable height of charging carriage		1500	1500	1700-2100	1750-2500	1700-2100
Max.extension of scraper bucket		1440	1440	1300	1800	1740
Max.lift height		2150	2150	1900	2800	1600
Power	KW	15	15	15	19	19
