6M3 concrete mixer drum Cement mixer tank price
 Click on the image to view the original image |
|
| Product： |
views：36M3 concrete mixer drum Cement mixer tank price |
| Branch： |
HW |
| Unit Price： |
Negotiated |
| Min.Order： |
|
| Supply： |
|
| Delivery： |
Shipment within days since the date of payment |
| Valid until： |
Long Term |
| Updated on： |
2019-10-16 20:37 |
| |
 |
|
Many kind of 3M3,4M3,6M3 AND 8m3 concrete mixer drum /tank Concrete mixing tank manufacturers specialize in the production of large, medium and small concrete mixing tanks with uniform mixing and long service life. You can customize concrete mixing tanks according to your requirements. It is a must for many concrete mixing tanks. It is the first choice for buying concrete mixing tankers. Strict testing and meeting national testing standards are worthy of choice. Applicable to subways, tunnels, water conservancy and hydropower, medicine, chemical engineering and other industries. The product is easy to install, simple to operate, and the system runs smoothly and reliably.
Model | HW-NN03 | HW-NN04 | HW-NN06 | HW-NN08 | Mixing tank conveying capacity | 3M3 | 4M3 | 6M3 | 8M3 | Mixing tank total volume capacity | 4.8m3 | 6.2M3 | 8.96M3 | 12.5M3 | Filling ratio | 0.67 | 0.67 | 0.67 | 0.67 | Feed material speed | ≥3 | ≥3 | ≥3 | ≥3 | Discharge material speed | ≥1 | ≥1 | ≥1 | ≥1 | Mixing drum speed | 0-14 r/min | 0-14 r/min | 5-12r/min | 0-14 r/min | Feed material door height | 3.1M | 3.1M | 2.59M | 3.8M | Oil tank working temperature | 50°-70° | 50°-70° | 50°-70° | 50°-70° | Machine size | 3.8M*1.95M*2.1 M | 4.0M*1.95M*2.1 M | 5.7M*2.2M*2.59 M | 6.5M*2.2M*2.5 M |
Feature1. The reducer of our company"s concrete mixing tank adopts the technical principle of German company and organizes the design and customization. Its characteristics are large torque, stable operation, and can adjust the tank according to the road conditions;
2. The motor system adopts the American Eaton technical principle, which features large torque, high speed and high temperature resistance. Through the limit test of our company, it can work continuously for 60 minutes at a high temperature of 80 °, and the pressure does not change significantly;
3. The tank body adopts a dish-shaped head. Its main function is to apply uniform force, so that its reducer receives minimum load, the hydraulic system runs more smoothly and the maintenance rate is lower.

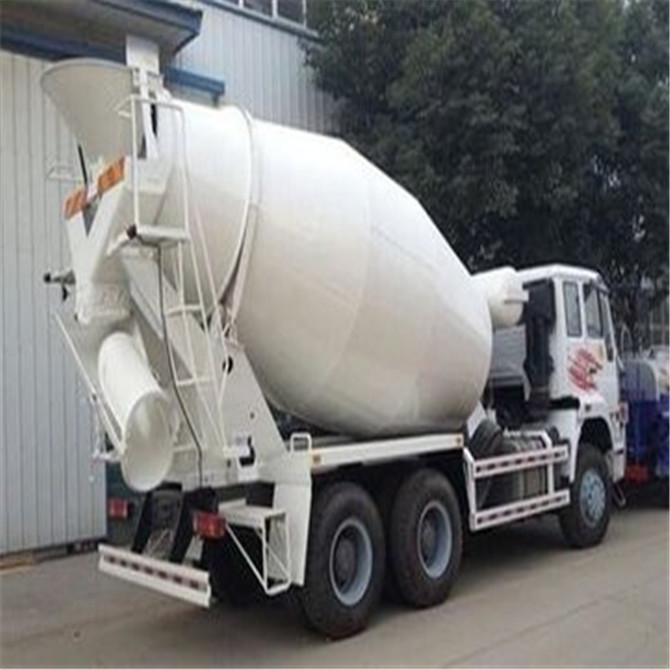

3M3,4M3,6M3 AND 8m3 concrete mixer drum /tank
3M3,4M3,6M3 AND 8m3 concrete mixer drum /tank
3M3,4M3,6M3 AND 8m3 concrete mixer drum /tank
3M3,4M3,6M3 AND 8m3 concrete mixer drum /tank Factory information
