- Condition:
- New
- Type:
- Rotary Drilling Rig
- Power Type:
- Diesel
- Place of Origin:
- china
- Brand Name:
- HW
- Usage:
- Water Well
- Voltage:
- 380V
- Dimension(L*W*H):
- 3400*1500*2200
- Weight:
- 3.5T
- Certification:
- ISO
- Warranty:
- 1 Year
- After-sales Service Provided:
- Online support
- MODEL:
- TQZ150
- Product name:
- drilling rig
- Supply Ability:
- 20 Set/Sets per Quarter water well drilling rig
- Packaging Details
- 20 FEET CONTAINER
- Port
- QINGDAO
- Lead Time:
Quantity(Sets) 1 - 1 >1 Est. Time(days) 10 To be negotiated

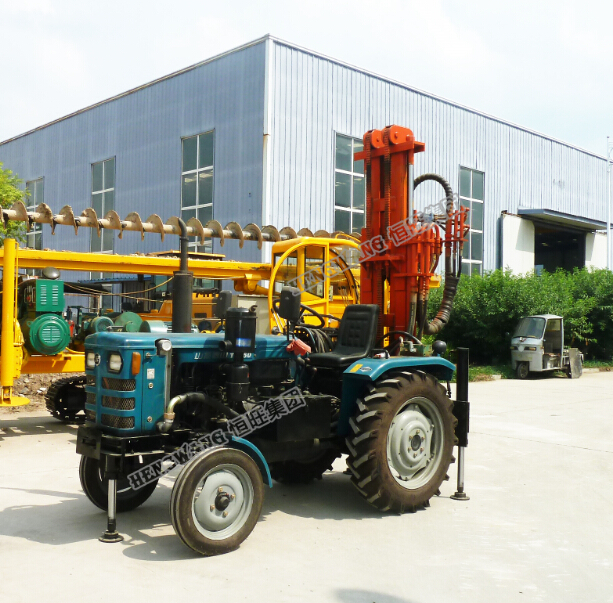

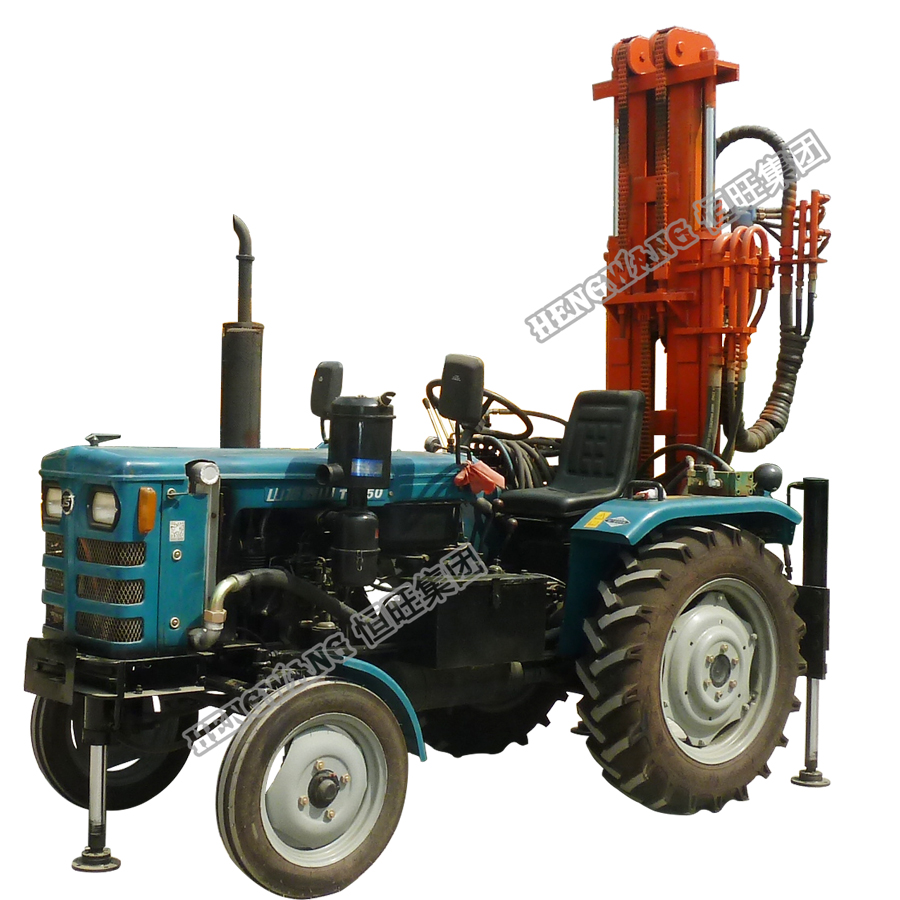

Tractor pneumatic drilling rig with new DTH impacttechnology, supporting high torque hydraulic motor rotation and large bore hydraulic cylinder push, the multi - cylinder engine produced by famous factory provides power for the hydraulic system, two grade air filter and air compressor intake design to prolong the diesel engine service life.
Tractors pneumatic water well drilling rig according to the user needs could be matched with different horsepower tractor chassis, different specification drilling tools , air compressor, DTH impactor and blast pipe, apply for variety of specifications.
Tractor pneumatic wells drilling machine is applicable to civil engineering drilling, geothermal drilling, with large diameter and deep drilling footage, fast, mobile and flexible, wide use of regions advantages, combined the advantages of drilling machine and tractor.
Model | TQZ150 | TQZ200 |
(T)Overall weight | 3.5 | 4.2 |
(mm ) Dimension | 3400*1500*2200 | 3400*1500*2200 |
(mm )Drilling diameter | 130-219 | 130-219 |
(m)Drilling depth | 150 | 200 |
(mm )One-time advance length of the drill | 1500 | 1500 |
(km/h )Traveling speed | 30 | 30 |
(max )Climbing capacity | 25° | 25° |
(mm )Minimum ground clearance | 250 | 250 |
(mpa )Working Air Pressure | 1.45-2.5 | 1.45-2.5 |
(m3 /min )Air consumption | 15-27 | 15-27 |



Drilling tool



Factory
Workshop



Q: Are you trading company or manufacturer ?
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
