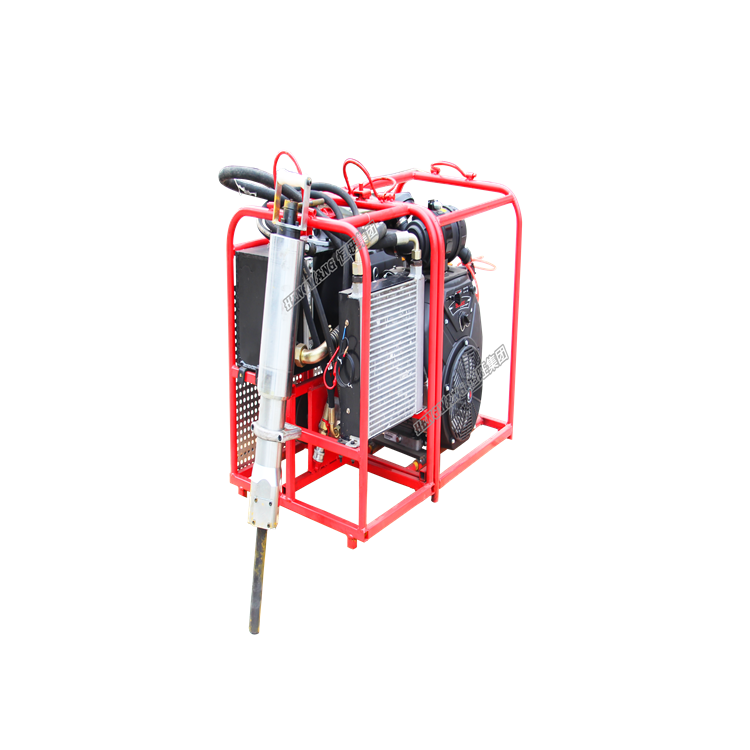

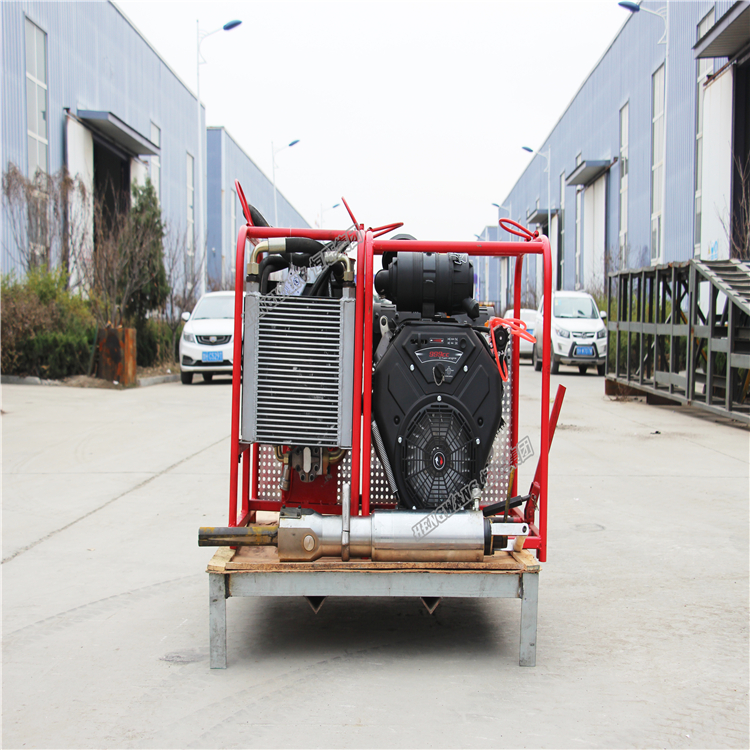

hydraulic rock splitting machine Darda Hydraulic Rock Splitter for Mining,rock splitting machine with cylinders

Click on the image to view the original image

Product：	views：3hydraulic rock splitting machine Darda Hydraulic Rock Splitter for Mining,rock splitting machine with cylinders
Branch：	hengwang
Type：	Rock Splitter
Size：	80X80X160 cm
Unit Price：	Negotiated
Min.Order：
Supply：
Delivery：	Shipment within days since the date of payment
Valid until：	Long Term
Updated on：	2019-10-16 20:38

Product Details

Overview

Quick Details

Type:: Rock Splitter

Condition:: New

Application:: Darda Hydraulic Rock Splitter

Motor Type:: AC Motor

Place of Origin:: Shandong, China

Brand Name:: hengwang

Dimension(L*W*H):: 80*80*160CM

Certification:: ISO

Warranty:: 1 Year

After-sales Service Provided:: Free spare parts, Online support, Video technical support

drilling diameter:: 50mm

drilling depth:: above 600mm

cheese block length:: 10-40mm

capacity of tank:: 45L

working flow(L/min):: 2-13

working pressure(Mpa):: 55-60

Engine:: Gaoline engine /diesel engine

productname:: hydraulic rock splitting machine

application:: Darda Hydraulic Rock Splitter for Mining,rock splitting machine

color:: asyour requirement

Packaging & Delivery

Selling Units:: Single item

Single package size:: 80X80X160 cm

Single gross weight:: 150.0 kg

Lead Time:

Quantity(Set)	1 - 1	>1
Est. Time(days)	7	To be negotiated

Product Description

Hydraulic rock splitter , rock splitter wedge for sale

Rock splitting machine, also known as rock splitting machine, is a machine for splitting rocks. It is used in construction, decoration, engineering construction, ore mining.

Splitting machine|The structure of the splitter is mainly composed of hydraulic station, oil pipeline, splitting gun and decoupling. According to the type of power station, it can be divided into four types: electric type, diesel type, gasoline type and air motor. According to the split gun material can be divided into: steel split gun and aluminum split gun. It can also be classified according to the size of the split gun power.

Model	HW90-250-1	HW90-250-2	HW90-250-3	HW90-250-4
piston diameter	90mm	90mm	90mm	90mm
drilling diameter	Φ50mm	Φ42mm	Φ45mm	Φ50mm
drilling depth	above600mm	above500mm	above550mm	above600mm
cheese block length	10~40mm	10~40mm	10~40mm	10~40mm
weight	30Kg	31Kg	32Kg	33Kg
Hydraulic rock splitter
Engine	Electricity engine		Gaoline engine /diesel engine
weight	60kg	100kg /150kg	100kg	130kg/150kg
capacity of tank	15L	40L /88L	45L	65L/90L
motor power	1.5KW	4KW/7.5KW	4Hp	7Hp/7.5Hp
working pressure(Mpa)	55-60	55-60	55-60	55-60
working flow(L/min)	2-13	2-13	2-13	2-13
configurable splitting machine number	1-5	2-7/2-10	1-3	3-8/3-10
