china made reinforcing steel cage making machine pile cage making machine agent

Click on the image to view the original image

Product：	views：4china made reinforcing steel cage making machine pile cage making machine agent
Branch：	heng wang
Type：	Automatic Cnc Welding Machine
Size：	2700X450X270 cm
Unit Price：	Negotiated
Min.Order：
Supply：
Delivery：	Shipment within days since the date of payment
Valid until：	Long Term
Updated on：	2019-10-16 20:38

Product Details

Overview

Quick Details

Condition:: New

Place of Origin:: Shandong, China

Brand Name:: heng wang

Forming Time:: 1s-10s Adjustable

Welding Mode:: PAW

Welding Diameter:: 50-800mm

Dimensions:: 2.2*1.2*1.7m

Weight:: 10-20T

Usage:: Welding

Voltage:: 380V

Power(W):: 10KW-23kw

Certification:: ISO

Warranty:: 1 Year

After-sales Service Provided:: Field installation, commissioning and training, Field maintenance and repair service, Online support, Video technical support, No overseas service provided

Name:: reinforcing steel cage making machine pile cage making machine agent

Type:: Automatic Cnc Welding Machine

Application:: LNG Cylinder

Blue and white:: Automatic Butt Welder

Automatic Grade:: Automatic Paint

Work piece material:: Alloyed Metal

Thickness:: 0.5-6mm

Material:: Carbon Steel

Product name:: reinforcing steel cage making machine pile cage making machine agent

Packaging & Delivery

Selling Units:: Single item

Single package size:: 2700X450X270 cm

Single gross weight:: 15000.0 kg

Lead Time:

Quantity(Set)	1 - 1	>1
Est. Time(days)	15	To be negotiated

Product Description

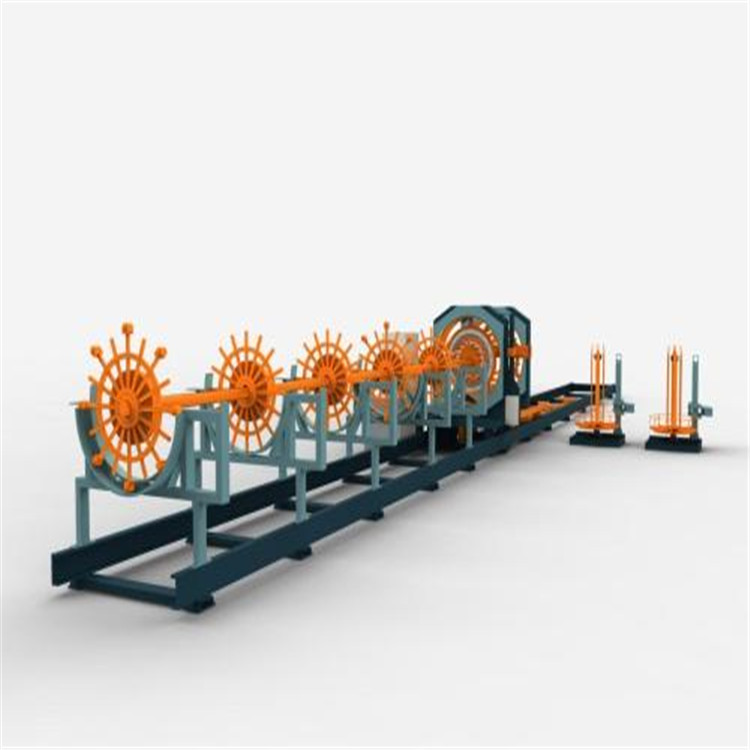

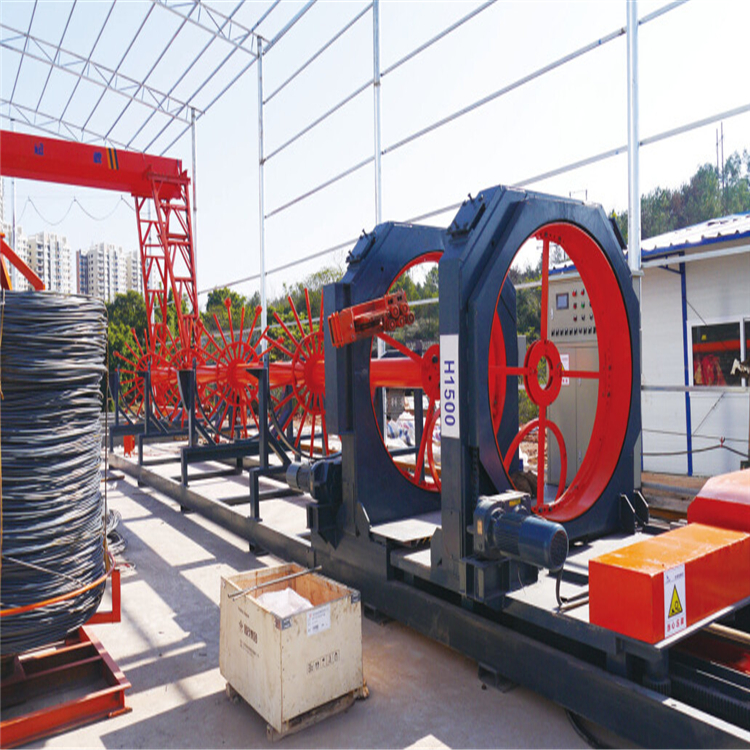

Rolling welder/ Steel Cage Welding machine is one of all the machines in our company. With the way of push the reinforcing steel, and the function of change the diameter automatically, this machine is able to make the flush joint wire cage, but also the spigot&socket wire cage, and even able to adjust the angle of the spigot joint at direction. Its electrical system adopt many advanced techniques, such as Digital set control, and Full variable Frequency Control Speed in Sync Ratio, which make a great improvement of the complete machine’s Maneuverability and Control Accuracy. Through demonstrate by most users’ operation, this machine is the most advanced wire cage welder made in China, which is with steady, reliable performance, and with accurate and fast of transition diameter.

Parameters
LL1250 LL1500 LL2000
Reinforcement cage diameter Pile 300 ~ 1250mm 400 ~ 1500mm 500 ~ 2000mm
Rated total power 10kw 13kw 23kw
Equipment weight 11T 15T 20T
Reinforcement cage maximum length 12m (can be extended to 18 meters or 22 meters)
Diameter of the main reinforcement Φ12 ~ 32mm
Around the ribs diameter Φ6 ~ 16mm
Spacing around the ribs 50 ~ 500mm
Hydraulic system pressure 10MPa
