Product Description
Crane mini truck mounted crane is a kind of machine widely used in ports, workshop, electrical and constructional site. The crane is a general name of hoisting machine. Frequently called crane is autocrane, crawler crane and tyre crane. Crane is used in hoisting equipment, emergency rescue, lifting, machinery, the rescue
| Max. Lifting Capacity | 16T |
| Max. Working Height | 38 m |
| Boom Extension Mechanism | 5 Telescopic boom |
| Lifting Torque | 240 KN |
| Hook Single Hoisting Capacity | Main Hook: 16 ton |
| Auxiliary Hook: 6 ton | |
| Hook Hoisting Speed | Main Hook: 135 m/min |
| Auxiliary Hook: 85 m/min | |
| Swing Bearing | GB1000 touch, 50 Micron intermediate Frequency |
| Vertical Hydraulic Leg | Double acting oil cylinder |
| Horizontal Leg | Hydraulic |
| Crane-Cab | Tailer Made |
| Hydraulic Oil Tank | Hanging below the chassis, Special four layers filters |
| Pressure Gage & Switch | Shockproof component |
| Axial symmetry Control | Three pump confluence |
| Boom Welding | Automatic Welding |
| Painting | Shot peening single painting process |
| Working Platform | Anti-skidding |
| Night Light | 3 Lamps |
| TRUCK PART | |
| Brand | Dongfeng Truck Chassis |
| Total Mass with Crane (kg) | 16500 |
| Overall Dimension (mm) | 10200*2300*3450 mm |
| Tire | Model: 900-20 with |
| Spare Tire | |
| Tire No: Seven | |
| Axle No. | One |
| Number of the leaf spring | 9/11+8 pieces |
| Front/Rear wheel track (mm) | 1640/1650 |
| Wheel base (mm) | 4300 mm |
| Truck Chassis Engine | Engine Model:WeiChai Brand |
| Engine Power:92Kw/2400rpm | |
| Cylinder No.: Four | |
| Displacement:11.596L | |
| Kind of the fuel | Diesel oil |
| Max Driving Speed | 75Km/h |
| Braking system | Air brake |
| Steering | Hydraulic power assisted type |
| Radio | Included |
| Air Condition | Included |
| Auto/Manual | Manual |
| Truck Driving Seat | Left Position |
| Color | Yellow or White |

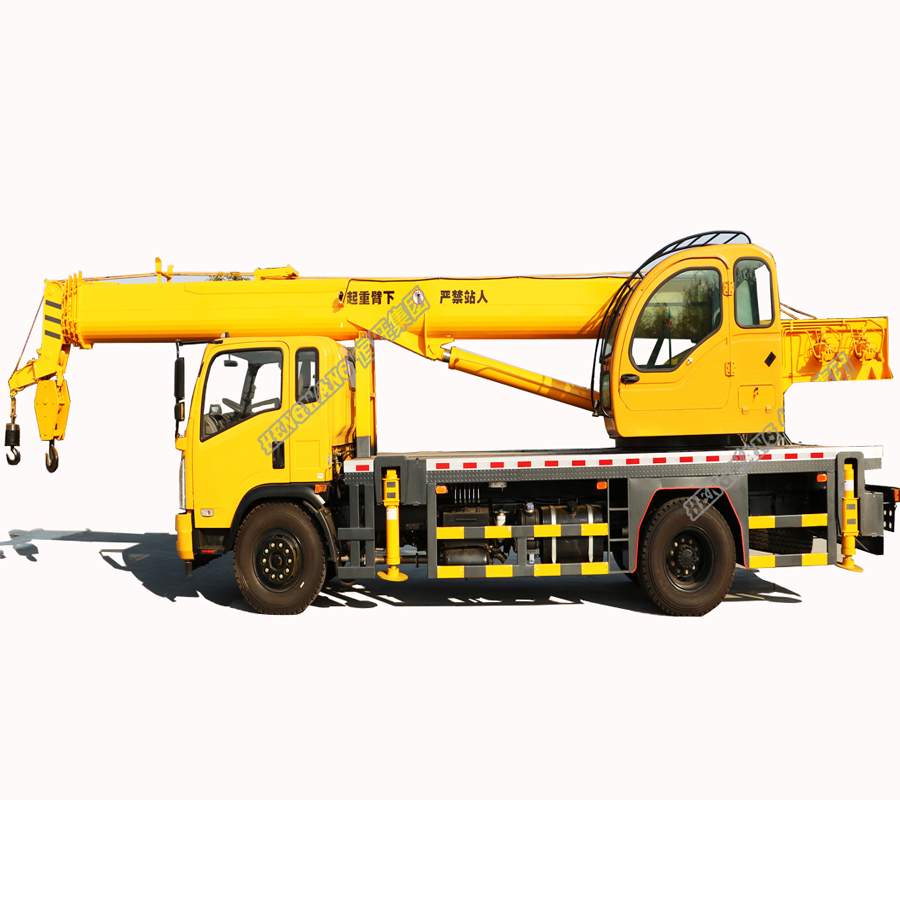

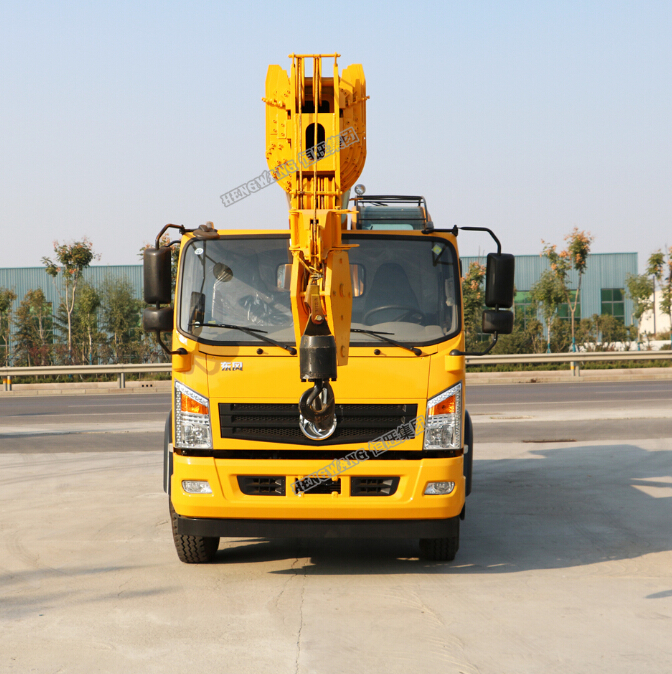

Figure photos
