rational construction CNC reinforce automatic welding machine

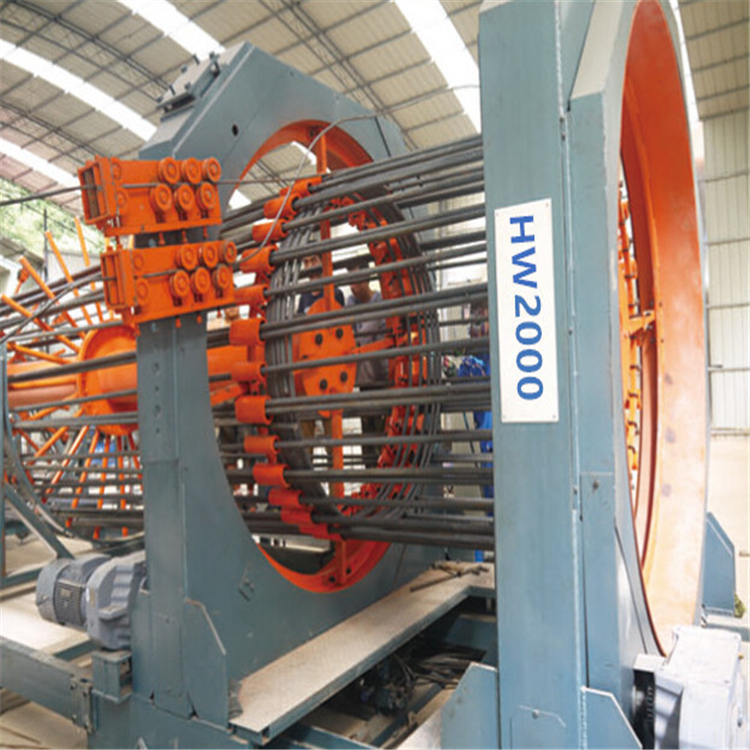

rational construction CNC reinforce automatic welding machine is an automatic rebar processing machine with the function of cage making, cnc wire cutting, can process the cnc wire cage making by 2m-12m.The latitudinal rebar will be inserted into the sleeves which fixed on the rotating disk, take longitudinal circle wire and welding it on one latitudinal rebar, when the machine driven and the rotating disk rolling, the longitudinal circle wire will be twines around the rebar, when the disk is moving, it is also rotating, then it will be pile cage.
Cnc wire cage making,Humanized Operation Interface
2.What"s the highlights of rational construction CNC reinforce automatic welding machine?
a.The big difference is the rational construction CNC reinforce automatic welding machine can be customized.
b. modular design, every part of it can be hoisted.
c.Welding automatically by welding guns, one welding point just take one second.
3.what"s the details of rational construction CNC reinforce automatic welding machine?
Main Technical Specifications of CNC rational construction CNC reinforce automatic welding machine
CAGE MAKING MACHINE | |||
Model | HW1500X | HW2000X | HW2500X |
Cage diameter(mm) | Φ500-1500 | Φ500-2000 | Φ500-2500 |
Cage length(m) | 2-12 | 2-12 | 2-12 |
Max Weight of reinforcement cages(KG) | ≤4500 | ≤6000 | ≤8000 |
Diameter of main bar(mm) | Φ16-32 | Φ16-32 | Φ16-32 |
Spiral diameter(mm) | Φ6-12 | Φ6-12 | Φ6-12 |
Spiral spacing(mm) | 50-500 | 50-500 | 50-500 |
Labeled electric power(kw) | 18 | 21 | 25 |
Walking speed(m/min) | 1.5 | 1.5 | 1.5 |
Rotating speed(r/min) | 2-4 | 2-4 | 2-4 |
Over Dimension(L*W*H)(mm) | 27000×4500×2700 | 27000×5000×3200 | 27000×5500×3700 |
automatic steel cage welding machine for concrete pipes
automatic steel cage welding machine for concrete pipes
automatic steel cage welding machine for concrete pipes
automatic steel cage welding machine for concrete pipes
automatic steel cage welding machine for concrete pipes
automatic steel cage welding machine for concrete pipes
