darda c12 light weight strong rock splitter for sale

Click on the image to view the original image

Product：	views：3darda c12 light weight strong rock splitter for sale
Branch：	HengWangsplitting machine
Type：	Rock Splitter
Unit Price：	Negotiated
Min.Order：
Supply：
Delivery：	Shipment within days since the date of payment
Valid until：	Long Term
Updated on：	2019-10-16 20:38

Product Details

Overview

Quick Details

Type:: Rock Splitter

Condition:: New

Application:: splitting machine

Motor Type:: Diesel or Electric

Place of Origin:: Shandong, China

Brand Name:: HengWangsplitting machine

Dimension(L*W*H):: Rock Splitter

Certification:: ISO

Warranty:: 1 Year

After-sales Service Provided:: Free spare parts, Online support, Video technical support, Field installation, commissioning and training, Field maintenance and repair service, Engineers available to service machinery overseas

Drilling Dia(mm):: 38-40MM

Real breaking force:: 660

Drilling deepth(mm):: 400 splitting machine

Theory breaking forcing(Tons):: 700

Piston inner Dia(mm):: 70/180

Splitter Length(mm):: 200

Splite Width(mm):: 10-40 splitting machine

Use:: Cement Brick

Supply Ability

Supply Ability:: 2000 Set/Sets per Month rock splitter

Packaging & Delivery

Packaging Details: export standard package
rock splitter gun

Port: Qingdao Tianjin Shanghai

Lead Time:

Quantity(Sets)	1 - 5	>5
Est. Time(days)	1	To be negotiated

Rock splitter

Hydraulic rock splitter , rock splitter wedge for sale

Rock splitting machine, also known as rock splitting machine, is a machine for splitting rocks. It is used in construction, decoration, engineering construction, ore mining.
Splitting machine|The structure of the splitter is mainly composed of hydraulic station, oil pipeline, splitting gun and decoupling. According to the type of power station, it can be divided into four types: electric type, diesel type, gasoline type and air motor. According to the split gun material can be divided into: steel split gun and aluminum split gun. It can also be classified according to the size of the split gun power.

Models

Model	HW90-250-1	HW90-250-2	HW90-250-3	HW90-250-4
piston diameter	90mm	90mm	90mm	90mm
drilling diameter	Φ50mm	Φ42mm	Φ45mm	Φ50mm
drilling depth	≧600mm	≧500mm	≧500mm	≧600mm
cheese block length	10~40mm	10~40mm	10~40mm	10~40mm
weight	30Kg	31Kg	32Kg	33Kg

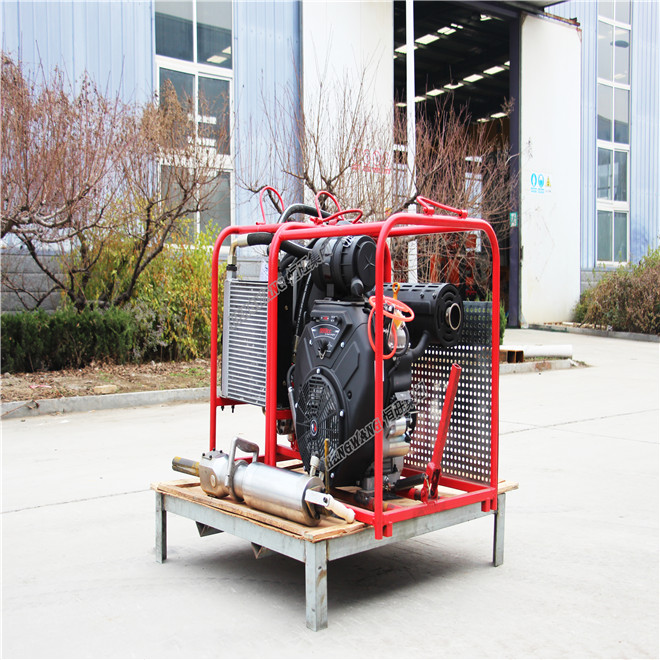

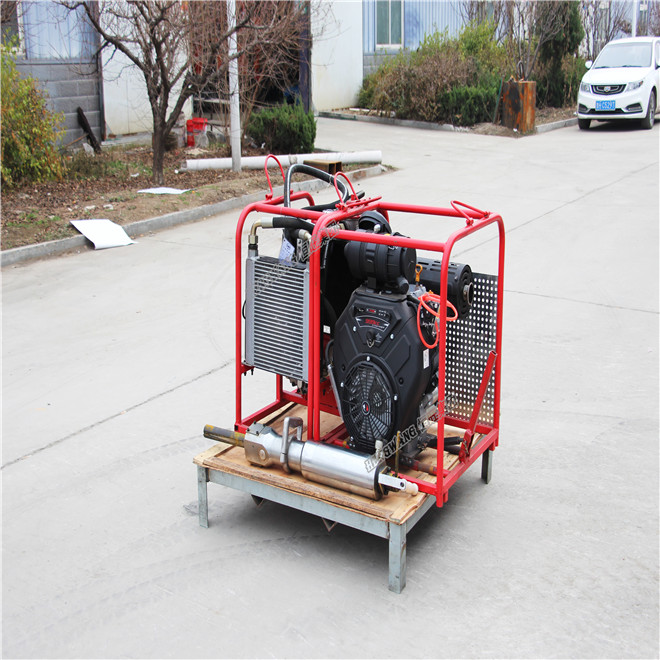

Hydraulic rock splitter
Engine			Gaoline engine /diesel engine
capacity of tank	15L	40L /88L	45L	65L/90L
motor power	1.5KW	4KW/7.5KW	4Hp	7Hp/7.5Hp
working pressure(Mpa)	55-60	55-60	55-60	55-60
working flow(L/min)	2-13	2-13	2-13	2-13
configurable splitting machine number	1-5	2-7/2-10	1-3	3-8/3-10
