Model | HW12B | Lifting Speed | 5 |
Rated Max Lifting Weight | 12000kg | Steering Speed | 2.6r/min |
Max Lifting Height | 32m | Driving Speed | ≤75km/h |
Engine Model | YZ4DB2-40 | Outrigger Span(V&H) | 5.1*5m |
Rated Power | 90kw | Overall Dimension(L*H*W) | 10.62*2.44*3.35M |
Chassis Model | BJ5155JQZ-2 |
|
Advantages
The boom structure adopts WISCO BS700 high-strength and high-toughness manganese steel sheet, and the shape adopts 7m×5-section U-shaped anti-folding boom.
Hoisting mechanism Double hook double hoisting, hydraulic winch for engineering vehicles
Slewing mechanism 1.4 m internal tooth turntable, two-stage planetary reducer, central radio guide rotary structure.
Leg design High-strength composite leg box steel with 70 manganese steel, side H-shaped double-legged shape with rear legs, 4 side attached
The service brake is hydraulically assisted and the brake is the brake brake.
Hydraulic system adopts double pump combined flow, multi-way valve single connecting rod, power take-off force, aluminum material forced air cooling radiator
Engine data Yuchai Guo V emission YC4E140-56 engine
Other fully flat walkway, rear operating room, box girders, motor, composite legs,

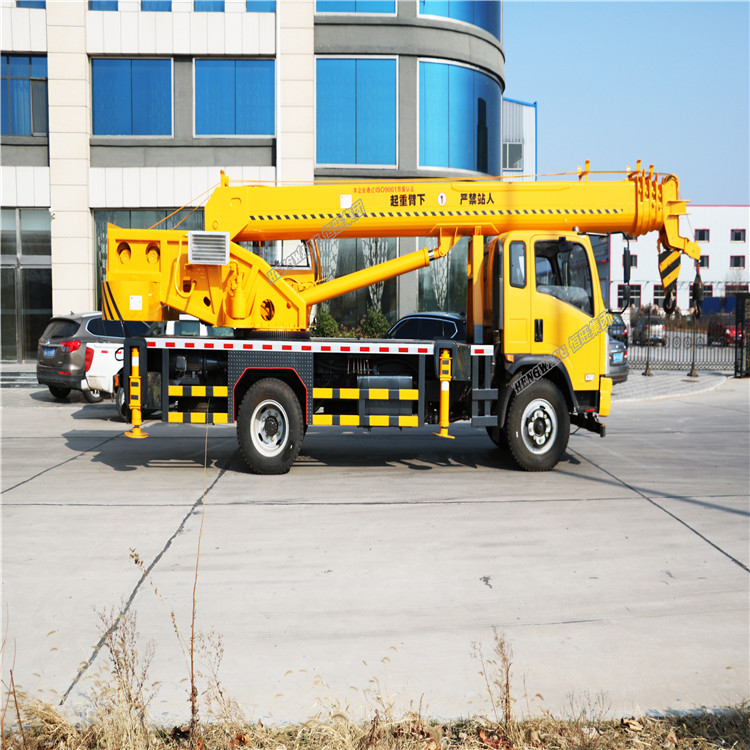

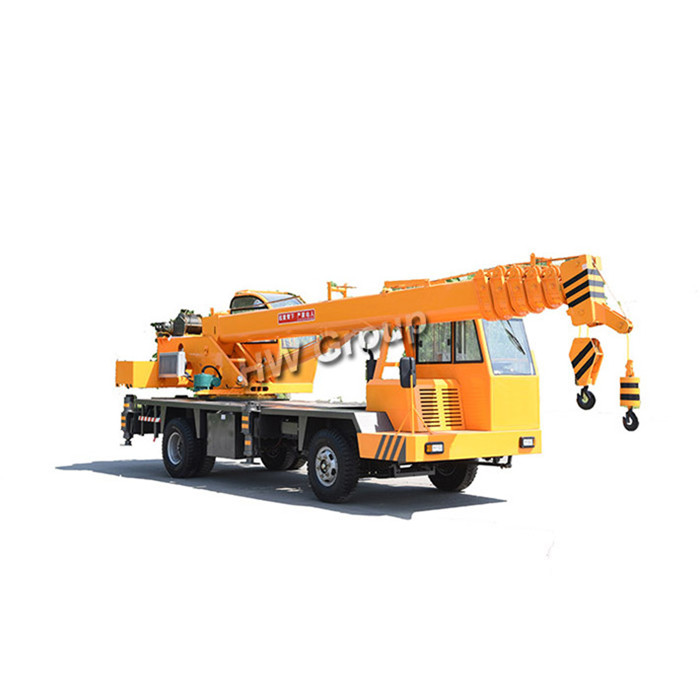

truck with crane , 8ton Truck Crane for sale mini truck mounted crane
truck with crane , 8ton Truck Crane for sale mini truck mounted crane
truck with crane , 8ton Truck Crane for sale mini truck mounted crane
truck with crane , 8ton Truck Crane for sale mini truck mounted crane
12 Ton Truck Crane(Foton,Tking,Kama,Dongfent Chassis Optional)
10 Ton Truck Crane(Foton,Tking,Kama,Dongfeng Chassis Optional)
8 Ton Truck Crane(Foton,Tking,Kama,Dongfeng Chassis Optional)
12 Ton Truck Crane(Home Made Chassis at Cheaper Price)
10 Ton Truck Crane(Home Made Chassis at Cheaper Price)
8 Ton Truck Crane(Home Made Chassis at Cheaper Price)
7 Ton Truck Crane(Home Made Chassis at Cheaper Price)
6 Ton Truck Crane(Home Made Chassis at Cheaper Price)
5 Ton Truck Crane(Home Made Chassis at Cheaper Price)
4 Ton Truck Crane(Home Made Chassis at Cheaper Price)
3 Ton Tractor Crane(Brand Chassis Optional)
3 Ton Tricycle Crane(Famous Shifeng Brand Chassis)
