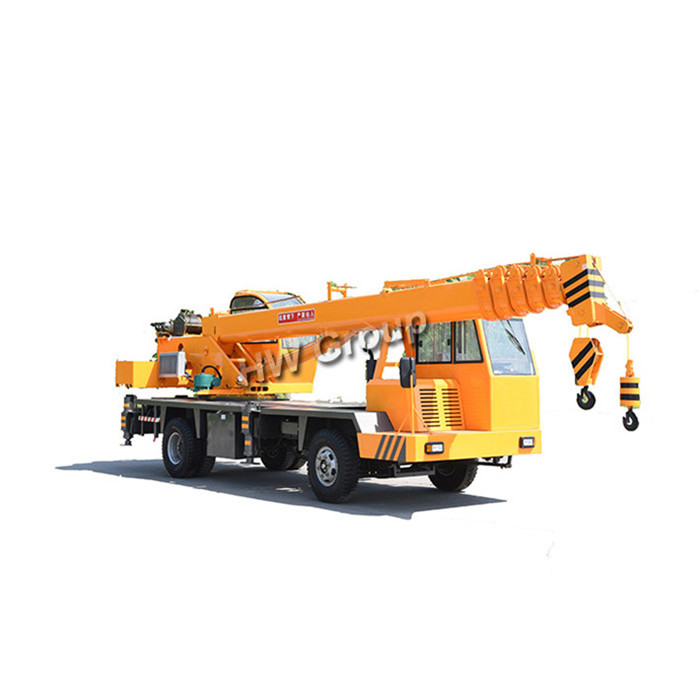

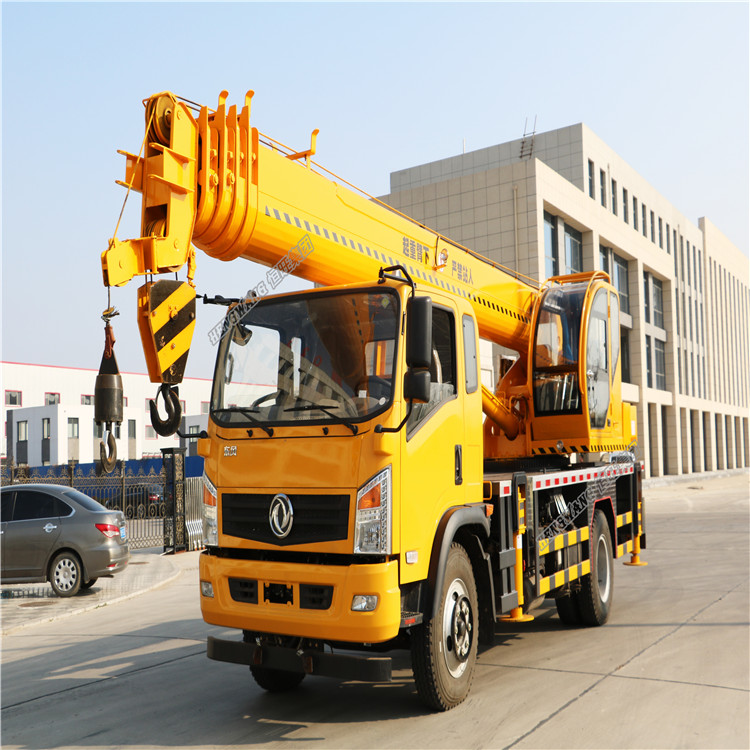

lattice boom truck crane 12ton crane truck for sale

Click on the image to view the original image

Product：	views：3lattice boom truck crane 12ton crane truck for sale
Branch：	heng wang
Unit Price：	Negotiated
Min.Order：
Supply：
Delivery：	Shipment within days since the date of payment
Valid until：	Long Term
Updated on：	2019-10-16 20:38

Product Details

Overview

Quick Details

Max. Lifting Height:: 29m

Warranty:: 3 years

After-sales Service Provided:: Field maintenance and repair service, Video technical support, Online support

Feature:: Truck Crane

Condition:: New

Application:: Construction

Rated Loading Capacity:: 12000kg

Rated Lifting Moment:: 350kn.m

Span:: 5.1*4.95m

Place of Origin:: Shandong, China

Brand Name:: heng wang

Certification:: ISO

Product name:: lattice boom truck crane12ton crane truck for sale

Engine:: yuchai

Power:: 95KW

Max. travel speed:: 75km/h

Boom type:: 7m*5-section U-shaped anti-folding boom.

Chassis brand:: DongFeng.FAW.Foton.Sino.JAC.IVECO.Shacman

Capacity:: 8--25 Ton Truck Crane

Crane type:: Truck Crane Mobile Crane Hydraulic Crane

Emission standard:: Euro3/4

Keyword:: 12 Ton Truck Mounted Crane

Packaging & Delivery

Selling Units:: Single item

Single volume:: 87 cm³

Single gross weight:: 13580.0 kg

Lead Time:

Quantity(Set)	1 - 1	>1
Est. Time(days)	15	To be negotiated

Product Description

Model	HW12B	Lifting Speed	5
Rated Max Lifting Weight	12000kg	Steering Speed	2.6r/min
Max Lifting Height	32m	Driving Speed	≤75km/h
Engine Model	YZ4DB2-40	Outrigger Span(V&H)	5.1*5m
Rated Power	90kw	Overall Dimension(LHW)	10.622.443.35M
Chassis Model	BJ5155JQZ-2

Advantages

The boom structure adopts WISCO BS700 high-strength and high-toughness manganese steel sheet, and the shape adopts 7m×5-section U-shaped anti-folding boom.
Hoisting mechanism Double hook double hoisting, hydraulic winch for engineering vehicles
Slewing mechanism 1.4 m internal tooth turntable, two-stage planetary reducer, central radio guide rotary structure.
Leg design High-strength composite leg box steel with 70 manganese steel, side H-shaped double-legged shape with rear legs, 4 side attached
The service brake is hydraulically assisted and the brake is the brake brake.
Hydraulic system adopts double pump combined flow, multi-way valve single connecting rod, power take-off force, aluminum material forced air cooling radiator
Engine data Yuchai Guo V emission YC4E140-56 engine
Other fully flat walkway, rear operating room, box girders, motor, composite legs,
