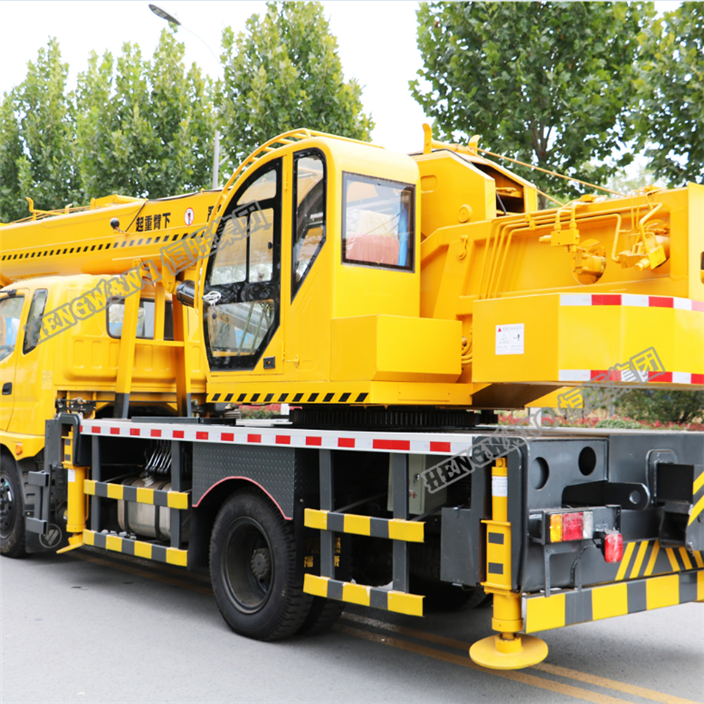

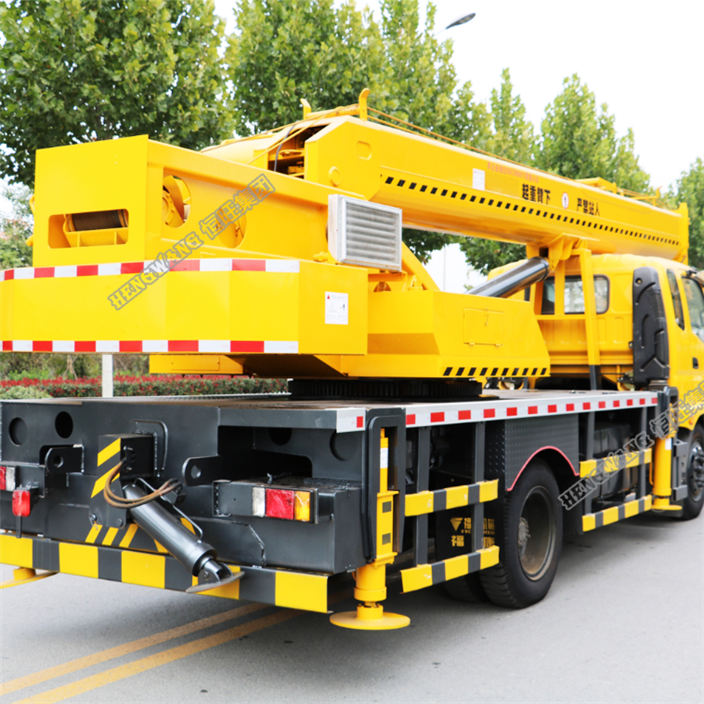

New Condition and Truck Crane Feature HOWO 6x4 10ton folding boom truck mounted crane

It is a type of crane mounted on a common automobile chassis or a special automobile chassis, and its driving cab is separately provided from the hoisting operating room. The advantage of this type of crane is that it has good mobility and rapid transfer.
Mainly used for engineering construction.
Such as: roads, bridges, buildings, rescue and so on.
General engineering team, construction industry, power installation department, all need truck crane

Advantage

1, better performance
The layout of the whole machine is optimized, the main load-bearing members are more reasonable in force, and the lifting performance exceeds the same tonnage products in the industry.
The mature boom technology combining the inserted arm head, the embedded arm block and the special telescopic mechanism makes the boom expansion and contraction more stable and high reliability.
Optimized for force design, with new box legs, larger span, stronger stiffness and better stability.
2, the quality is more reliable
With the classic boom telescopic technology, the work is safer and more reliable.
Carefully build the most complete safety device system in the industry to ensure safe and reliable lifting operations.
Fully upgraded brake system, dual-circuit air pressure design, multiple systems to ensure the safety of the vehicle while driving.
The high rigidity of the turntable and frame structure is completely coordinated with the strength and rigidity.
The perfect combination of design and structural process manufacturing, complete automation of welding and higher reliability.
3, maintenance is easier
The new optimized design of pipeline routing, the layout is more scientific and reasonable, greatly shortening the pipeline disassembly time and reducing maintenance costs.
The electrical system is fully upgraded, and a number of electronic devices are available in optional configurations. All of them are equipped with anti-leakage connectors, which greatly extend the service life of components.
Adopt anti-corruption rope technology to improve the efficiency of lifting work, reduce labor intensity and extend the life of steel rope.
The carefully designed telescopic wire rope guiding and guarding device prevents the wire rope from being broken.
4, energy saving and more environmentally friendly
The electromechanical dual-purpose hydraulic system is more environmentally friendly and economical.
Adopting advanced machine matching technology, the design is more scientific, the mechanism loss is reduced, the service life of the whole machine is extended, and the residual value of the equipment is high.

6 Ton truck crane

Lifting capacity : 6000KGS
Lifting capacity : 26M
Diesel engine power : 70KW
Electric power : 11KW
Machine size :8.68*2.1*2.9 m
Outrigger span:4.3*3.6 m
Speed :≤80km/h

8 Ton truck crane

Lifting capacity : 8000KGS
Lifting capacity : 36M
Diesel engine power : 70KW
Electric power : 11KW
Machine size :8.68*2.1*2.9 m
Outrigger span:4.3*5 m
Speed :≤80km/h

10 Ton truck crane

Lifting capacity : 10000KGS
Lifting capacity : 33M ,35M,40M
Diesel engine power : 110KW
Electric power : 11KW
Machine size :10.06*2.20*3.05 m
Outrigger span:5.1*5m or 6*6m
Speed :≤80km/h
