Home > Products > HW Brand Manufacturer direct sale truck mounted hydraulic water well drilling rig machine for industry
HW Brand Manufacturer direct sale truck mounted hydraulic water well drilling rig machine for industry
Click on the image to view the original image
Product： views：3HW Brand Manufacturer direct sale truck mounted hydraulic water well drilling rig machine for industry
Branch： HW
Type： Rotary Drilling Rig
Unit Price： Negotiated
Min.Order：
Supply：
Delivery： Shipment within days since the date of payment
Valid until： Long Term
Updated on： 2019-10-16 20:38
  Negotiated
Product Details
Overview
Quick Details
Condition:
New
Type:
Rotary Drilling Rig
Power Type:
Diesel
Place of Origin:
Shandong, China
Brand Name:
HW
Usage:
Water Well
Voltage:
NO
Dimension(L*W*H):
5000*2500*2300
Weight:
5000
Certification:
ISO
Warranty:
1 Year
After-sales Service Provided:
Video technical support, Free spare parts, Online support, Field installation, commissioning and training, Field maintenance and repair service, No after-sales service
Drilling depth:
300m
Drilling diameter:
75-500mm
Name:
Hydraulic Water Well Drilling Machine
Engine:
Yuchai
Engine power:
20KW
Spindle Speed:
64/128/287/557r/m
Color:
Customised
Drilling method:
Top Drive Hydraulic Rotary Drilling
Drill angle:
0-360
Drill rod length:
water well drill rig
Supply Ability
Supply Ability:
10 Set/Sets per Month Hydraulic Water Well Drilling Machine
Packaging & Delivery
Packaging Details
Hydraulic Water Well Drilling Machine
Port
qingdao/dalian/shanghai/guangzhou
Lead Time:
Quantity(Sets)1 - 1 >1
Est. Time(days)15To be negotiated
Video Description
Product Description

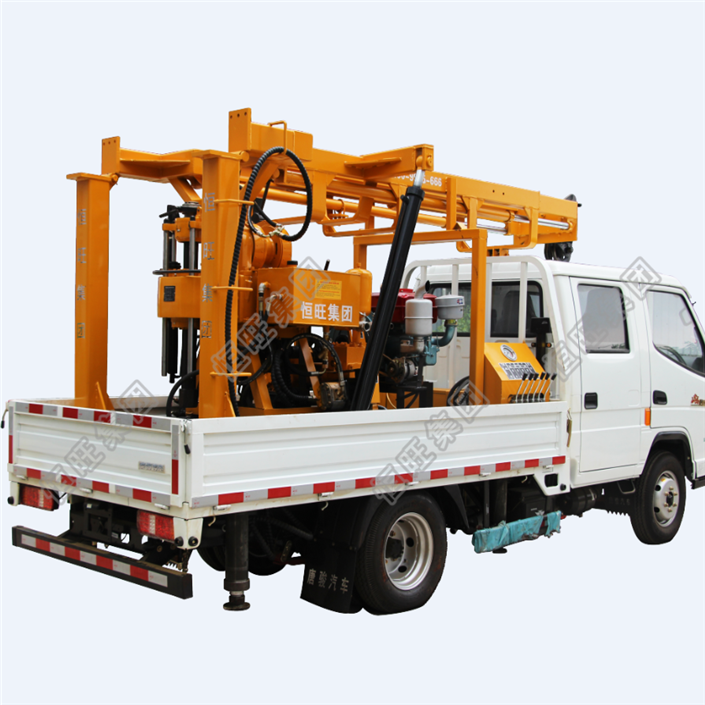

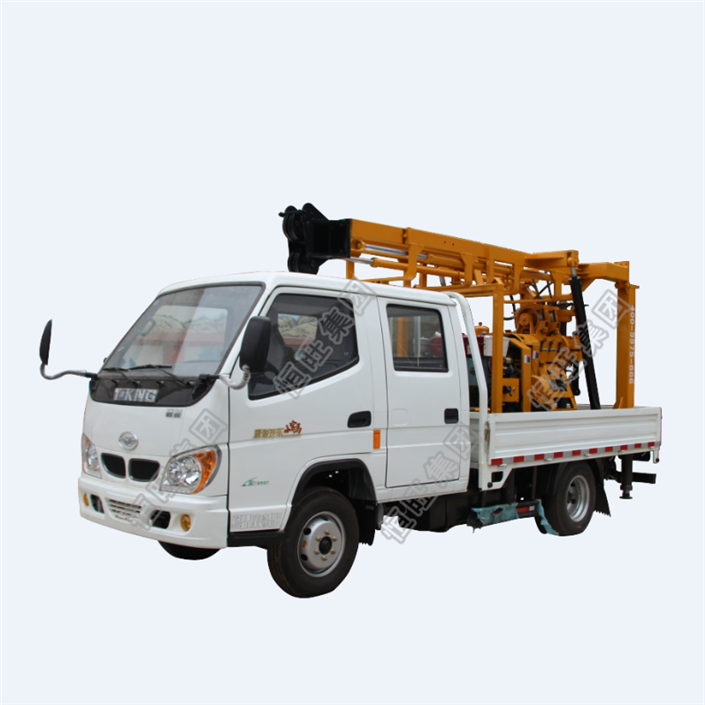

HW Brand Manufacturer direct sale truck mounted hydraulic water well drilling rig machine for industry

Main Feature:
1. Car drilling rig is a multi-functional hydraulic vehicle vertical shaft rotary drilling rig
2. The chassis of the car is equipped with Tang Jun car, rig drive system and hoisting, mud pump and other important accessories installed on this chassis, the layout is reasonable and compact, easy to operate
3. Configure BW-160 mud pump with high pressure and large flow to ensure drilling depth and drilling diameter
4. The rig is equipped with a mobile device, which can realize the movement of the rig itself before and after, which is convenient for wellhead operation.
5, the rig tower hydraulic landing gear folding rig, safe and convenient operation.
Adaptation:
Geological survey exploration, road and high-rise building foundation exploration, as well as various concrete structure inspection holes, river dams, roadbed grouting holes and direct grouting, civil water wells and ground temperature central air conditioning.HW Brand Manufacturer direct sale truck mounted hydraulic water well drilling rig machine for industry

                                                        SPECIFICATIONS FOR HWC-230 WATER WELL DRILLING RIG



















Car  Custom Made





HWC-230 drilling rig main parameters
Max. Drilling depth
230
Max open hole caliber
500mm
End hole caliber
75mm
Drill rod caliber
50mm
Drilling angle
Drilling angle
Drill weight (without power)
975kg
Triangle conveyer belt
B950 x 4 B1700 x 3
The main machine moving distance
300mm
Power
Diesel engine 22HP Electric motor 15kw
      Spindle
Spindle speed
64, 128, 287, 557r/min
Spindle stroke
450mm





    Hoist
Max.lifting capacity
2400kg
Single line lifting speed
0.41, 0.82, 1.64m/s
Wirerope caliber
13mm
Wirerope length
35m
Reel diameter
140mm
Hug floodgate caliber
260mm
Hug folldgate belt width
70mm





    Mud pump
Type
Horizontal single-urn twin-action
Max.flow
Diesel engine 170L/min
Max. presure
3MPA
Work pressure
1.5MPA
Inlet pipe caliber
40mm
Outlet pipe caliber
40mm
  Hydralic oil pump
Type
CBT-F-314
Triangle conveyer belt
B1100 X 1
