New manufacturer full hydraulic drilling rig portable digging water well machines borehole drilling machine factory price

Click on the image to view the original image

Product：	views：4New manufacturer full hydraulic drilling rig portable digging water well machines borehole drilling machine factory price
Branch：	HW
Type：	Rotary Drilling Rig
Size：	500X250X230 cm
Unit Price：	Negotiated
Min.Order：
Supply：
Delivery：	Shipment within days since the date of payment
Valid until：	Long Term
Updated on：	2019-10-16 20:38

Product Details

Overview

Quick Details

Applicable Industries:: Construction works

Condition:: New

Type:: Rotary Drilling Rig

Power Type:: Diesel

Place of Origin:: Shandong, China

Brand Name:: HW

Usage:: Water Well

Voltage:: NO

Dimension(L*W*H):: 5000*2500*2300

Weight:: 5000

Certification:: ISO

Warranty:: 1 Year

After-sales Service Provided:: Video technical support, Free spare parts, Online support, Field installation, commissioning and training, Field maintenance and repair service, No after-sales service

Drilling depth:: 300m

Drilling diameter:: 75-500mm

Name:: Water Well Borehole Drilling Machine

Engine:: Yuchai

Engine power:: 20KW

Spindle Speed:: 64/128/287/557r/m

Color:: Customised

Drilling method:: Top Drive Hydraulic Rotary Drilling

Drill angle:: 0-360

Drill rod length:: water well drill rig

Packaging & Delivery

Selling Units:: Single item

Single package size:: 500X250X230 cm

Single gross weight:: 5000.0 kg

Package Type:: New manufacturer full hydraulic drilling rig portable digging water well machines borehole drilling machine factory price

Lead Time:

Quantity(Set)	1 - 1	>1
Est. Time(days)	7	To be negotiated

Product Description

Main Feature:

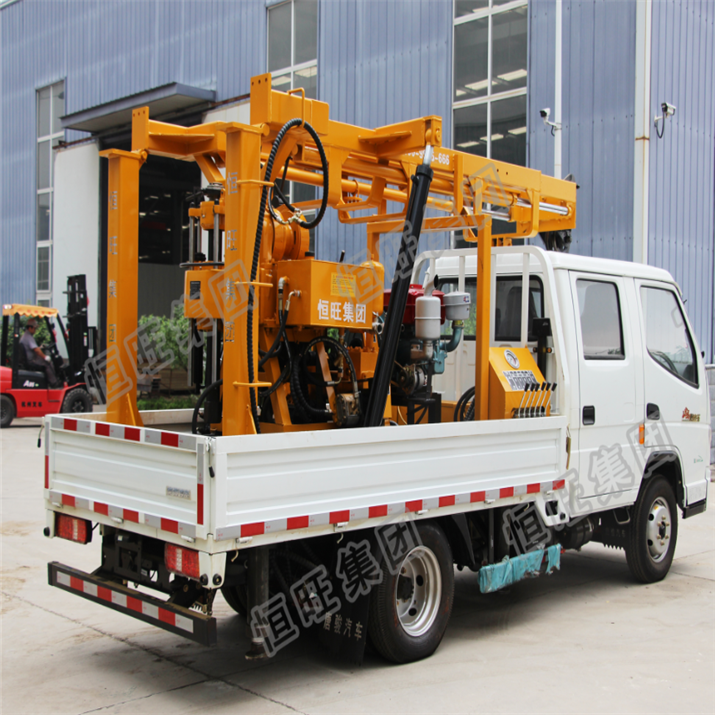

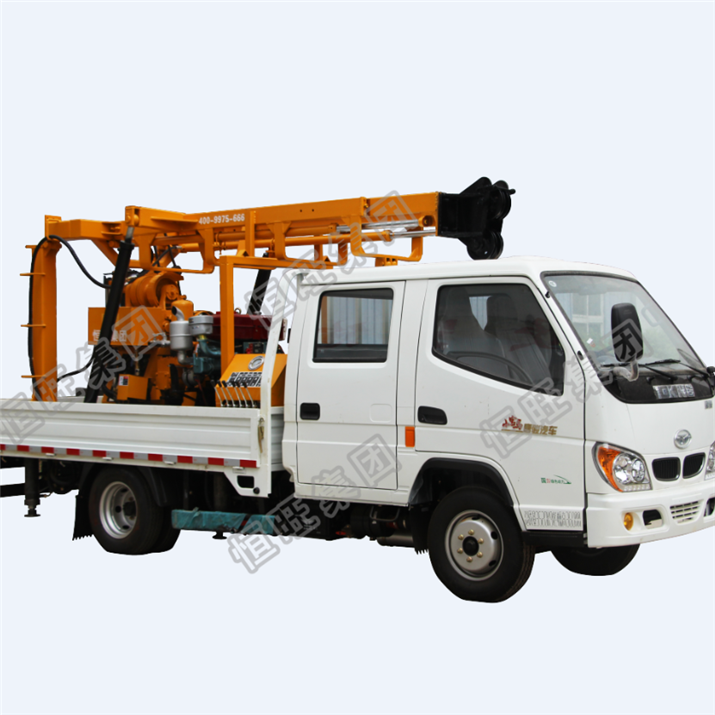

1. Car drilling rig is a multi-functional hydraulic vehicle vertical shaft rotary drilling rig
2. The chassis of the car is equipped with Tang Jun car, rig drive system and hoisting, mud pump and other important accessories installed on this chassis, the layout is reasonable and compact, easy to operate
3. Configure BW-160 mud pump with high pressure and large flow to ensure drilling depth and drilling diameter
4. The rig is equipped with a mobile device, which can realize the movement of the rig itself before and after, which is convenient for wellhead operation.
5, the rig tower hydraulic landing gear folding rig, safe and convenient operation.
Adaptation:
Geological survey exploration, road and high-rise building foundation exploration, as well as various concrete structure inspection holes, river dams, roadbed grouting holes and direct grouting, civil water wells and ground temperature central air conditioning.HW Brand Professional manufacture 200m small hydraulic water well drilling machine for sale

SPECIFICATIONS FOR HWC-230 WATER WELL DRILLING RIG
Car Custom Made	HWC-230 drilling rig main parameters	Max. Drilling depth	230
		Max open hole caliber	500mm
		End hole caliber	75mm
		Drill rod caliber	50mm
		Drilling angle	Drilling angle
		Drill weight (without power)	975kg
		Triangle conveyer belt	B950 x 4 B1700 x 3
		The main machine moving distance	300mm
		Power	Diesel engine 22HP Electric motor 15kw
	Spindle	Spindle speed	64, 128, 287, 557r/min
	Spindle	Spindle stroke	450mm
	Hoist	Max.lifting capacity	2400kg
		Single line lifting speed	0.41, 0.82, 1.64m/s
		Wirerope caliber	13mm
		Wirerope length	35m
		Reel diameter	140mm
		Hug floodgate caliber	260mm
		Hug folldgate belt width	70mm
	Mud pump	Type	Horizontal single-urn twin-action
		Max.flow	Diesel engine 170L/min
		Max. presure	3MPA
		Work pressure	1.5MPA
		Inlet pipe caliber	40mm
		Outlet pipe caliber	40mm
	Hydralic oil pump	Type	CBT-F-314
	Hydralic oil pump	Triangle conveyer belt	B1100 X 1

New manufacturer full hydraulic drilling rig portable digging water well machines borehole drilling machine factory price

Detailed Images

New manufacturer full hydraulic drilling rig portable digging water well machines borehole drilling machine factory price

New manufacturer full hydraulic drilling rig portable digging water well machines borehole drilling machine factory price

Packing & Delivery

New manufacturer full hydraulic drilling rig portable digging water well machines borehole drilling machine factory price

New manufacturer full hydraulic drilling rig portable digging water well machines borehole drilling machine factory price

Our Company

New manufacturer full hydraulic drilling rig portable digging water well machines borehole drilling machine factory price

New manufacturer full hydraulic drilling rig portable digging water well machines borehole drilling machine factory price

Certifications

New manufacturer full hydraulic drilling rig portable digging water well machines borehole drilling machine factory price

New manufacturer full hydraulic drilling rig portable digging water well machines borehole drilling machine factory price

Foreign Exhibition

New manufacturer full hydraulic drilling rig portable digging water well machines borehole drilling machine factory price

New manufacturer full hydraulic drilling rig portable digging water well machines borehole drilling machine factory price

Contact Information

New manufacturer full hydraulic drilling rig portable digging water well machines borehole drilling machine factory price

Name:Aggy

Email: hw002(at)hengwanggk.com

Skype : hengwangaggy

Wechat/Whatsapp:+8613508973211

QQ: 2853024707

Mobile:+8613508973211.
