Jining Hengwang Mining Machinery Co., Ltd.

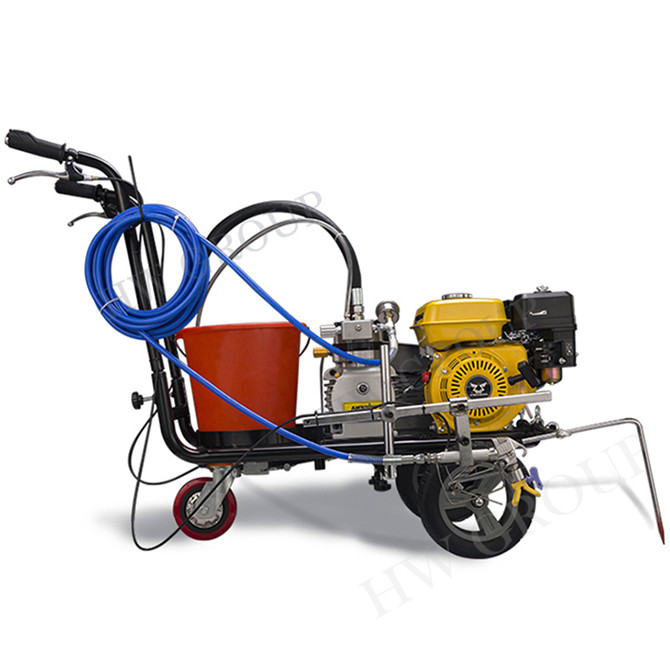

High quality road marking machine for sale

1.Airless spraying paining technology for which the high-pressure pump is drivenby a gasoline engine as been adopted in the line marking machine to create clear,smooth, saturating and even limes, providing a high working efficiency;
2.Both sides of the spraying gun are equipped with a limiting disc plates, ensuringthe line free of raw edges, such plates may be lift through a pulling line insteering, turning flexibly;
3.The spraying gun may be conveniently dismantle different nozzles and control theline width, suitable for common airless spraying for marking or labels;
4. Road line marking machine runs by pushing,with convenient turning ,reliable orientation and flexible turning.

Main Features

1.More stable:
Through gravity adjustment, widened front wheel, the Marking Machine is more stable than traditional ones when marking 450mm zebra crossing.
2.Lighter:
Through repeatedly gravity test, rechoose new shaft, the marking machine is much lighter, reduced operator"s working intensity. So the marking works become easier and more effectively.
3.Easy to operate:
Marking hopper"s operating range minimized from 300mm to 200mm, more accurately , easier to control, therefore such problems as slow hopper withdrawal and uneven finishing mark edge are solved. A multi-point sliding block pressing structure is used to avoid material leakage witch often occurs to similar products due to the two tightly pressed sides and large deformation in the middle of product alike.

Cold paint one/two spraying guns

Max output pressure;250bar                                                            Max nozzles:0.025mm                                                                      Nozzle standardconfiguration:0.019mm                                     High pressure pipe length:15m                                                  Unloading flow:8L/min                                                                          High pressure pipecompressionstrength:>=350bar Weight:94kg

Thermoplastic Road makingMachine

Stainless steel Tank Capacity :75kg                                                Line width: 10CM and 15CM                                                 Thickness:1.0-2.5mm                                                                     Speed:1.5km/h                                                                                   Heating temperature:180-210℃

Ride om road marking machine

Engine power : 5.5HPMarkingwidth:50/80/100/120/150/180/200/230/250/300/400/450mm                                                                                      Weight: 135Kgs
Glass beads storagebox:10KG/box
