Multifunctional hydraulic pile driver machine/pole drilling machine/screw photovoltaic pile driver

Multifunctional hydraulic pile driver machine/pole drilling machine/screw photovoltaic pile driver

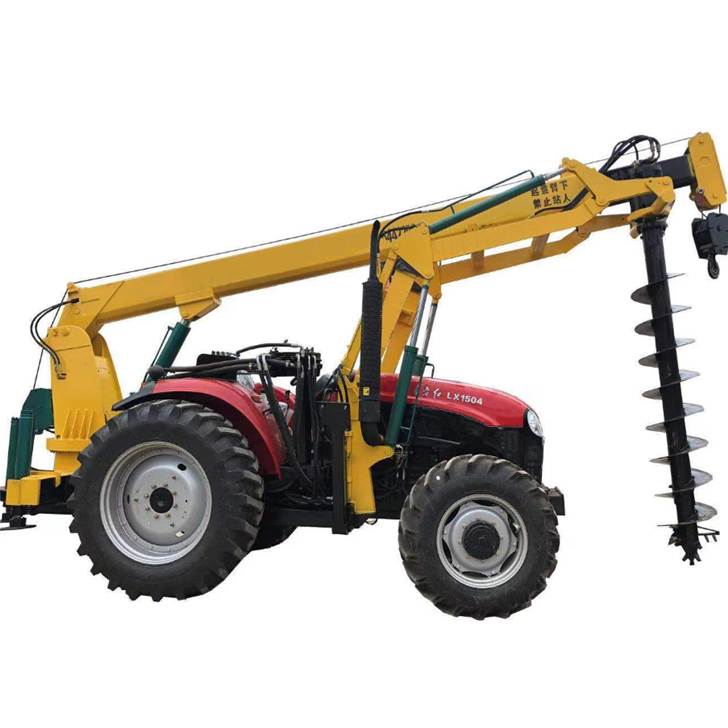

The crane drilling integrated machine is a new type of engineering equipment independently developed by our factory. The equipment adopts four-wheel drive tractor as the power, collecting drilling and digging pits, hoisting electric poles as one, and the diameter of the digging pit can be reached. 0.8 m, standard depth: 3-7 m.

All hydraulic control, easy to operate, single person can complete the operation, drilling speed is fast, drilling speed is fast, then the normal yellow clay layer fastest drilling speed is 47 seconds, drilling diameter is 800mm, depth It is 7meters. The hard soil layer, for example, the roadbed and the foundation, guarantees that the drilling speed is 1 minute without large stones, and the permafrost can be equipped with the drilling speed of the frozen soil drill for about 5 minutes.

The key bit is installed on the second section of the boom, and the cross-ditch span is drilled. The machine can rotate 360 degrees, and can rotate the drill boom when the main body is not moving, which greatly improves the work efficiency.

Tractor mounted drilling, which is easier to operate than other manufacturers" rear-mounted drilling machines.  554 or 804 tractors, with large horsepower and abundant power. The drilling does not require clearing the soil, and one person can complete the work. After drilling to the depth, the reliable boom is lifted, and the soil is attached to the spiral blade, and there is little fallback. After lifting, simply turn the drill pipe back and forth to record the soil and it will fall naturally.  can be operated by a single person, the car to the hole, and the while to go. Greatly improve work efficiency. lifting height is divided into: 13 meters, 15 meters, lifting weight is 3T, 5T. It is modified by four-wheel drive tractor, and the off-road performance is good. greatly rid themselves of the limitations of the conventional cranes to limit the terrain, and can be easily cited in narrow alleys, rural fields, paddy fields, hills and other areas. It is especially suitable for power construction units and other construction units that can work in
