12T crane with pile driver

Click on the image to view the original image

Product：	views：312T crane with pile driver
Branch：	HW
Unit Price：	Negotiated
Min.Order：
Supply：
Delivery：	Shipment within days since the date of payment
Valid until：	Long Term
Updated on：	2019-10-16 20:39

Product Details

Overview

Quick Details

Max. Lifting Height:: 27m

Warranty:: 2 Years

After-sales Service Provided:: Field installation, commissioning and training, Engineers available to service machinery overseas

Feature:: Truck Crane

Condition:: New

Application:: Construction

Rated Loading Capacity:: 12T

Rated Lifting Moment:: 360KN.M

Span:: 6M

Place of Origin:: Shandong, China

Brand Name:: HW

Certification:: ISO

Model:: HydraulicTruck Crane

Supply Ability

Supply Ability:: 1000 Set/Sets per Year HydraulicTruck Crane

Packaging & Delivery

Packaging Details: HydraulicTruck Crane Without package

Port: QINGDAO

Product Description

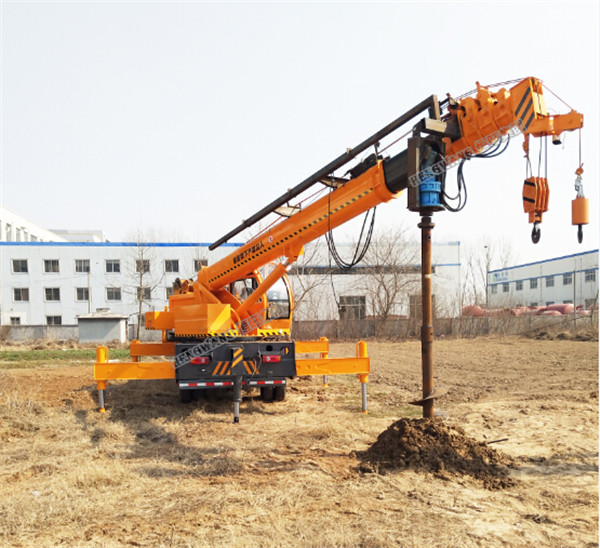

Pipe driver collection hole is dug and the pole is hoisted, and the diameter of the pit can be reached. 0.6 m, standard depth: 3 m. Features: All hydraulic control, easy to operate, single operation can be completed, drilling speed is fast, drilling speed is fast, then the normal yellow clay layer fastest drilling speed is 47 seconds, drilling diameter is 500mm, depth is 1 Rice. Hard soil layer, for example: roadbed, foundation, guarantees that the drilling speed is 2 minutes without large stones, and the permafrost can be equipped with permafrost drills for about 5 minutes.

Product model	HW12B
Total mass kg	15800
Overall dimension mm	10620mm2440mm3350mm
Rated elevating capacity kg	12000
Max Lifting Moment KN.M	360
Max. Lifting Height m	27m
Main hook single load kg	12000
Main hook single elevating speed m/min	76
Auxiliary hook single load kg	1500
Auxiliary hook lifting speed m/min	55
Engine model	YZ4DB2-40
Displacement/rated power(ml/kw)	4087/90
Horsepower	120
Derailleur model	17D32F1
Wheel base(mm)	4400
Max speed (km)	80
Tires	9.00-20
Braking form	Vacuum booster
Steering form	GBΦ1000 Tooth 50MN Intermediate frequency
Crane arm structure	U shape boom(multi shape boom)
Main Lifting Mechanism	Category two planet wheel with a brake inside
Auxiliary Lifting Mechanism	Category one gear brake motor
Swing Bearing	11.40.1120
Platform	High strength
Dynamic Motor	A2F55W
Crane Start	Tailor-made
Throttle	Hydraulic
Warning Horn	Mono snail
Power Takeoff	Driving indoor operation zip type

Figure photos
