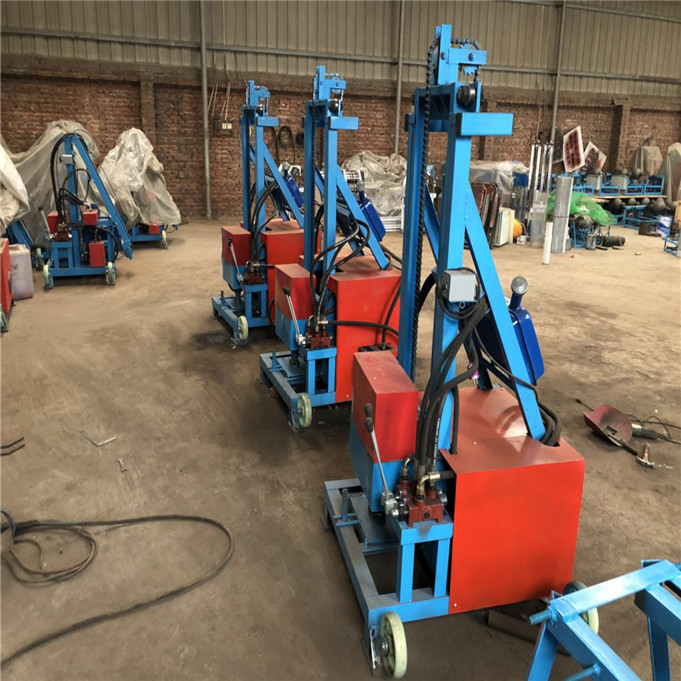

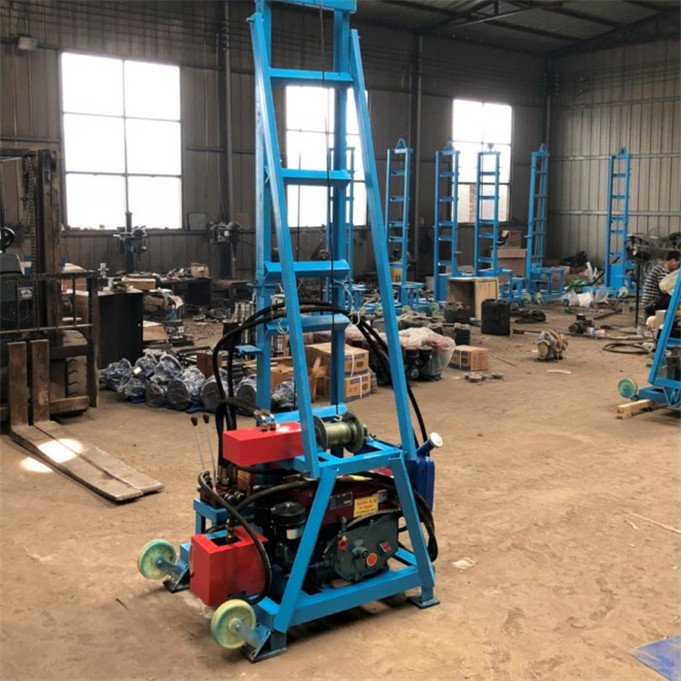

HWBrandPortable Hydraulic Water Well Drilling Rig/Water Well Drilling and Rig Machine for sale

The small well-drilling machine is so popular because it has many characteristics, which are the real reasons for its popularity.
The water drilling  rig first point: easy installation and transport performance.

HWBrandPortable Hydraulic Water Well Drilling Rig/Water Well Drilling and Rig Machine for sale
Well drilling rig second point: a high-strength gear reduction drive with a large shackle capacity.

HWBrandPortable Hydraulic Water Well Drilling Rig/Water Well Drilling and Rig Machine for sale
Water well rig  third point: the rail is easy to install and disassemble, and has interchangeability.

HWBrandPortable Hydraulic Water Well Drilling Rig/Water Well Drilling and Rig Machine for sale
Water drilling machine fourth point: the top drive body can be directly connected to the ride through the transition ring, reducing the working height of the entire device

HWBrandPortable Hydraulic Water Well Drilling Rig/Water Well Drilling and Rig Machine for sale

 Water well machine  fifth point: the wells and the drills use different load channels to extend the service life of the main bearings.

Oil drilling rig  the back clamp uses four-point floating clamping, which improves the clamping ability of the back clamp and reduces the damage to the drill.

The well drilling machine  seventh point: use the hydraulic floating cylinder to balance the weight of the main body of the top drive, which can protect the thread of the drill connector during the shackle operation.

The drilling rig eighth point: the hydraulically controlled rotary head device can drive the tilting mechanism of the lifting ring to rotate 360o, and has a level locking.

 What types of common drilling machines are available;

Well drilling machines are generally mainly used for the development of groundwater, including rural domestic water, agricultural water and industrial water. It can also be used for large-scale water quality exploration, construction, drilling and other large-scale work, then the common common drilling machine What types are there?

1. The impact type well drilling machine uses a wire rope to send the impact bit to the well position. The power device drives the impact mechanism and drives the wire rope and the drill bit to impact up and down. The electric drill pipe drilling machine drills the rock and drills. This is an ancient drilling method with simple equipment and low cost, but the drilling and fishing must be alternated, so the drilling speed is slow.

2. The rotary drilling machine is driven by a power-driven turntable, which drives the drill pipe and the drill bit to rotate together to cut and grind the rock and drill. The well drilling machine deepens and deepens with the drill pipe, and the cuttings are brought along with the circulating mud. ground. It drills faster than the impact drilling machine and is easy to handle the collapse.

3. The composite drilling machine is to add a rotary drilling tool to the drill bit, and use the circulating liquid or gas to push the mandrel of the rotary drilling tool, so that the drill bit can be drilled by breaking the rock in both impact and rotation.

Parameters

HWBrandPortable Hydraulic Water Well Drilling Rig/Water Well Drilling and Rig Machine for sale

Model HW150

Drill pipe diameter 42mm

Dimensions 2.77*0.83*0.9m

Drill pipe length 1.5m

Machine weight 200Kg

Drill pipe replacement method thread

Applicable voltage 220V

Drilling crushing impact rotary

Motor power 1.5KW, 2000W

Drilling depth 150 meters
