Home > Products > Man portable mountain core drilling rig
Man portable mountain core drilling rig
Click on the image to view the original image
Product： views：3Man portable mountain core drilling rig
Branch： HengWangrock drilling rig
Type： Core Drilling Rig
Unit Price： Negotiated
Min.Order：
Supply：
Delivery： Shipment within days since the date of payment
Valid until： Long Term
Updated on： 2019-10-16 20:39
  Negotiated
Product Details
Overview
Quick Details
Condition:
New
Type:
Core Drilling Rig
Power Type:
Gasoline
Place of Origin:
Shandong, China
Brand Name:
HengWangrock drilling rig
Usage:
rock drilling rig
Voltage:
Gasoline Engine
Dimension(L*W*H):
rock drilling rig
Weight:
440KG
Certification:
CE ISO SGS
Warranty:
1 Year
After-sales Service Provided:
Video technical support, Free spare parts, Online support, Field installation, commissioning and training, Field maintenance and repair service, Engineers available to service machinery overseas
drilling depth:
30m
mini sample drill weight:
440KG
mini sample drill condition:
new
Smallsample drill brand:
HengWang
Core Sample drill speed:
1920r/min
mini sample dill rig color:
customer need
Coredrilling rig:
450mm
Core Sample drill:
30m
power:
gasoline
Supply Ability
Supply Ability:
1000 Set/Sets per Month rock drilling rig
Packaging & Delivery
Packaging Details
rock drilling rigStandard Exported Package
Port
Qingdao Shanghai Tianjin
Product Description

Mountain drill portable core drilling rig for sale

30 type mountain drilling rig is a kind of mountainous seismic exploration and drilling equipment newly developed and produced by our company and can be widely used in the rugged mountains and other areas where vehicle rigs can not work. Using different media, the drilling rig can realize different drilling methods such as mud drilling, air drilling and air hammer drilling, and adapt to different formation environments. The drilling mud method can reach a depth of 30 meters, while the air drilling or air hammer drilling depth can reach 15 meters.
The main parts include assembly rig winches, gearboxes, rotors, pulleys, powertrain, and drilling rigs with different configurations such as mud drilling, air hammer drilling, air drilling.
Drive gearbox, easy to operate and maintain, low labor intensity. Drilling engine based on ease of movement and drilling. Self-winch, can enhance the drill pipe and drill bit.

Mountain drill portable core drilling rig  parameter

                                                                  Portable 30M depth   Drilling rig for mountain parameter
Drilling method
Air shock drilling
Maximum Drilling hole diameter
90mm
Drilling depth
30M
Pipe
60mm
One-time drilling length
3000MM
                                                                                               Power head
Rated torque (N.m)
800-900
Drilling speed range (r/min)
0-135
                                                            Drilling machine pressure and lifting function
       Feed pressure (N)
5500-6000
Drilling tool lifting power (kN)
12-14
Maximum lifting speed of drilling tools (m/s)
0.71-0.81
Engine power (hp) / speed (r/min)
27/3600
                                                                                       Weight and size
Total weight(rig)
440kg
Overrall diamensions
2100*1900*1600mm
Detailed Images

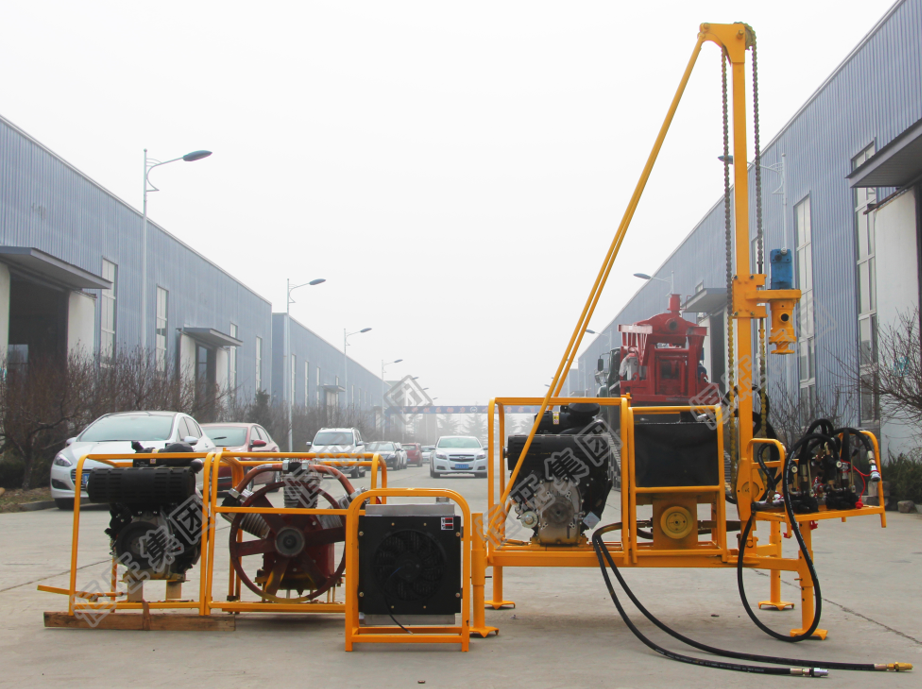

Mountain drill portable core drilling rig for sale

Packing & Delivery

Mountain drill portable core drilling rig packing within wooden case

Certifications

Mountain drill portable core drilling rig

Our Company

Mountain drill portable core drilling rig
