Product Description
Product Application
480T hydraulic rock spliter with hydraulic cylinders :
is our newly developed Product which is a powerful and extremely cost-effective alternative to other conventional demolition tools. It can develop a very huge splitting force (Maximum 1000 T) when it put into the pre- drill holes of rock or concrete and crack it into pieces within several seconds
480T hydraulic rock spliter with hydraulic cylinders Techanical Parameters:
Rock /stone splittler with hydraulic Gun | ||||||
Model | HW80-250 | HW80-350 | HW80-450 | HW90-250 | HW90-350 | HW90-450 |
Piston diameter | 80mm | 80mm | 80mm | 90mm | 90mm | 90mm |
Drilling diameter | 42mm | 45mm | 50mm | 42mm | 45mm | 50mm |
Drilling depth | 500mm | 550mm | 600mm | 500mm | 550mm | 600mm |
The length of the wedge | 250mm | 350mm | 450mm | 250mm | 350mm | 450mm |
Crack width | 10-40mm | 10-40mm | 10-40mm | 10-40mm | 10-40mm | 10-40mm |
Splitting time | 5-15s | 5-15s | 5-15s | 5-15s | 5-15s | 5-15s |
Theoretical splitting force | 600T | 600T | 600T | 800T | 800T | 800T |
The actual splitting force | 480T | 480T | 480T | 480T | 480T | 480T |
Weight | 28kg | 29kg | 30kg | 31kg | 32kg | 33kg |
Pump pack parameters | ||||||
Engine | Electric engine | Gasoline engine | ||||
Weight | 60kg | 110kg | 150kg | 100kg | 130kg | 150kg |
Capacity of tank | 40L | 60L | 88L | 45L | 65L | 90L |
Motor power | 3.0KW | 5.5KW | 7.5KW | 4Hp | 7Hp | 7.8Hp |
Working pressure (Mpa) | 55-60 | 55-60 | 55-60 | 55-60 | 55-60 | 55-60 |
Working Flux(L/m) | 2-13 | 2-13 | 2-13 | 2-13 | 2-13 | 2-13 |
Configurable gun number | 1-5 | 2-7 | 2-10 | 1-3 | 3-8 | 3-10 |

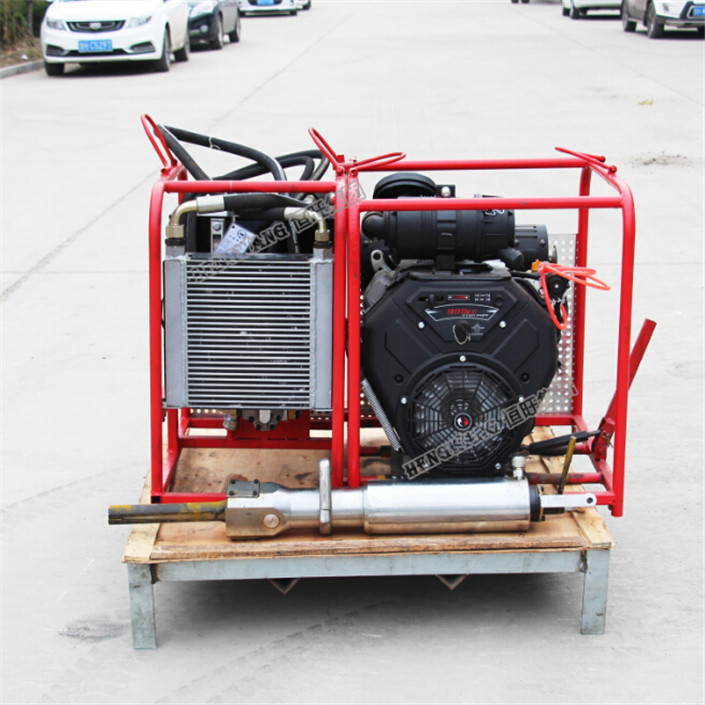

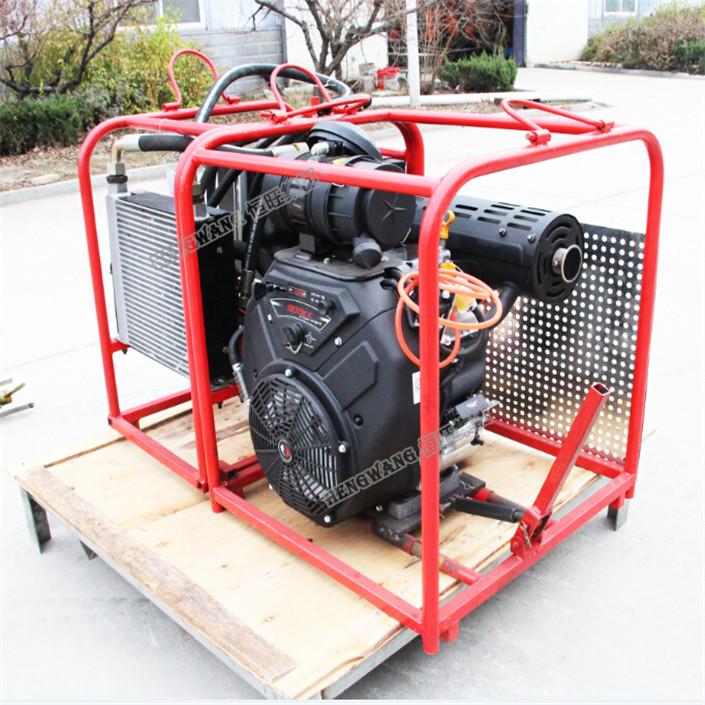

Figure photos
