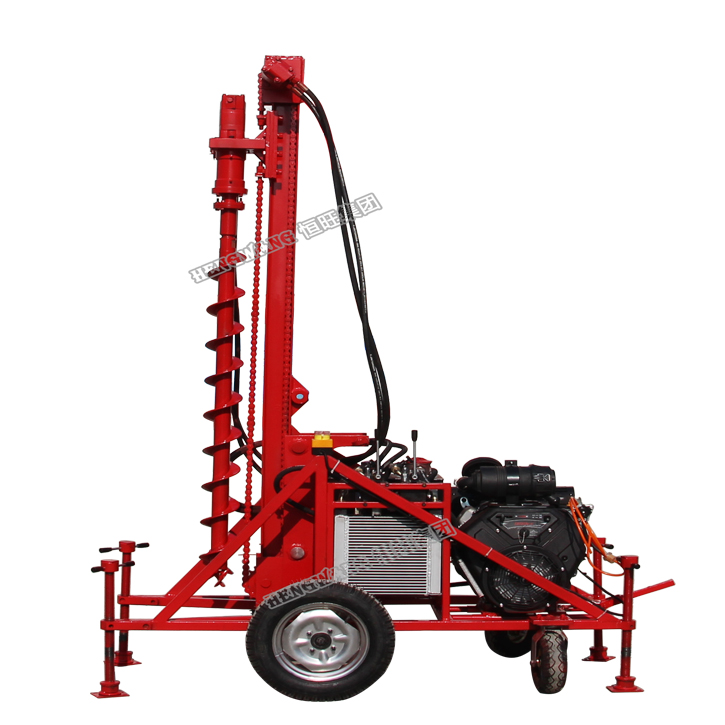

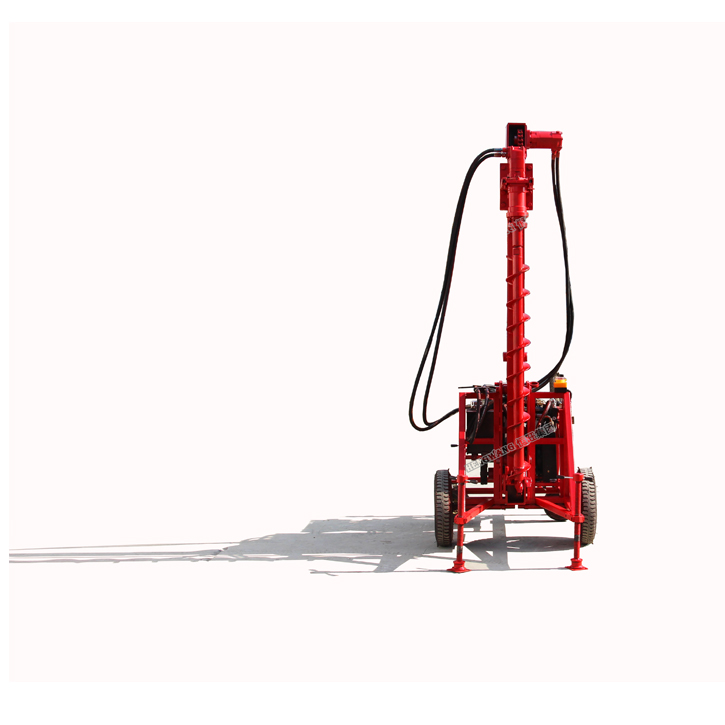

The HWS-30 mountain rig is a mountain seismic exploration drilling equipment newly developed and produced by our company.
It can be widely used in rugged mountainous areas where the vehicle rig cannot operate. The rig has the following features:
1. High drilling efficiency, which reduces operating costs;
2, the structure is simple, easy to disassemble and maintain;
3, the operation is more humane
4, the overall weight is light, and is a split structure, easy to move and transport.
Drilling method: diamond, alloy, auger, etc.
Speed range: 80-1200 rpm
Drilling depth: 15m
Maximum lifting force: 1000kg
Drilling diameter: ø 40-ø 75mm
Feed stroke: 1200mm
Mainframe dimensions: 66* 38 * 176mm
Main configuration:
Main engine, high speed power head, slow power head (cycloid motor assembly)
Hydraulic power pump station, hydraulic valve unit, 13HP gasoline engine
High pressure water pump (plunger pump, 3.5HP gasoline engine)
Excellent grade alloy drill pipe, ø33*1M 15
5 drill shafts (diameter ø50, pitch 50)
Ø40, ø56 alloy drill bit, diamond drill bit, core pipe opening pipe, and various specifications of drilling tools
Fork, fork, pipe wrench and special tools
