Forest used mini small track crawler dumper with rubber track Introduction
Free crawler transporter in mud, icy roads, dump design, crawler walking, motor to walk, a great deal of extended use power. Specific size can be customized according to demand. Carrying capacity is strong, climbing ability, simplicity of operator, maintenance easy.
Main Features
1) Simple structure in linear type ,easy in installation and maintation.
2) Adopting advanced world famous brand components in pneumatic parts ,electric parts and operation parts.
3) High pressure double crank to control the die opening and closing.
4) Running in a high automatization and intellectualization,no pollution
Specification
Body weight: 1.39 tons
Maximum load: 3 tons
Gear position and speed: auxiliary shift +3 forward gear +1 reverse gear fastest 8 km slowest 0.6 km
Car size: 1.6m*2.0m*0.4m (can be customized)
Climbing ability: 30 degrees
Engine power: 20.1KW 30 hp
Engine model: Changfa 1130, national after-sales warranty
Ability to overcome obstacles: 30 cm
Vehicle length * width * height (cm): 320cm * 160cm * 120cm
Chassis length * width * height (cm): 195cm * 160cm * 45cm
The lowest point of the vehicle bottom from the ground (cm): 25cm
Maximum flat road load (kg): 3000kg
Maximum slope load (kg): 2000kg
Ability to overcome obstacles: vertical height 20cm obstacle
Wading depth: 50cm
Depth of mud: 30cm
Track grounding length (cm): 150cm
Track type: 400mm wide (high teeth, not easy to fall track)
Roller bearing: 6207 shaft 35MM tensioner is double strut not easy to break and bend

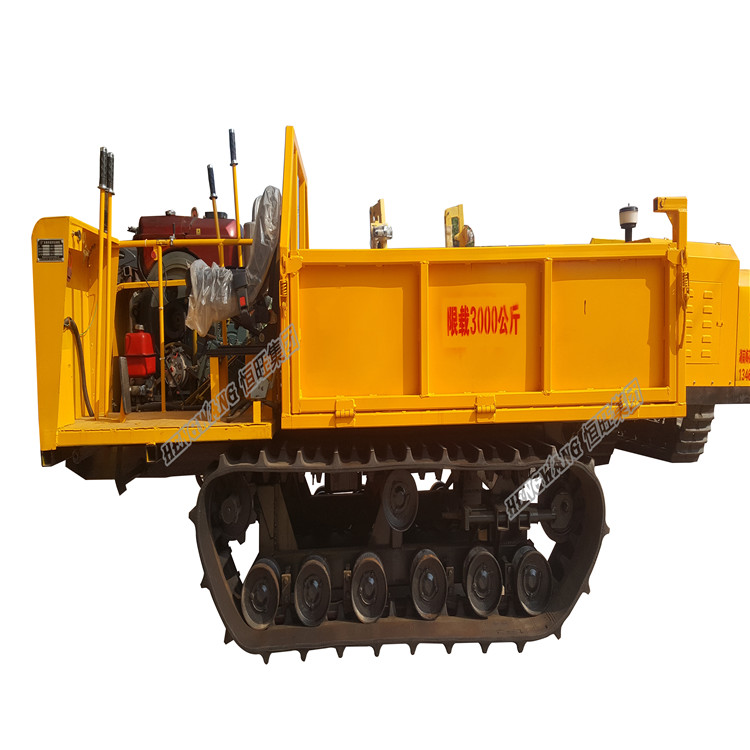

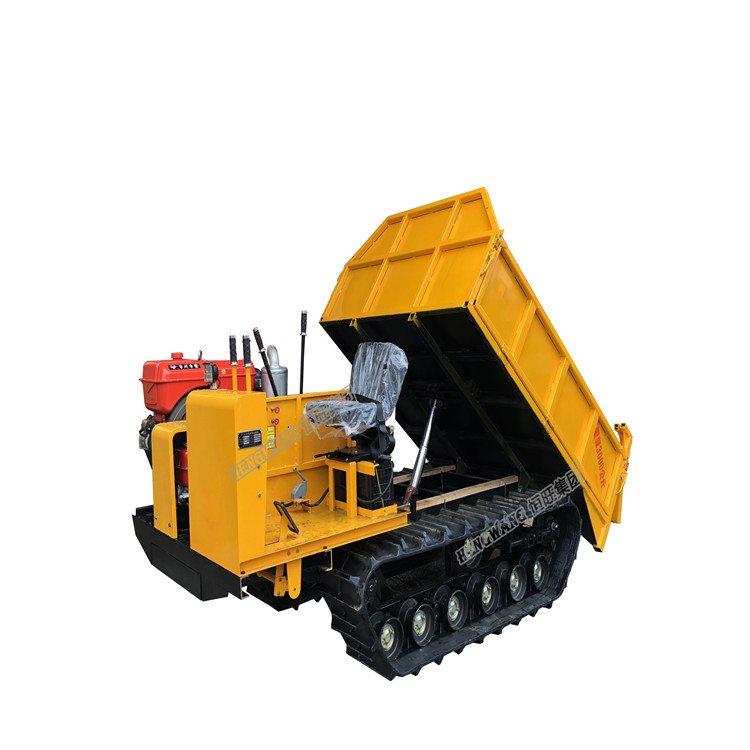

Mini rubber track carrier crawler transporter dumper
Mini rubber track carrier crawler transporter dumper
Mini rubber track carrier crawler transporter dumper
Mini rubber track carrier crawler transporter dumper
