High lifting capacity diesel water well drilling rig; Reverse circulation drilling rig for sale

Click on the image to view the original image

Product：	views：4High lifting capacity diesel water well drilling rig; Reverse circulation drilling rig for sale
Branch：	HW
Type：	drilling rig, drilling rig
Unit Price：	Negotiated
Min.Order：
Supply：
Delivery：	Shipment within days since the date of payment
Valid until：	Long Term
Updated on：	2019-10-16 20:39

Product Details

Overview

Quick Details

Condition:: New

Type:: drilling rig, drilling rig

Power Type:: Diesel

Place of Origin:: Shandong, China

Brand Name:: HW

Usage:: drilling rig for big diameter

Voltage:: drilling rig

Dimension(L*W*H):: 9000*2400*3300mm

Weight:: 28000kg

Certification:: BV,SGS,ISO

Warranty:: 1 Year

After-sales Service Provided:: Video technical support, Free spare parts, Online support, Field installation, commissioning and training, Field maintenance and repair service, Engineers available to service machinery overseas

Maximum diameter:: 800-4000MM

Drill Deep:: Less than 300m

Spindle speed:: 5-7.5-15-22 r/min

spindle power:: 11*2kw

The spindle torque:: 42000N.m

Hoist lifting force:: 36T

Supply Ability

Supply Ability:: 1000 Set/Sets per Month drilling rig

Packaging & Delivery

Packaging Details: drilling rig loading container

Port: QINGDAO,XIAMEN,TIANJIN,NINGBO

Product Description

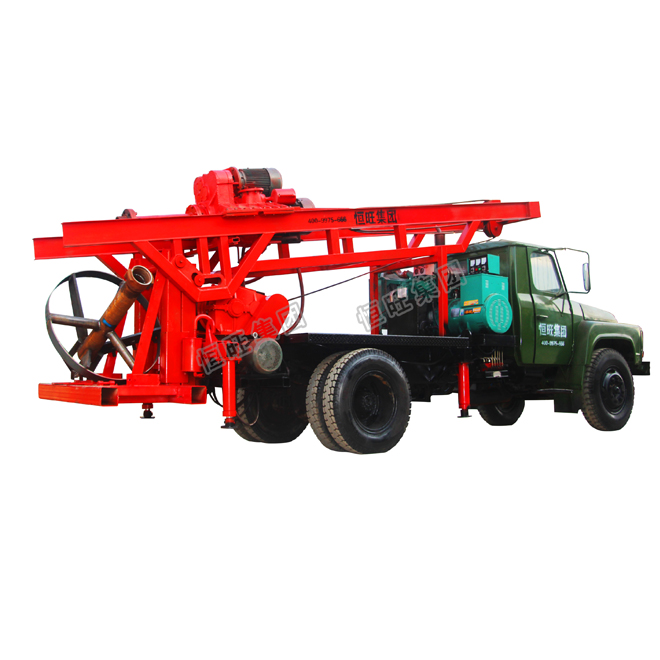

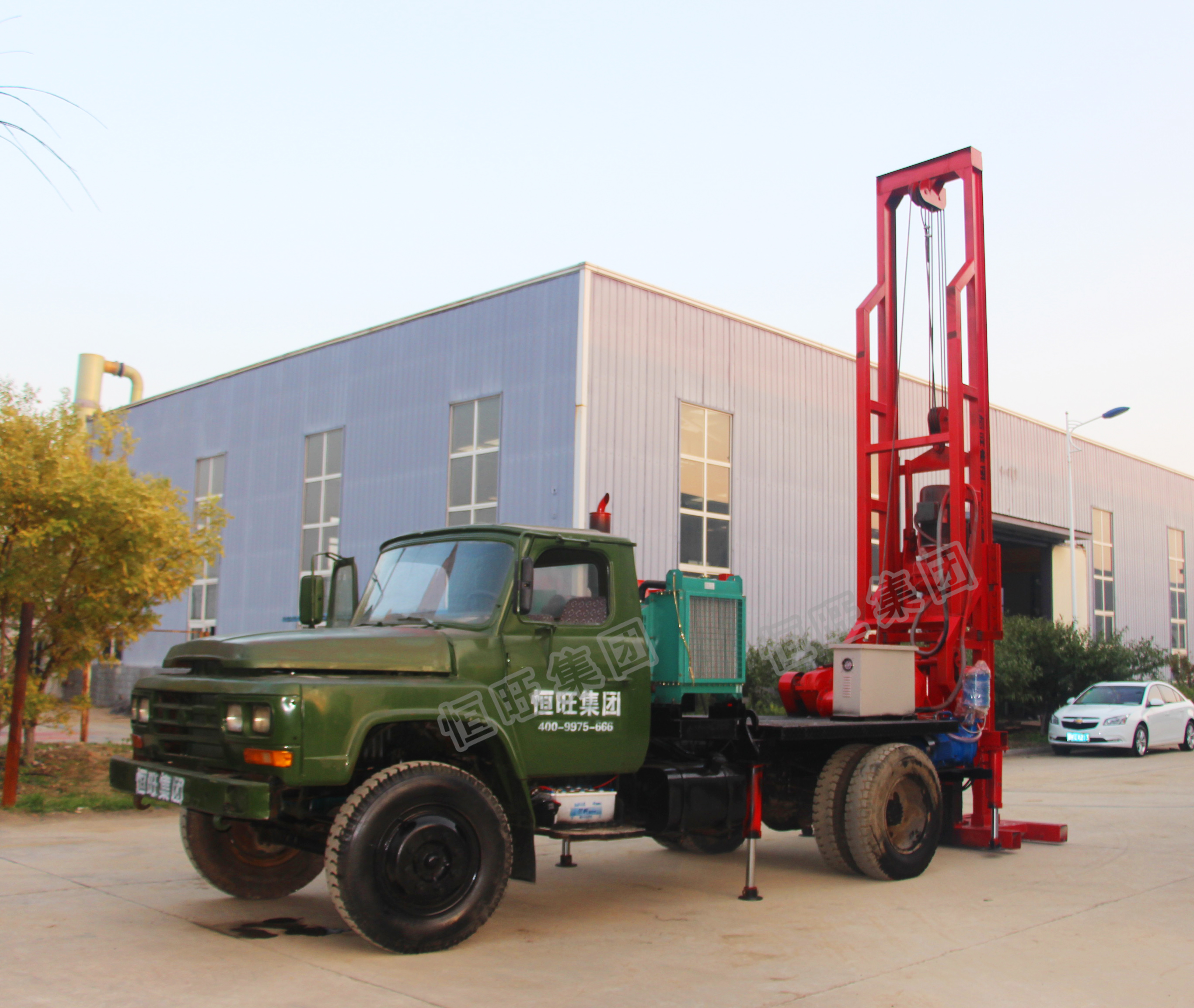

Reverse circulation drill rig drilling machine

Features:
It is mainly used for medium hard formation ( middle weathering,sedimentary rock , gravel and pebble bed within 20cm in diameter ),four gear shifting , the hole diameter of 3.5 meters .

Prameter :

Drilling depth	300m	Drilling diameter	800-4000mm
Spindle speed	5-7.5-15-22 r/min	Spindle power	11*2KW
The spindle torque	42000N.m	Hoist lifting force	36T
Mud pump flow	960M3/H	Mud pump power	45kw
Generate voltage	380V	Generate Speed	1500r/min
*Dril pipe diameter length**	219*2000mm	Main power supporting power	6110 diesel
Overall dimensions	900024003300mm	Weight	28T
