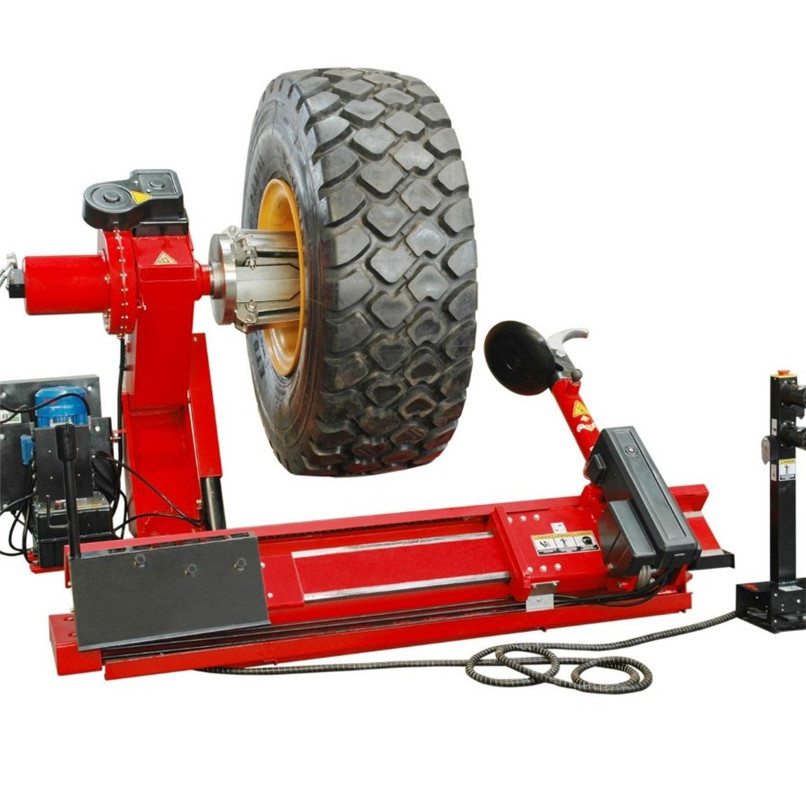

Best quality and portable Tire Changer car semi-automatic tire bead breaker machine

Click on the image to view the original image

Product：	views：3Best quality and portable Tire Changer car semi-automatic tire bead breaker machine
Branch：	HW
Size：	2500X2000X800 cm
Unit Price：	Negotiated
Min.Order：
Supply：
Delivery：	Shipment within days since the date of payment
Valid until：	Long Term
Updated on：	2019-10-16 20:39

Product Details

Overview

Quick Details

Motor Power:: 2.2KW

Operating Pressure:: 3300kg

Power Supply:: 220/380V

Place of Origin:: china

Brand Name:: HW

Model Number:: HW598

Warranty:: 12 Months

Rim diameter:: 14"-42"

Max.wheel weight:: 1600kg

Name:: Trie Bead Breaker Machine

Max.wheel width:: 1050mm

Max.tyre diameter:: 2300mm

Hydraulic pump motor:: 2.2kw 380V-3Ph-50/60HZ (220V Optional)

Gearbox motor:: 2.2kw 380V-3Ph-50/60HZ (220V Optional)

Bead breaker force:: 3300kg

Operation control voltage:: 24V

Power:: 220/400V 50/60Hz 3P Optional

Packaging & Delivery

Selling Units:: Single item

Single package size:: 2500X2000X800 cm

Single gross weight:: 758.0 kg

Package Type:: Best quality and portable Tire Changercar semi-automatic tire bead breaker machine

Picture Example:

Lead Time:

Quantity(Set)	1 - 1	>1
Est. Time(days)	10	To be negotiated

Product Description

Best quality and portable Tire Changercar semi-automatic tire bead breaker machine

Large tire changer features:

1. Tyre changer Hydraulic pump station adopts imported components

2. The Tyre changer gearbox adopts tin bronze ring gear to extend the service life.

3. Tyre changer Hydraulic and pneumatic components seals, imported high quality components

4. The Tyre changermain motor adopts two-speed, the original electrical parts comply with CE standards, and UL certification.

5. The Tyre changer lifting arm cylinder is centered and has a safety protection switch.

6. The Tyre changer disc mandrel on the tool head adopts the rolling bearing design, which can rotate freely even under the condition that the tire tire mouth resistance is extremely great during operation.

7. Tyre changer Optional remote control.

Tire Changer - Grilled Machine Features:

1. Tyre changer Vacuum and bead tires, agricultural machinery tires and construction machinery tires for various large vehicles; 14-52 inches

2. Tyre changer It adopts imported hydraulic electric control device, which has low noise, long service life, high degree of mechanization, reduced labor intensity and improved work efficiency;

3, Tyre changer away from manual operation, increase safety, do not hurt the tire mouth and rim;

Machine functions:

1.Tyre changer Opearting on control panel which is low-pressure and mobile, the control panel is designed light and handy.

2.Tyre changer Electric voltage 220v, 380v all available

3.Tyre changer The assembly arm is equipped with pendulaer assembly round plate and assembly hook.

4.Tyre changer The tool bracket,lifting arm and gripper are controlled by hydraulic system.

5.Tyre changer The clamping force adopts infinite regulation.

6.Tyre changer The guide rail is welded integrally first,then processed,such process avoids deformation caused by weld and ensure the precission of guide rail,the machine will move smoothly and steadily.

7. Tyre changer European CE approved.

8. Tyre changer One Year Warranty.

Parameters Details

Rim diameter14"-42"

Max.wheel weight1600kg

Max.wheel width 1050mm

Max.tyre diameter2300mm

Hydraulic pump motor2.2kw 380V-3Ph-50/60HZ (220V Optional)

Gearbox motor2.2kw 380V-3Ph-50/60HZ (220V Optional)

Bead breaker force 3300kg

Operation control voltage24V

Machine weight approx 758kg

Overall dimensions approx2500*2000mm Power220/400V 50/60Hz 3P Optional
