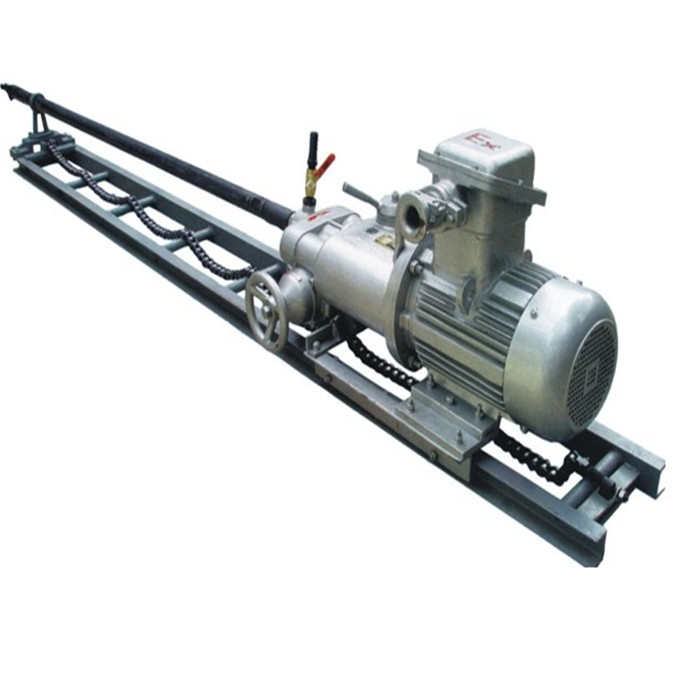

Mining used KHYD series explosion proof electric rock drill/horizontal drilling rig

Click on the image to view the original image

Product：	views：3Mining used KHYD series explosion proof electric rock drill/horizontal drilling rig
Branch：	HW
Type：	Core Drilling Rig
Unit Price：	Negotiated
Min.Order：
Supply：
Delivery：	Shipment within days since the date of payment
Valid until：	Long Term
Updated on：	2019-10-16 20:39

Product Details

Overview

Quick Details

Condition:: New

Type:: Core Drilling Rig

Power Type:: Electric

Place of Origin:: Shandong, China

Brand Name:: HW

Usage:: Coal, Coal, coal mine

Voltage:: 380V/127/380/660/1140

Dimension(L*W*H):: 570*360*300,650*360*300

Weight:: 45KGS -75KGS, 150KG

Certification:: ISO CE

Warranty:: 2 Years

After-sales Service Provided:: Video technical support, Free spare parts, Online support, Field installation, commissioning and training, Field maintenance and repair service, Overseas service center available

color:: silver /blue or as your requirements

Power(W):: 7.5kw

voltage:: 127/380/660/1140

Dimension:: 2.75*0.95*1.6m

Name:: electric rock drill

Supply Ability

Supply Ability:: 1000 Set/Sets per Week rock drill

Packaging & Delivery

Packaging Details: Wooden box or as your requirements

Port: QINGDAO

Product Description

Horizontal Directionalelectricrock Drilling Machine,Mining Horizontal Directional Drilling rig introduction

1. Electric rock drill is used for drilling burst mine hole in rock.
2.It is widely used in the mine shaft excavation, road construction, water conservancy construction,
metallurgy mining, rock engineering, quarry operation, basic engineering drilling reinforcement
construction process.
3. The explosion-proof electric rock drill is used for drilling water injection hole, on coal seam,
exploring water holes and discharging gas, also can be used for soft rock tunnel excavation.
4. They can do wet type and dry type work (equipped with twist drill rod). Drills holes horizontally
forward or tilt up, only need to control the handwheel, the drill will track forward and backward
automatically on the railway.

Horizontal Directionalelectricrock Drilling Machine,Mining Horizontal Directional Drilling rig specification

Model	KHYD40	KHYD75	KHYD140	KHYD150
Drilling dia.for rock	42mm	42mm	42-80mm	42-80mm
Drilling dia.for mine	45-60mm	45-80mm	80-100mm	80-120mm
Drilling depth for rock	5m	10m	20m	25m
Drilling depth for mine	20-60m	30-80m	30-80m	40-100m
Spindle speed	2814 r/min	1420 r/min	1440 r/min	1440 r/min
Power	2kw	3kw	5.5kw	7.5kw
Weight	40kg	75kg	140kg	150kg
