Advantages

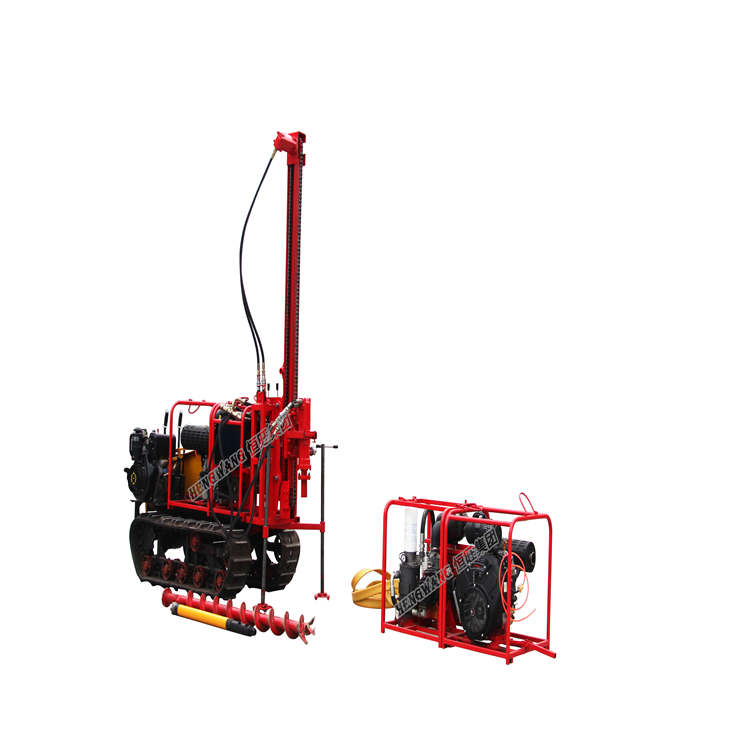

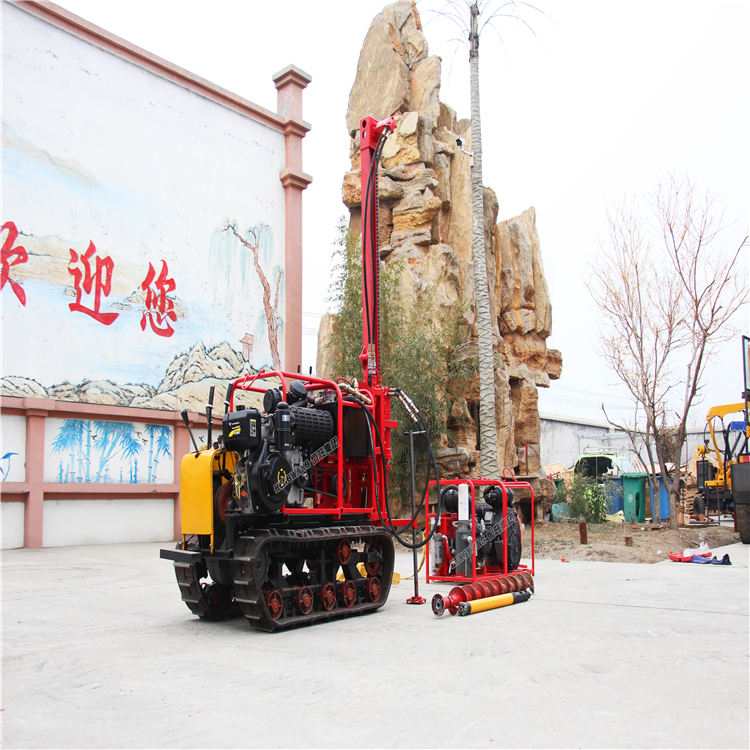

The HZ30 drilling rig is a mountain seismic exploration drilling rig newly developed and produced by our company and can be widely used in rugged mountains and other areas where onboard drilling rigs cannot operate. The rig has the following features:
1, high drilling efficiency, making the operating cost reduced;
2, the structure is simple, easy to disassemble and maintain;
3, the operation is more human
4, the overall weight is light, and a split structure, easy to move and transport.
Specification
Model | HZ30 | |
Drill depth | 30m | |
Drilling well method | Air shock drilling | |
Spiral drilling and mud drilling (optional) | ||
Drilling (hole) diameter (mm) | Air shock drilling | Rock70-90,Loose formation 75-95 |
mud drilling | 75-90 | |
Drill pipe (diameter × length) | Air shock drilling (mm) | Φ60×1500 |
mud drilling (mm) | ||
Power head | Rated torque (N.m) | 750-920 |
Drilling speed range (r/min) | 0-138 | |
Drill pressurizing and lifting function | Give pressure (N) | 5500-6000 |
Drill lifting force (kN) | 12-16 | |
Drilling tool maximum lifting speed (m/s) | 0.73-0.85 | |
Main engine power (HP) | 35 | |
Hydraulic system | flow (L/min) | 0-65 |
Working pressure (Mpa) | 25 | |
Air compressor | Model / configuration | Piston /1set |
Air volume (m3/min) | 3.5 | |
Working pressure (Mpa) | 0.8 | |
engine power (HP) | 35 | |
