- Dimension(L*W*H):
- 11700
- Weight:
- 34000
- Warranty:
- 1 Year
- After-sales Service Provided:
- Video technical support, Field installation, commissioning and training, Field maintenance and repair service, Free spare parts, Online support
- Condition:
- New
- Power Type:
- Diesel
- Place of Origin:
- china
- Brand Name:
- HW
- Certification:
- ISO
- Maximum fabric height:
- 46.8Meters
- Maximum fabric radius:
- 41.8Meters
- Name:
- Mobile Concrete Pump
- Maximum cloth depth:
- 32.1Meters
- Theoretical displacement of concrete:
- 140
- Theoretical pumping pressure:
- 8Mpa
- Theoretical pumping times:
- 35Times/Min
- Hydraulic system pressure:
- 32Mpa
- Chassis:
- Dongfeng, Shaanxi Automobile, Isuzu
- Engine horsepower:
- 330/300/350
Packaging & Delivery
- Selling Units:
- Single item
- Single package size:
- 11700X2500X3950 cm
- Single gross weight:
- 34000.0 kg
- Package Type:
- Truck Mounted Concrete Pump
- Picture Example:
![package-img]()
- Lead Time:
Quantity(Set) 1 - 1 >1 Est. Time(days) 20 To be negotiated

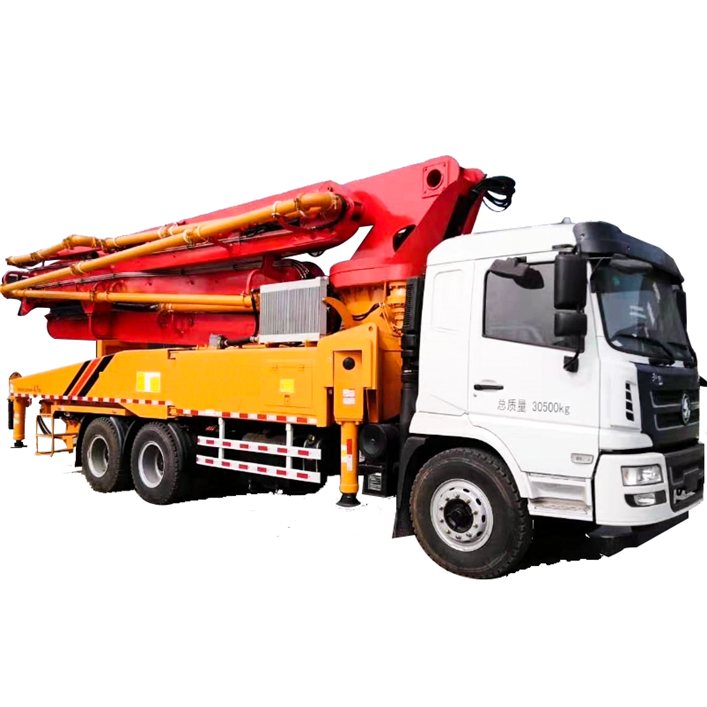

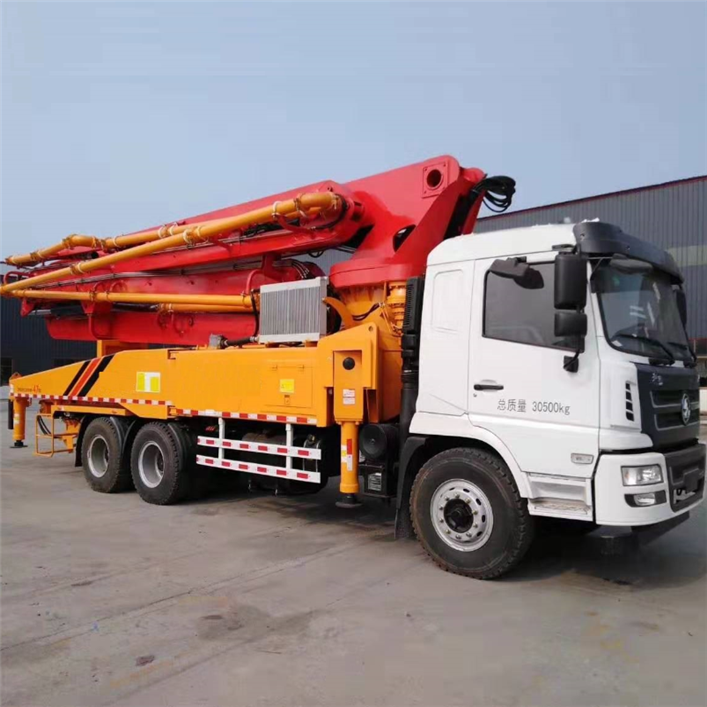

Truck mounted concrete pump diesel type 37m
The whole hydraulic control reversing hydraulic system adopts the pumping and S-tube distribution and replacement action without the participation of electric signals, the commutation impact is small, the noise is low, the service life of the hydraulic pump and the hydraulic valve can be obviously improved, and the electric control signal is omitted. The intermediate link greatly improves the operational reliability of the entire set of equipment.
Truck mounted concrete pump diesel type 37m
Concrete truck pump the pumping vehicle lubrication system adopts automatic multi-point lubrication technology, one-to-one lubrication, and better lubrication effect effectively prolongs the service life of wearing parts.
Truck mounted concrete pump diesel type 37m
Concrete truck pump the pump"s unique boom cushioning technology reduces the high-pressure peak of the system, ensuring that the boom is small and the tailpipe is stable with high input, and the swing boom can be safer and more flexible without dead ends. X-shaped legs, short body but good stability, the legs can be deployed in a narrow space, to meet the needs of rural township construction.
Concrete truck pump the realization of high and low pressure switching technology of pump truck makes pumping more convenient and more environmentally friendly; large diameter conveying cylinder realizes good suctioning property, large pumping flow rate and improved working efficiency.
Concrete truck pump the quality of the safe and stable pump car is derived from the high-end configuration, and people are not as strong as the goods. concrete pump truck is excellent in the selection of accessories. The main oil pump, remote control, transfer case, valve block, main oil cylinder and multi-way valve are all selected domestic and international famous brands Rexroth, Sany, HBC, Si Bao, Eaton, SUNNY, PUSH, Harvey and so on.
Truck mounted concrete pump diesel type 37m
Truck mounted concrete pump diesel type 37m
Truck mounted concrete pump diesel type 37m
Truck
Name: truck mounted concrete pump
Brand:HW
Original: China
Dongfeng, Shaanxi Automobile, Isuzu truck
Pump
Name:truck mounted concrete pump
Brand: HW
Original:China
One car dual-use, two pumps, horizontal conveying distance of 200 meters, vertical pumping height of 80 meters
Name:truck mounted concrete pump
Brand: HW
Original: China
Pumping system uses the most hopper in the market, convenient for later maintenance, stroke 1650mm*230mm, pumping frequency 22 times, theoretical delivery 90m3, actual 75m3, open system, high and low pressure switching, a large number of hydraulic channels, generous use of oil Temperature control
Name: truck mounted concrete pump
Brand: HW
Original:China
The spare parts from Germany ,Eaton, United States
Truck mounted concrete pump diesel type 37m
Truck mounted concrete pump diesel type 37m
Truck mounted concrete pump diesel type 37m
Truck mounted concrete pump diesel type 37m
Truck mounted concrete pump diesel type 37m
Truck mounted concrete pump diesel type 37m
Truck mounted concrete pump diesel type 37m
Truck mounted concrete pump diesel type 37m
Truck mounted concrete pump diesel type 37m
Truck mounted concrete pump diesel type 37m
Truck mounted concrete pump diesel type 37m
Truck mounted concrete pump diesel type 37m
