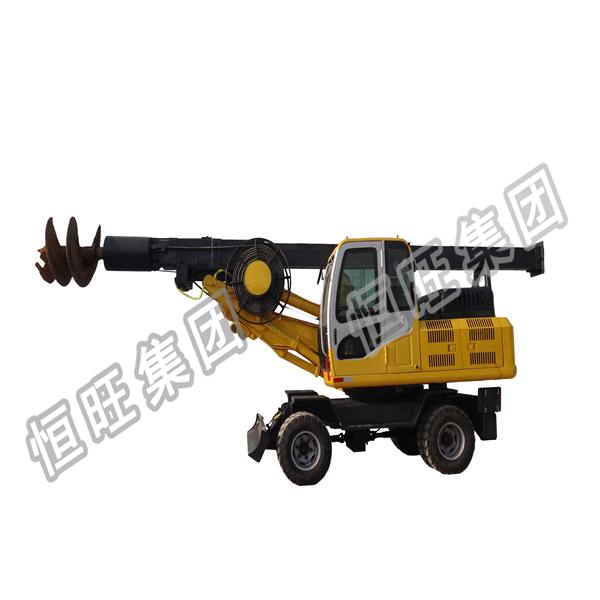

Wheels Rotary Drilling Rig
Wheeled rotary drilling rig with 180 ° rotating is suitable for building foundation engineering into hole pile driving machinery. used in the construction of various soil layers, such as sandy soil, cohesive soil, silty soil, etc., which is widely used in the construction of grouting piles, continuous wall and foundation reinforcement.
Features:
Low noise, small vibration, large torque, multi-function, hole forming speed is fast, flexible, high construction efficiency. Really high cost performance.
| Name | Wheeled rotary screw drilling rig | |
| Model: | HW15 | |
| Type: | Wheeled | |
| Engine: | Cummins 150hp | |
| Gear pump: | CBJT2080 | |
| Drilling Diameter | 500mm--2000mm | |
| Max. Drilling Depth | 15m | |
| Power head | 125 | |
| Torque of rotary | 23000N.m | |
| Transmission | 140 | |
| scaling rod | 40/16 | |
| Lifting | 4-5Ton | |
| Drill bit weight | 800kgs | |
| Whole Machine weight | 9000kgs | |
| Overal Dimension: | 7500mm*2360mm*3250mm | |
| Rotary angle/ Big arm | 180 degree | |
| Fuel consumption | 10L/h | |
| Travel | 50Km/h | |
| Hydraulic system working pressure | 20-25Mpa | |
| displacement | 80ml/r | |
| Tyre size: | 825-16/900-20 | |
| distance between shafts | 3250mm | |
| The wheel base | Front 1600mm rear 1260mm | |
hydraulic auger drilling rig / small 15m pile driving machine
hydraulic auger drilling rig / small 15m pile driving machine
hydraulic auger drilling rig / small 15m pile driving machine
hydraulic auger drilling rig / small 15m pile driving machine
hydraulic auger drilling rig / small 15m pile driving machine
hydraulic auger drilling rig / small 15m pile driving machine
