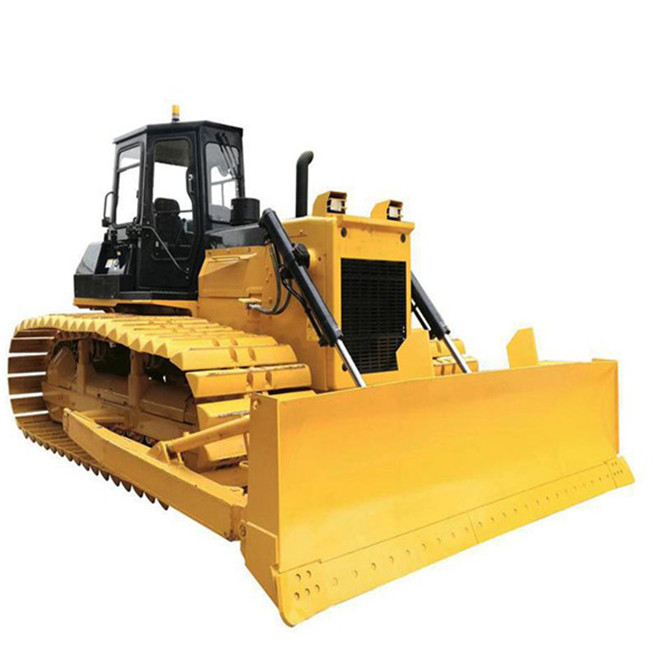

HW supplier types of mini bulldozer price

Click on the image to view the original image

Product：	views：5HW supplier types of mini bulldozer price
Branch：	HW
Type：	160HP Hydraulic standard
Unit Price：	Negotiated
Min.Order：
Supply：
Delivery：	Shipment within days since the date of payment
Valid until：	Long Term
Updated on：	2019-10-16 20:40

Product Details

Overview

Quick Details

Machine Weight:: 17000KGS

Dimension(Long * Breadth * High):: 5140*3388*3032 mm

Warranty:: TWO YEARS

After-sales Service Provided:: Field installation, commissioning and training, Field maintenance and repair service, Video technical support, Online support, Free spare parts

Place of Origin:: Shandong, China

Brand Name:: HW

Condition:: New

Moving Type:: Crawler Bulldozer

Type:: 160HP Hydraulic standard

Displacement:: 9.726 L

Operating weight:: 17000 Kg

Blade width:: 3390 mm

Blade height:: 1150 mm

Max pressure:: 14 MPa

Min ground clearance:: 405 mm

Track gauge:: 1880 mm

Supply Ability

Supply Ability:: 300 Set/Sets per Month crawler bulldozer

Packaging & Delivery

Packaging Details: loading by sea

Port: QINGDAO PORT

Lead Time:

Quantity(Sets)	1 - 5	6 - 10	>10
Est. Time(days)	2	5	To be negotiated

Product Description

Crawler bulldozer

A bulldozer is an engineering vehicle. There is a large metal bulldozer in front, the bulldozer is put down during use, the mud, sand and stones are shoveled forward and pushed. The position and angle of the dozer can be adjusted. The excavation, earth moving and unloading can be done separately. Soil work.

The bulldozer has the characteristics of flexible operation, convenient rotation, small working face and fast driving speed. It is mainly suitable for shallow excavation of one to three types of soil, such as site cleaning or leveling, foundation pits with little excavation depth and backfilling, pushing subgrades with low height, etc.

Models

Model	HWD16	HWD22	HWD32
Rated power (kw/rpm)	131/1850	175/1800	235/2000
Displacement (L)	9.726	14.01	14.01
Max.torque(N.m/rpm)	830/1000-1200	1030/1250	1440/1400
Operating weight (kg)	17000	23500	37200
Dimension(no ripper)(mm)	514033883032	549237263742	688541283645
Min ground clearance (mm)	405	405	500
Ground pressure(Mpa)	0.067	0.072-0.077	0.105/0.09/0.078
Track shoe width(mm)	510	560/610/660	560/660/760
Dozing capacity (M3)	4.5	6.4	10
Blade width(mm)	3390	3725	4130
Blade height(mm)	1150	1315	1590
Pitch(mm)	203.2	216	228
Forward(km/h)	3.29/5.82/9.63	3.6/6.5/11.2	3.6/6.5/11.2
Reverse (km/h)	4.28/7.59/12.53	4.3/7.7/13.2	4.4/7.8/13.5
