Gear pump mini road roller compactor machine

Click on the image to view the original image

Product：	views：6Gear pump mini road roller compactor machine
Branch：	HW
Type：	Double Drum Roller
Unit Price：	Negotiated
Min.Order：
Supply：
Delivery：	Shipment within days since the date of payment
Valid until：	Long Term
Updated on：	2019-10-16 20:40

Product Details

Overview

Quick Details

Power(W):: 9HP

Travel Speed:: 0-10km/h

After-sales Service Provided:: Free spare parts, Video technical support, Online support, No after-sales service, Field installation, commissioning and training, Overseas third-party support available

Warranty:: 2 Years

Condition:: New

Type:: Double Drum Roller

Grade Ability:: 30%

Place of Origin:: Shandong, China

Brand Name:: HW

Dimension(L*W*H):: 1850X860X1050mm

Weight:: 800kg

Certification:: SGS

road roller Water Tank:: 20L

mini road roller Fuel Tank:: 21L

small road roller type:: single /double drum walk behind road roller, ride on road roller

Drive mode:: hydraulic drive

vibration control:: automatic clutch

Exciting force:: 20KN

starting mode:: hand and electric

Color:: Yellow

Name:: Ride OnRoad Roller

Supply Ability

Supply Ability:: 500 Set/Sets per Week Hand road compactor

Packaging & Delivery

Packaging Details: mini road roller packing within wooden case

Port: QingdaoTianjin Shanghai, Ningbo

Lead Time:

Quantity(Sets)	1 - 2	3 - 5	6 - 10	>10
Est. Time(days)	2	3	6	To be negotiated

Product Description

1Ton ride on hydrualic road roller /mini walking behind road roller /double drum small road roller

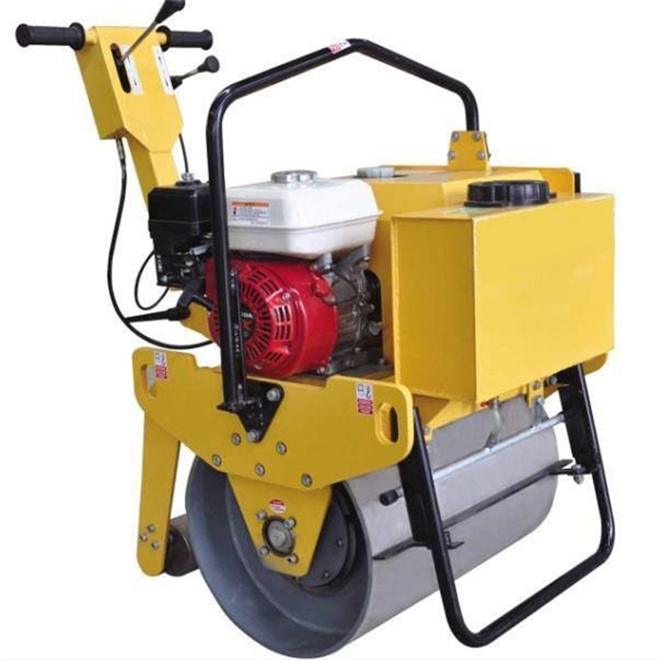

Walk-behind single wheel dieselroad roller HW-YL600C

Model:HW-YL600C Walking speed: 0-4km/h
Steering radius :30% Nominal amplitude:0.5mm
Vibration frequency:75HZ Vibration force:20kN
Water tank capacity:20L Drive:Hydraulic pump and motor
Engine model:Honda Engine: air cooling 4 stroke
Power4.0hp/3600rpm Fuel tank capacity:2.5L
Fuel consumption:280g/kwh Width of the steel wheel:600mm
Steel wheel diameter:450mm length about armrest flat:1650mm
Width:800mm Height about Arm stand:1300mm
Packing size:1160x900x1100mm Work weight:350kg

Walk-behind single wheel diesel road roller HW-YL700

Model:HW-YL700C Walking speed: 0-4km/h
Steering radius :30% Nominal amplitude:0.5mm
Vibration frequency:75HZ Vibration force:20kN
Water tank capacity:20L Drive:Hydraulic pump and motor
Engine model:CF178 Diesel engine: air cooling 4 stroke)
Power4.0hp/3600rpm Fuel tank capacity:3.5L
Fuel consumption:280g/kwh Width of the steel wheel:700mm
Steel wheel diameter:450mm length about armrest flat:1900mm
Width:800mm Height about Arm stand:1400mm
Packing size:1160x900x1100mm Work weight:520kg

Walk-behind double wheel diesel road roller HW-YLS600B

Vibration frequency:75HZ Vibration force:20KN
Water tank capacity:20L Drive:Hydraulic pump and motor
Vibration:Mechanical transmission - electromagnetic clutch)
Engine model:CF178F Diesel engine: air cooling 4 stroke)
Power4.0hp/3600rpm Fuel tank capacity:3.5L
Fuel consumption:280g/kwh Width of the steel wheel:600mm
Steel wheel diameter:450mm length about armrest flat:2450mm
Width:750mm Height about Arm stand:1800mm
Packing size:1460x810x1230mm Work weight:530kg

Walk-behind double wheel gasoline road roller HW-YLS600

Vibration frequency:75HZ Vibration force:30KN
Water tank capacity:30L Drive:Hydraulic pump and motor
Vibration:Mechanical transmission - electromagnetic clutch)
Engine model:GX270 Engine: Petrol engine, air cooling 4 stroke
Power4.0hp/3600rpm Fuel tank capacity:6L
Fuel consumption:280g/kwh Width of the steel wheel:600mm
Steel wheel diameter:450mm length about armrest flat:2450mm
Width:750mm Height about Arm stand:1800mm
Packing size:1460X810X1230mm Work weight:520kg

Walk-behind double wheel diesel road roller HW-YLS700A

Vibration frequency:70HZ Vibration force:20KN
Water tank capacity:30L Drive:Hydraulic pump and motor
Vibration:Mechanical transmission - electromagnetic clutch)
Engine model:CF180F Engine: Diesel engine, air cooling 4 stroke
Power 7hp/3600rpm Fuel tank capacity:3.5L
Fuel consumption:280g/kwh Width of the steel wheel:700mm
Steel wheel diameter:350mm length about armrest flat:2460mm
Width:850mm Height about Arm stand:1800mm
Packing size:1460x910x1230mm Work weight:570kg

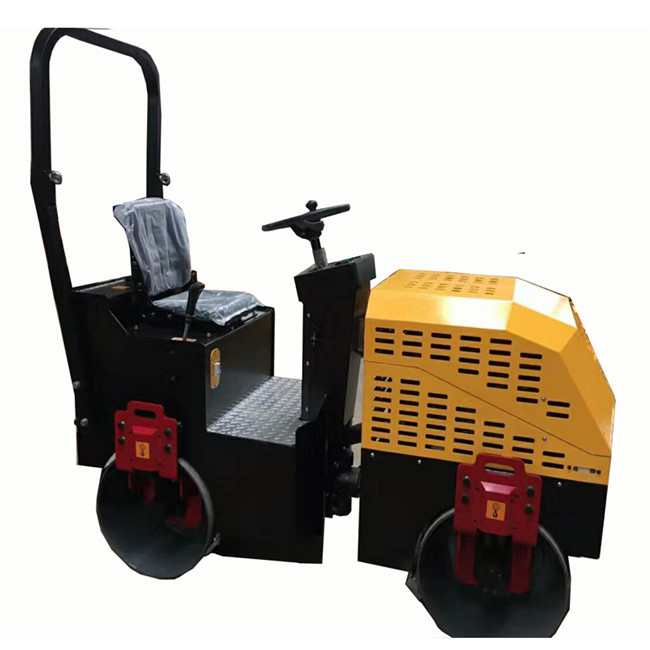

Ride on diesel road roller one ton HW-JSY900A

Net weight1000kg Water tank capacity of 60L
Outside turning radius (m) 2.4
Forward / backward speed m / min 0-100
Climbing ability 30% Vibration Hertz HZ (vpm) 60 (3600)
Excitation force KN 30 Engine Changchai engine
Engine type four-stroke, three-cylinder, water-cooled
Engine Model 3M78 Rated power (Hp) 24
Displacement L 0.487 Engine speed at full load rpm 3600
Engine speed at idle rpm 2900 Battery Pack V 12VDC
Air Filter Type G042544 (Donaldson) Fuel type diesel
Fuel tank volume 30L Fuel consumption L / HR. 3
