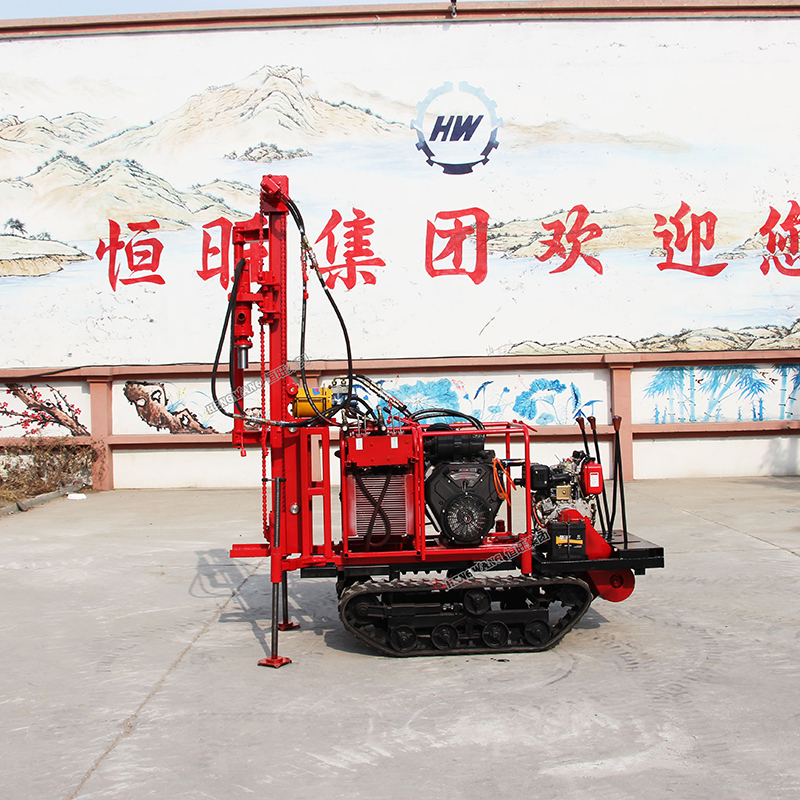

Click on the image to view the original image
- Condition:
- New
- Type:
- Rotary Drilling Rig, Tracked/Crawler
- Power Type:
- Diesel
- Place of Origin:
- Shandong, China
- Brand Name:
- Hengwang
- Usage:
- Ore
- Voltage:
- 380V
- Dimension(L*W*H):
- 2800*1300*1580mm
- Weight:
- 500kgs
- Certification:
- ISO CCC CE
- Warranty:
- 1 Year
- After-sales Service Provided:
- Video technical support, Free spare parts
- Drilling depth:
- 30m
- Drilling diameter:
- 70-120mm
- Drill rod length:
- 1.5m/piece
- Engine:
- Gasoline engine
- Working pressure:
- 20Mpa
- Application:
- Rock drilling rig
- Color:
- red or Customised
- Drillpipe diameter:
- 60mm
- Drilling method:
- air shock drilling
Packaging & Delivery
- Selling Units:
- Single item
- Single package size:
- 300X150X186 cm
- Single gross weight:
- 450.0 kg
- Package Type:
- Export plywood box package Multifunction 30 meters small subsurface rock drilling rig
- Picture Example:
![package-img]()
- Lead Time:
Quantity(Set) 1 - 2 3 - 5 >5 Est. Time(days) 10 14 To be negotiated
Product Application
This series of products are widely used in geological prospecting, small and medium-sized mines and transportation, national defense, water conservancy and other engineering of the hole drilling and other USES of the hole.
HWL30Z small crawler pneumatic drill rig is a product that has been developed by our Hengwang factory for more than 10 years. Based on the advantages of our company"s mountain rigs, the rig optimizes the design concept based on "parameters, efficiency and cost" to effectively ensure drilling efficiency, solve the difficulty of relocation in mountain construction, and reduce field labor intensity and construction risk.
Multifunction 30 meters small subsurface rock drilling rig
Main Features
1* The rig adopts a combination of frames for quick assembly and disassembly and manual relocation;
2* The rig is fully hydraulically driven to accommodate a variety of terrains and can be used for drilling operations around the clock;
3* Features energy saving, miniaturization and low cost. ;
4* Hydraulic quick lifting rod design eliminates the need for rigs, winches and gearboxes, making operation easier and safer;
5* The derrick derrick, base, engine frame, power head housing, etc. are made of high-quality materials to better meet the requirements for the lightweighting of the rig when the person is disassembled;
30m depth small crawler pneumatic drill rig
Machine Parts
Name: Power head
Exquisite workmanship, high efficiency and durable
Multifunction 30 meters small subsurface rock drilling rig
Machine Parts
Name: Crawler chassis
It adopts all-terrain crawler walking, with large driving force and high reliability, more stable
Machine Parts
Name: Engine
Heavy-duty air filter with engine configuration adapted to various harsh environments in the field;
The rig uses an oil cooler to cool the hydraulic oil for use in areas with high ambient temperatures.
Machine Parts
Name: Hydraulic system
The drilling rig adopts gear pump, load-sensitive multi-way valve and shaft distribution cycloid motor to form a hydraulic system, which has strong pollution resistance and reliable use
