Sales promotion horizontal electric three-cylinder bw mud pump for sale

Click on the image to view the original image

Product：	views：5Sales promotion horizontal electric three-cylinder bw mud pump for sale
Branch：	HW
Unit Price：	Negotiated
Min.Order：
Supply：
Delivery：	Shipment within days since the date of payment
Valid until：	Long Term
Updated on：	2019-10-16 20:40

Product Details

Overview

Quick Details

Place of Origin:: Shandong, China

Brand Name:: HW

Model Number:: BW160,BW150,BW250,BW200,BW450

Structure:: pneumatic sump pump

Usage:: mud pump

Application:: Submersible

Power:: Electric

Fuel:: electric,diesel

Pressure:: Low Pressure

Standard or Nonstandard:: Standard

Theory:: Centrifugal Pump

name:: mud pump

mud pump model:: BW160,BW150,BW250,BW200,BW450

mud pump for:: Drill rig

mud pump motor:: electric, diesel

mud pump power:: 220V/380V

single cylinder mud pump:: BW160 mud pump

BW160 mud pump power:: electric mud pump, diesel pump

mud pump condition:: new

Supply Ability

Supply Ability:: 5000 Set/Sets per Week mud pump

Packaging & Delivery

Packaging Details: mud pump within wooden box

Port: QINGDAO, Tianjin,Xiamen, Ningbo

Product Description

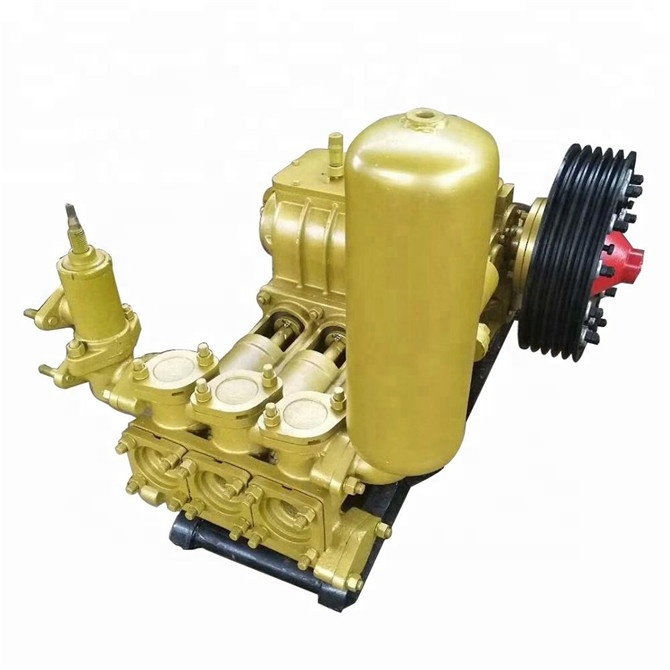

BW MUD PUMP :

1. A horizontal, triplex, single acting reciprocation piston pump. The pump can choose diesel motor

power, It has simple operation, convenient, can achieve close range or remote control.

2. This pump is a compact structure, smooth operation, high output pressure, longer life expectancy,

stable performance, good general and so on.

3. This pump adopts the car transmission,Can get six different discharge and pressure,Reasonable

configuration parameters selection,The construction technology can satisfy different requirements.

4. Mainly used drilling fluid in supply for 2000m about core drilling coal field geology,metallurgy

geology,hydrogeololgy,drilling fluid can use mud and water, the coal water etc.

Detailed Images

Following is our product for BW series mud pump.Detailed information ,pls contact with me .

Model:BW-160/10 mud pump

Stroke(mm):70
Quick(I) Quick(II) Slow(I)Slow(II)
Pump speed(min-1): 200 13283 55
Flow(l/min):160 10767 44
Pressure(Mpa):2.546.5 10
Volume efficiency(%):100
Total efficiency(%):75
Input torque(Nm):150

Model :BW250 mud pump
Max.Flow:250L/min
Max.Pressure:7Mpa
Input Power:15KW
Suction Pipe Diameter:76mm
Discharge Pipe Diameter:51mm
Overall Dimension(mm):1100x995x650
Weight:760kg

Model:BW320 mud pump
Stroke (mm):1100
Cylinder diameter (mm):80
Pump speed (times/min): 214 153 10978
Flow (l/min):320 230165118
Pressure (Mpa):2.23.66.210
Power (Kw):30
Shape size (mm):1905*1100*1200
Weight (kg): 720

Model No.: BW850 mud pump

Cylinder diameter:150 mm
Piston Stroke:180 mm
Number of Strokes:82, 58 Num./min
Displacement: 850, 600 litre/min
Pressure: 2.0, 3.0 mpa
Speed of V-Belt wheel: 470 rpm
Power input:40/54 kW (hp)
Overall dimensions (LxWxH):2000 x 1030 x 1400 mm
Weight:1450 kg
