Home > Products > High quality crawler Level Anchor rig for sale

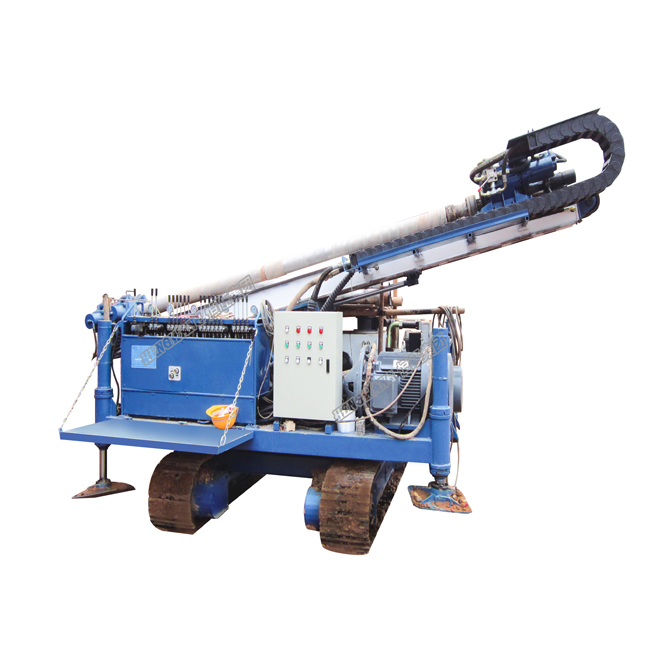

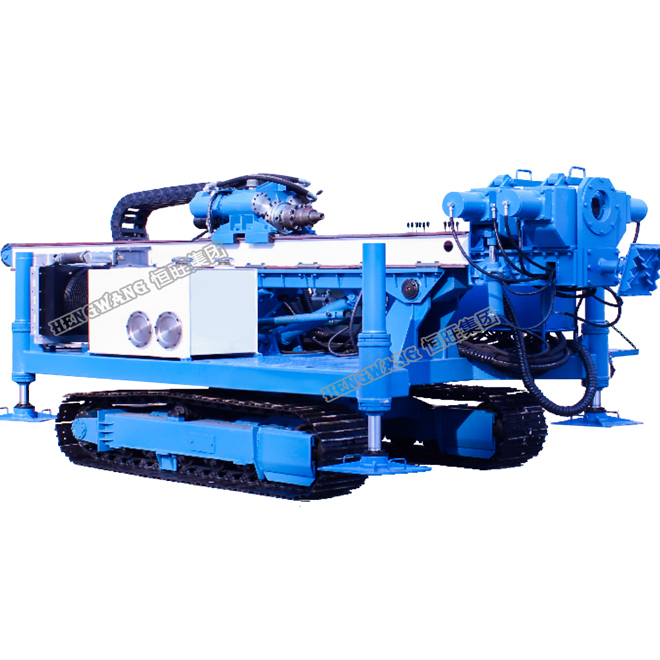

High quality crawler Level Anchor rig for sale

Click on the image to view the original image

Product：	views：5High quality crawler Level Anchor rig for sale
Branch：	HW
Type：	Core Drilling Rig
Size：	10X8X8 cm
Unit Price：	Negotiated
Min.Order：
Supply：
Delivery：	Shipment within days since the date of payment
Valid until：	Long Term
Updated on：	2019-10-16 20:40

Product Details

Overview

Quick Details

Condition:: New

Type:: Core Drilling Rig

Power Type:: Diesel

Place of Origin:: Shandong, China

Brand Name:: HW

Usage:: Coal, Building Coating

Warranty:: 1 Year

After-sales Service Provided:: Video technical support, Free spare parts, Online support, Field installation, commissioning and training

Name:: Anchor rig

Weight:: 6000kg

Key word:: Slope support anchor rig ,Foundation pit anchoring drilling rig

Engine:: Changchai

Packaging & Delivery

Selling Units:: Single item

Single package size:: 10X8X8 cm

Single gross weight:: 60.0 kg

Package Type:: Loading within container

Lead Time:

Quantity(Set)	1 - 1	>1
Est. Time(days)	5	To be negotiated

Product Description

Anchoring drilling rig Machine introduction:

1, the shell: the installation of the shell shape makes the machine more scientific, but also protect the key hydraulic parts from pollution.
2, Outriggers: Not only to allow the cylinder from damage, but also enhance the support strength.
3, console: split console, make the operation more simple, to avoid misuse.
4, Track: longer and stronger track, effectively prevent sagging, to adapt to a wider range of strata.
5, (optional) Lifting: Adjustable orifice height, no longer depends on the level of the face.
6, (optional) Automatic turntable: eliminating manual labor, easier and more convenient.
7, through-hole high pressure faucet: the necessary equipment to expand the head construction.
8, Power head: The drilling machine gyrator is driven by a double hydraulic motor, with big output torque and lower swing center than similar products, which greatly improves the balance of drilling rig drilling. Expansion joints configured to greatly extend the drill pipe thread life.
9, cooling system: According to the customer"s special conditions, the cooling system is optimized to ensure that the hydraulic system when the outdoor temperature is 45 ℃, the maximum temperature does not exceed 70 ℃.

Construction features

1, optional with the special drill pipe drilling tools (drill pipe, casing, eccentric drill, etc.), in the unstable formation casing wall openings, the conventional ball-bit drill hole. High drilling efficiency, good hole quality.
2, the drilling rig is mainly suitable for deep foundation pit anchor support, but also through the rotary spray module replacement, so that drilling rig can be rotary jet spray construction. In addition, the machine also has a strong performance in the construction of geothermal holes, precipitation wells, micro-steel pipe piles and micro-pouring pile.
3, In addition to crawler chassis crawler, gripping and unloading buckle and turntable, we also provide users with spin-jet module and other options, the user when ordering rig overlay matching, so that our rig more suitable for your project.

The main parameters
Drilling diameter		150-250(mm)
Drilling depth		130-170(m)
Final hole diameter		75mm
Drill rod diameter / casing diameter		73,89,102,114(mm)
Drilling inclination		0-90(° )
Rotator output speed		10/20/30/35/40/60/65/70/85/130/170(r/min)
Rotator output torque		7500(N.m)
Rotor travel		3400(mm)
Revolver lift		70(kN)
Revolver to increase speed		0-5/7/23/30(m/min)
Gyrator pressure		36(kN)
Walking parameters
Walking way		Crawler walk
Climbing angle		25(° )
Walking speed		20(km/h)
