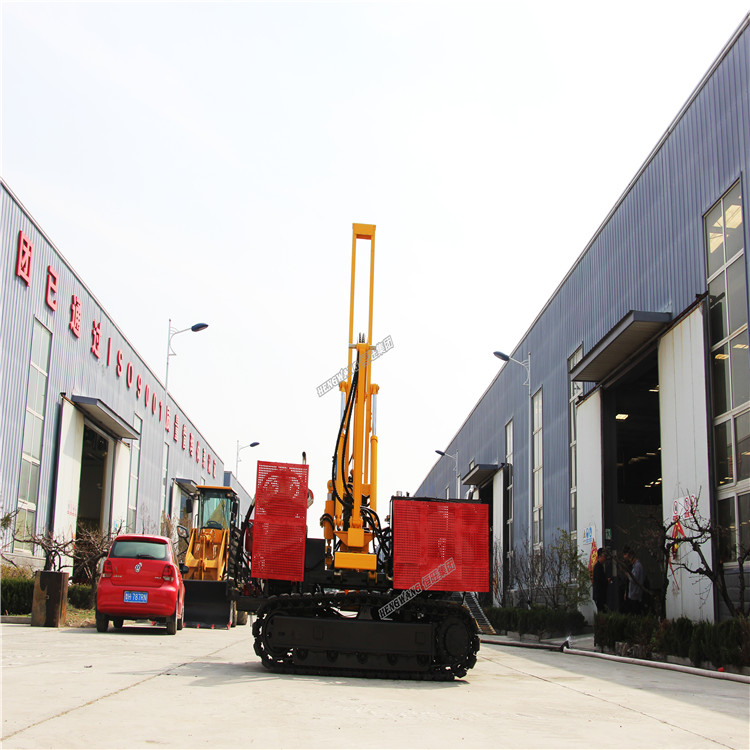

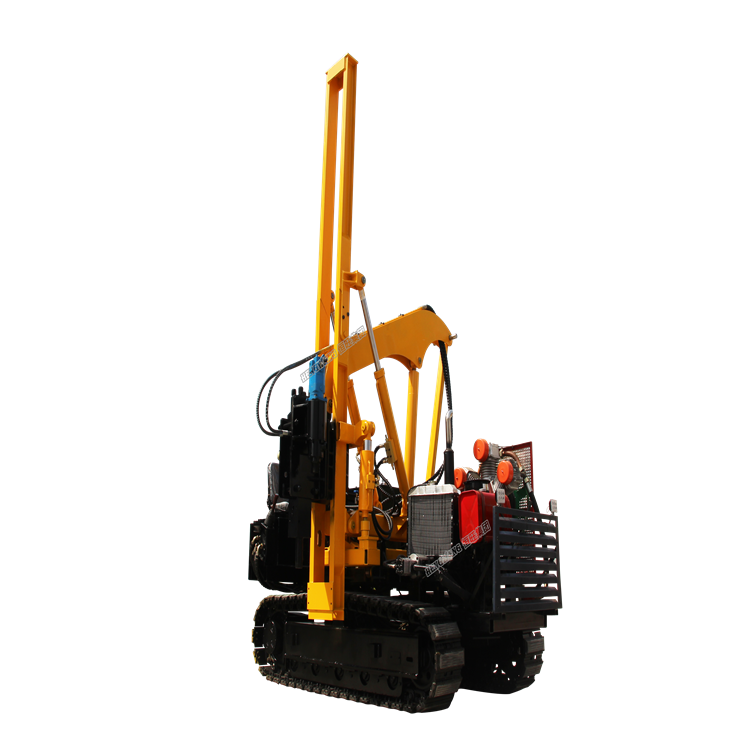

Hydraulic Pile Driver is a kind of multifunctional pile construction machinery, mainly used for solar plant construction and highway guardrail pile construction .With different configuration it can accomplish many functions, such as piling, pile extracting, and drilling on the stable layer of road before piling.
Main Features
1) Pile Driver is composed of the chassis, guide rail, hydraulic arm, hydraulic system, hydraulic hammer, diesel engine, electrical, cooling and control systems, pile extracting equipment and pile drilling equipment. Its characteristics include quick and exact positioning, compact size, lightweight, self-propelled, agile, ergonomic design, easy operation, high efficiency .
2).Oil province,is a common driver uses around half of a year can be a driver left money for you.
3).Bit using manganese steel manufacturing,through processing,are suitable for all kinds of geological environment.
4).Crawler walking,high walking and climbing ability
5).The frame can be moved back and forth,bit can be adjusted,high piling position accuracy.
Specification
Diesel engine | kw | 22 |
Hydraulic system pressure | mpa | 16 |
The hydraulic system flow rate | l/min | 90 |
Driving efficiency | mm/min | 2000 |
Net weight | kg | about 2800 |
Steel post diameter | mm | 90mm-300mm( depends on the soil condition) |
Maximum driving depth | mm | 2000 |
Maximum post length | mm | 4000 |
Maximum drilling diameter | mm | 300 |
Drilling depth | mm | 1700 |
Traveling Speed | km/h | 1.6 |
Maximum torque of travel motor | nm | 4000 |
Forward and backward control angle of chassis | ° | 0—20 |
Track size | mm | 2000*1800*500 |
Slide stroke of left and right | mm | 0—450 |
Chassis front /rear part inclination angle | ° | 30 |
Size(length*width*height) | mm | 2700*2222(2650 under working)*2622(4100 under |
