- Piling Speed(m/min):
- 3m/min
- Efficiency:
- High efficiency
- After-sales Service Provided:
- Video technical support, Online support, Free spare parts, Field installation, commissioning and training
- Warranty:
- 1 Year
- Applicable Industries:
- Construction works
- Condition:
- New
- Place of Origin:
- Shandong, China
- Brand Name:
- Hengwang
- Weight:
- 3000kgs
- Dimension(L*W*H):
- 3.3*2.2*3.6m
- Certification:
- ISO CCC
- Name:
- fence post vibrating pile driver
- Application:
- fence post pile driver
- Type:
- Hydrualic highway guardrail pile driver
- COLOR:
- Yellow Blue
- Drill diameter:
- 0-250mm
- Pile diameter:
- 50-260mm
- Drilling depth:
- 2.5m
- Pile max. length:
- 2800mm
- Advantages:
- portable high cost performance
- Hydraulic hammer model:
- 65#
Packaging & Delivery
- Selling Units:
- Single item
- Single package size:
- 330X220X360 cm
- Single gross weight:
- 3000.0 kg
- Package Type:
- Pack in nude with Full Container Load 40KW economic drop hammer mini fence post vibrating pile driver
- Picture Example:
![package-img]()
- Lead Time:
Quantity(Set) 1 - 2 3 - 5 >5 Est. Time(days) 7 10 To be negotiated
Product Application 40KW economic drop hammer mini fence post vibrating pile driver

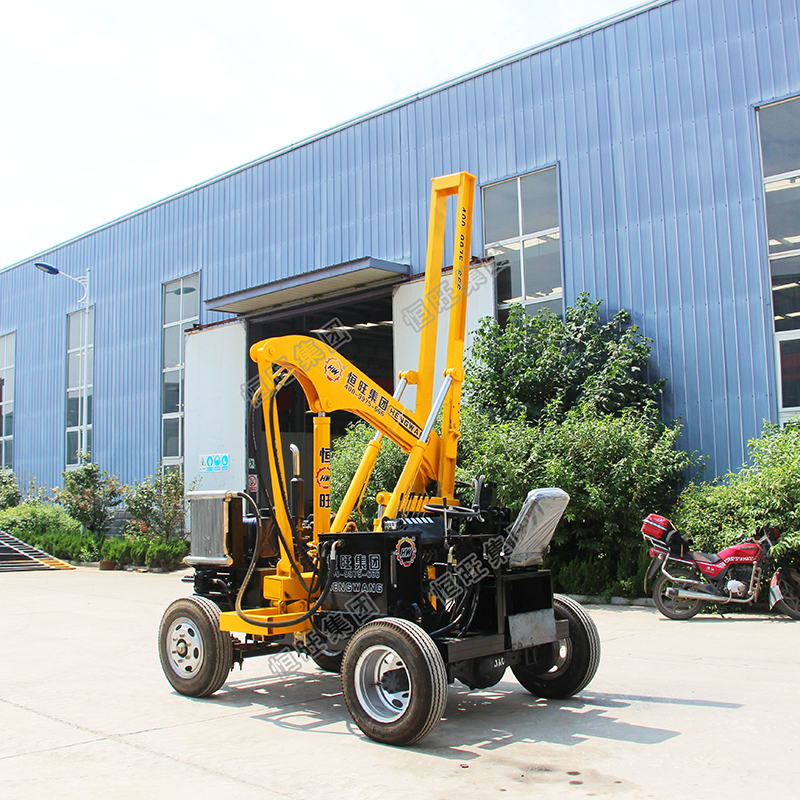

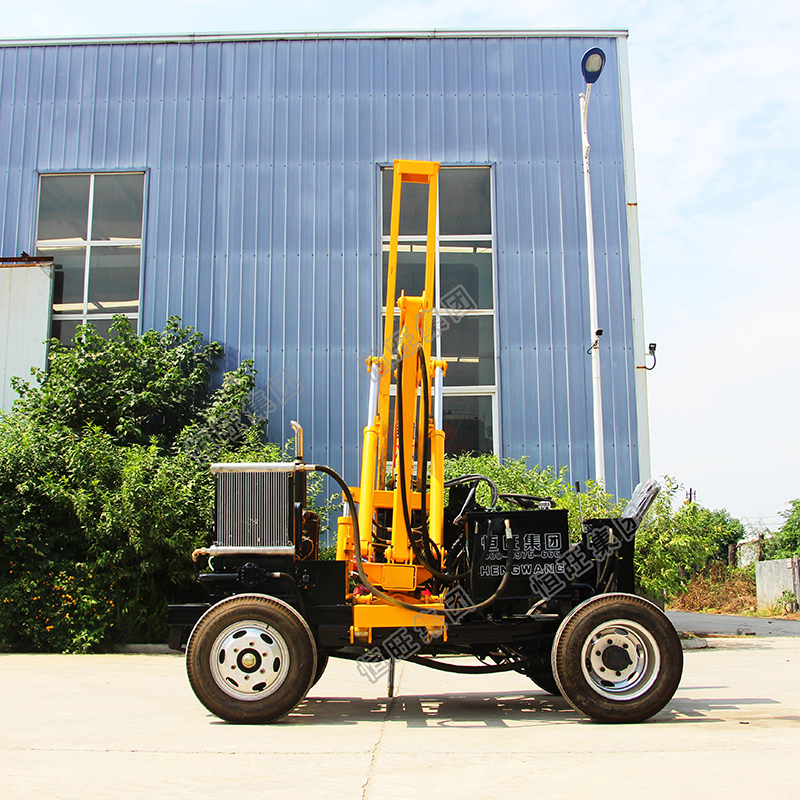

This is Simple small four-wheel guardrail pile driver, drilling pile driver integrated machine. We Hengwang is the professional manufacturer.
It is especially suitable for highway guardrail installation, maintenance and Field repair construction for repairs.
The characteristics: light driving, high piling precision, durability, energy saving and environmental protection.
Model HWH260
Power head: 65#
Engine power: 40KW
Drilling diameter: 0-250mm
Pile Max. Diameter: 50-260mm
Pile Max. height: 2800mm
Drilling depth: 2.5m
Overall Dimension: 3.3*2.2*3.6m
Machine weight: 3ton
Model HWH260ZQY with rain cover
Power head: DZ6H Compressor Model: 3.5m3
Engine power: 40KW
Drilling diameter: 0-250mm
Pile Max. Diameter: 50-260mm
Pile Max. height: 2800mm
Drilling depth: 2.5m
Overall Dimension: 3.3*2.2*3.6m
Machine weight: 3.8ton
Model HWH260ZQK
Diesel Power: 40KW
Hydraulic system flow (L/Min) 80-110
Rated system pressure (Mpa) 15
Track (M) 1620
Wheelbase (M) 2070
Dimensions (length * width * height) 2160 * 2900 * 2780
Weight (Kg) 2500
Piling device Hydraulic hammer weight ((Kg) 180
Hydraulic hammer strike frequency (Bpm) 500-900
Hydraulic hammer working flow (L/min) 40-70
Hydraulic hammer working pressure (Mpa) 11-14
Drilling device Power head weight (Kg) 140
Drilling diameter (Mm) φ120-φ200
Drilling speed (Mm/Min)
Impactor Impact Frequency (Bpm) 900-1200
Impactor working wind pressure (Mpa) 0.6-1.2
Impactor air consumption (m3/min) 7-13
Main Features
1) A new type of highway guardrail equipment.
2) It can complete all kinds of complex stratum of highway guardrail installation
3) Accurate positioning, fast moving, high precision,
4) Long service life, saving oil and environmental protection.
40KW economic drop hammer mini fence post vibrating pile driver
Professional manufacturer for more than 15 years.
Our products sell to Vietnam, Malaysia, South Korea and other southeast Asia, Africa and the Middle East, South America, North America, Europe etc, is popular among the masses of customers.
Machine Parts
Name: Power head
Exquisite workmanship, guarantee very nice quality
Highway guardrail piling vibrator machine tractor
Main Features
Name: Diesel engine
Special road can be transferred by itself, easy to operate, faster positioning speed
Machine Parts
Name: Portable four wheels type
Domestic famous engines, strong driving force, low fuel consumption, high economic benefits 12F+4R sliding sleeve shift.
Main Features
Name: Strong frame and body
Four-wheel brake, safe and convenient, increased operability
Stainless steel forging, very durable
Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
After-Sales Service
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
